Moxa TN-5308-8PoE-48-T [5/12] Mounting dimensions unit mm

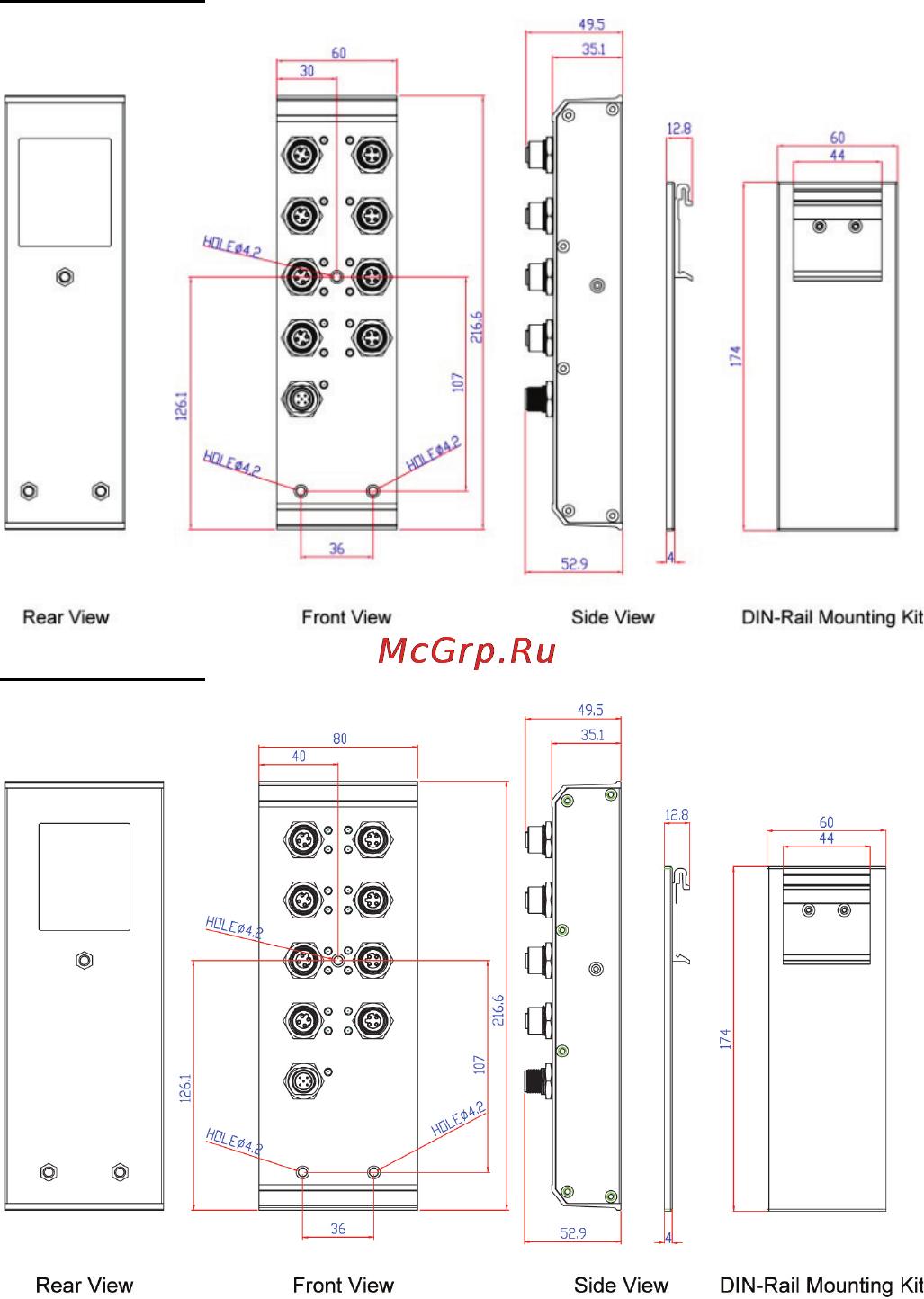

Mounting Dimensions (unit = mm)

TN-5308-4PoE

TN-5308-8PoE

Panel/Wall Mounting

Mounting the TN-5308-4/8PoE on the wall requires 3 screws. Please use

the 3 screws packed in the panel mounting kit.

STEP 1: Prepare the 3 screw holes on the wall according to the positions

of the 3 screw holes on the switch shown on the mounting dimension

STEP 2: Use one screw to go through the top-middle screw hole on the

switch and screw it into the wall.

STEP 3: Screw in the remaining 2 screws through the bottom-left and

bottom-right holes on the switch to the wall.
