Connecting the Power Supply

The M12 A-coded 5-pin male connector on the TN-5308-4/8PoE front

panel is used for the DC power input. You have to prepare a power cord

with M12 A-coded 5-pin female connector to connect the switch to the DC

power input.

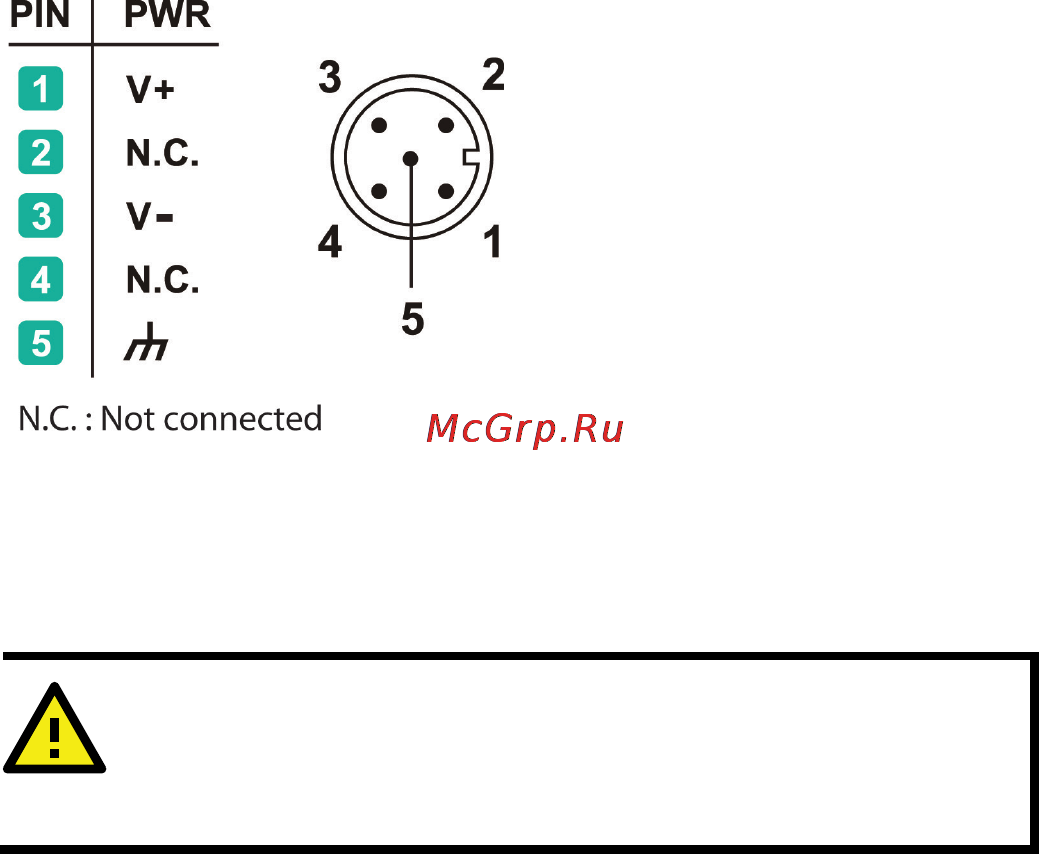

Pinouts for the power input port on the TN-5308-4/8PoE

STEP 1: Plug your power cord connector to the power input port of the

TN-5308-4/8PoE switch.

STEP 2: Screw the nut on your power cord connector to the power input

connector on the switch to ensure a tight connection.

ATTENTION

Before connecting the

TN-5308-4/8PoE to the DC power input,

make sure the DC power source voltage is stable.

Connecting the Data Lines

10/100BaseT(X) Ethernet Port Connection

All TN-5308-4/8PoE models have 8 10/100BaseT(X) Ethernet ports

(4-pin shielded M12 connectors with D coding). The 10/100TX ports

located on the TN-5308-4/8PoE’s front panel are used to connect to

Ethernet-enabled devices. Most users configure these ports for Auto

MDI/MDI-X mode, in which case the port’s pinouts are adjusted

automatically depending on the type of Ethernet cable used

(straight-through or cross-over), and the type of device (NIC-type or

HUB/Switch-type) connected to the port.

In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.
