MartinLogan Dynamo [14/24] Installing dynamo in a cabinet

14 Placement

When placing the Dynamo inside of a cabinet it is recom-

mended that there be a minimum of three inches of open

space between the cabinet and the front and back sides

(see figure 15).

When installing the Dynamo in a cabinet it is recommended

that the subwoofer be converted to a front firing configuration.

Please note, when the Dynamo is in a front firing configuration

90° RCA adaptors may be required to make signal connections.

Two 90° RCA adaptors are included with the Dynamo subwoofer.

Converting Dynamo to Front Firing Configuration:

Prepare a flat surface with a blanket to protect the Dynamo's

finish. Unplug signal and power connections. Turn the

Dynamo upside down. Gently lift and remove the Dynamo

base (see figure 16).

Rotate the cabinet 90°, positioning the backplate on top

(see figure 17).

3 Place the Dynamo base over the backplate and gently

push it into place. Install the grill cover onto the front of

the Dynamo (see figure 18). Please note, when the Dynamo

is used in a down firing configuration 90° RCA adaptors

may be required to make signal connections. Two 90°

RCA adaptors are included with the Dynamo subwoofer.

Installing Dynamo in a Cabinet

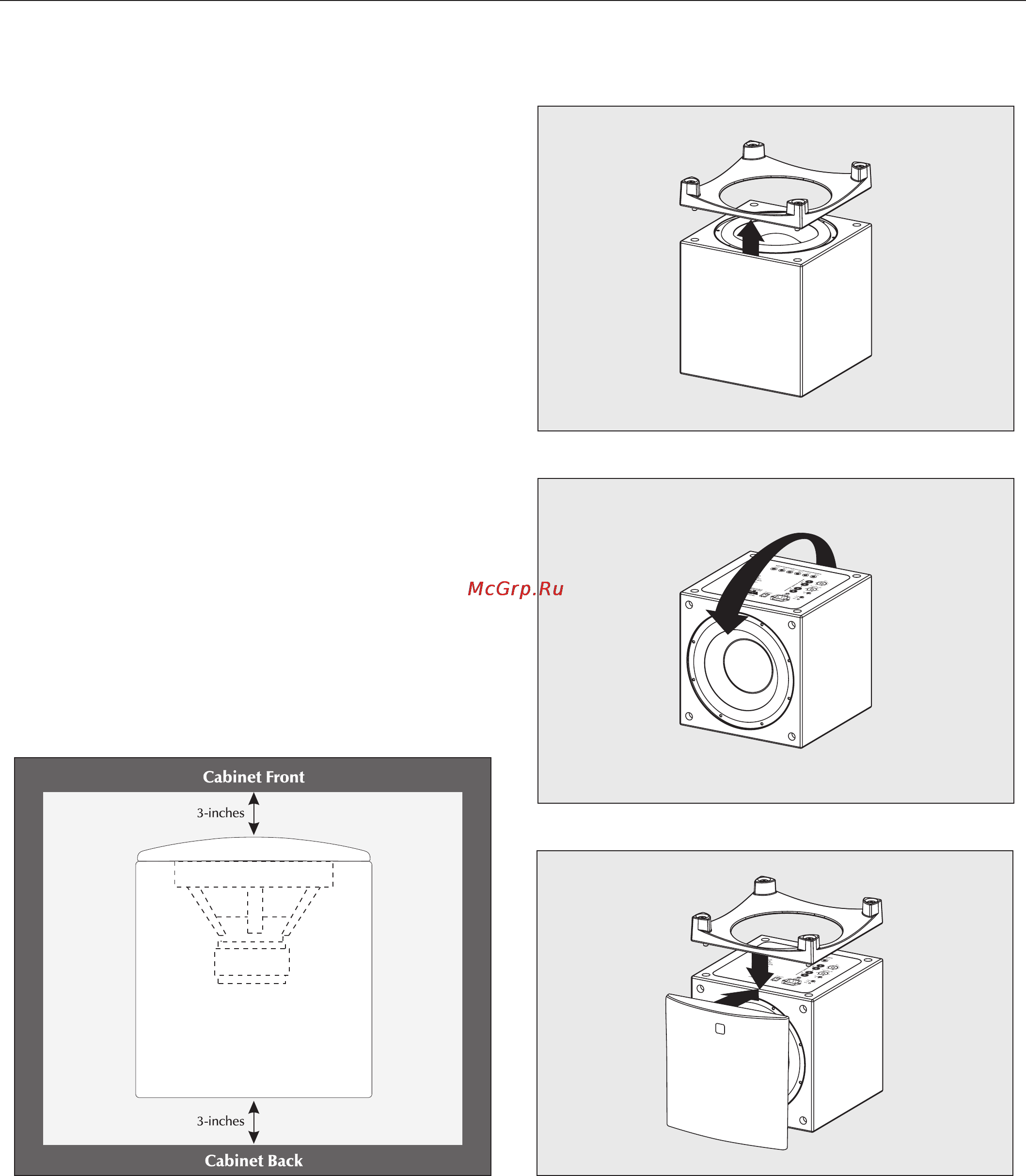

Figure 15. Placing the Dynamo in a cabinet requires a minimum of three

inches of open space on the front and back.

Figure 16. Step 1—Converting the Dynamo to a front firing configuration.

Figure 17. Step 2—Converting the Dynamo to a front firing configuration.

Figure 18. Step 3—Converting the Dynamo to a front firing configuration.
