MartinLogan Dynamo [9/24] Channel mode using speaker level inputs

This setup is recommended if your Dynamo will be used in

a 2-channel only system with full-range front loudspeakers.

When a signal is connected to the Dynamo’s Left/Right

Inputs, the Dynamo’s internal low pass filter is active.

Signal Connection (see figure 8):

1 Connect the left and right outputs of your amplifier to

the left and right speaker level (high level) inputs of the

Dynamo using quality speaker cable.

If your amplifier only has one set of outputs you may

connect your amplifier to your speakers as normal and

run an additional set of cables from your speakers to the

Dynamo’s left and right speaker level (high level) inputs.

It is also possible to connect the left and right outputs

of your amplifier to the left and right speaker level (high

level) inputs of the Dynamo and run an additional set

of cables from your Dynamo to the speakers.

Recommended Control Settings (see figure 9):

Set the low-pass filter switch to the closest option equal

70% of your loudspeakers lowest frequency response.

2 While playing music with bass content, turn the level con

trol up until the music has deep extended bass, being

careful to avoid levels that become overwhelming.

3 Try the phase control in different settings until the best

blending is obtained. If you are using the Dynamo to aug

ment other MartinLogan products, we suggest you start

with the phase set at 90°.

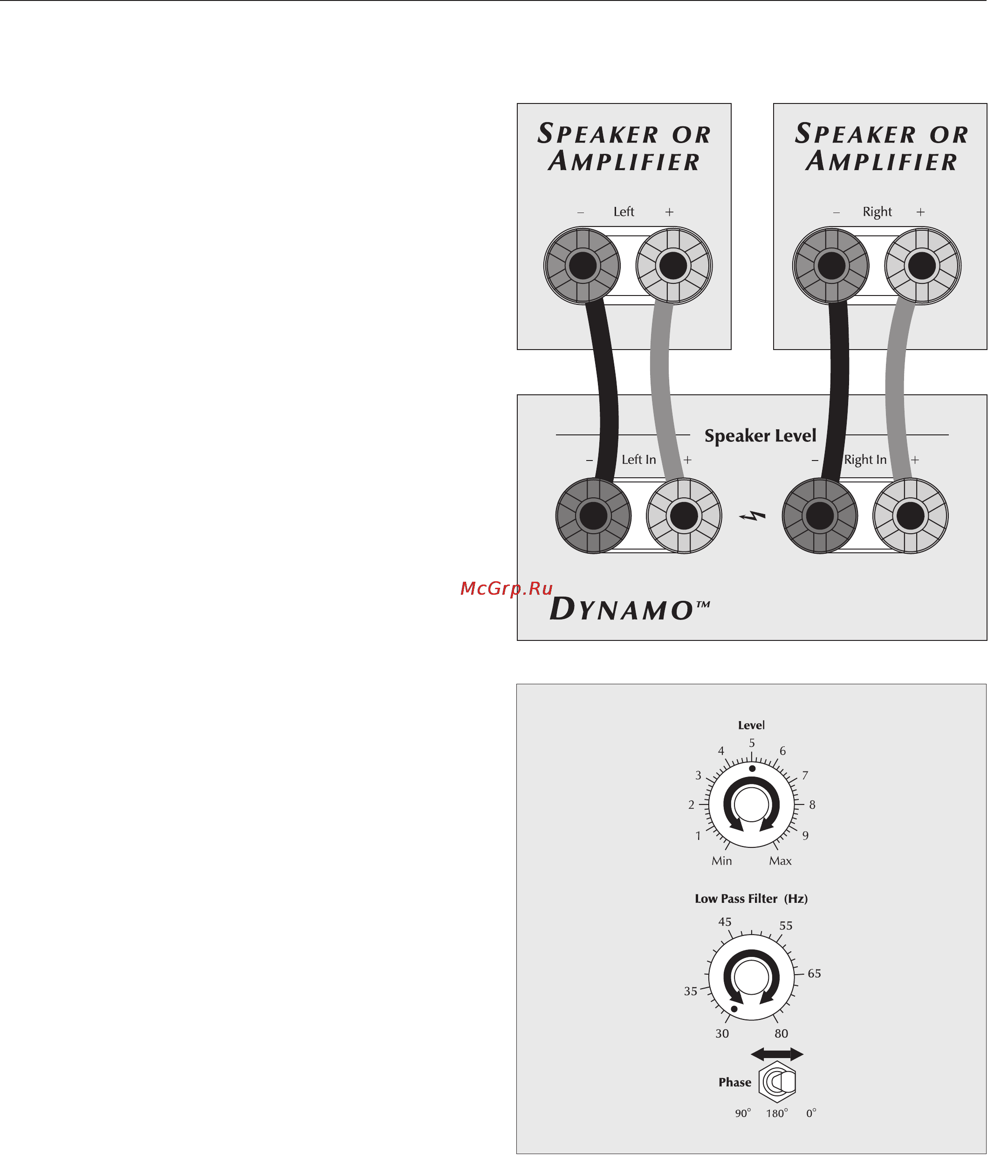

Figure 9. Control settings for 2-channel mode using speaker level inputs.

2-Channel Mode Using Speaker Level Inputs

Figure 8. Signal connection for 2-channel mode using speaker level inputs.

Connections and Control Settings 9
