CONNECTIONS AND CONTROL SETTINGS

MartinLogan's engineering and design team developed the

Dynamo for easy setup and system integration. Before

beginning to connect your Dynamo, please review the

controls discussed in the last section. An understanding

of these will help speed you along as you connect and

integrate your Dynamo with your system. All signal

connections are done at the signal input section on

the rear connections panel of the Dynamo. Make certain

that all of your connections are tight.

WARNING! Turn your Dynamo subwoofer to

standby before making or breaking any signal

connections!

2-Channel Mode

This setup is recommended if your Dynamo will be used in

a 2-channel system with main speakers playing full range.

When a signal is connected to the Dynamo’s left/right

inputs, the Dynamo’s internal low pass filter is active.

Signal Connection (see figure 2):

1 Connect the left and right outputs of your preamplifier

to the left and right inputs of the Dynamo using quality

RCA interconnects. If your preamplifier only has one set

of outputs you may need to obtain Y adapters from your

dealer.

Recommended Control Settings (see figure 3):

Set the low-pass filter switch to the closest option equal

70% of your loudspeakers lowest frequency response.

2 While playing music with bass content, turn the level con

trol up until the music has deep extended bass, being

careful to avoid levels that become overwhelming.

3 Try the phase control in different settings until the best

blending is obtained. If you are using the Dynamo to

augment other MartinLogan products, we suggest you

start with the phase set at 90°.

Before Connecting the Dynamo

6 Connections and Control Settings

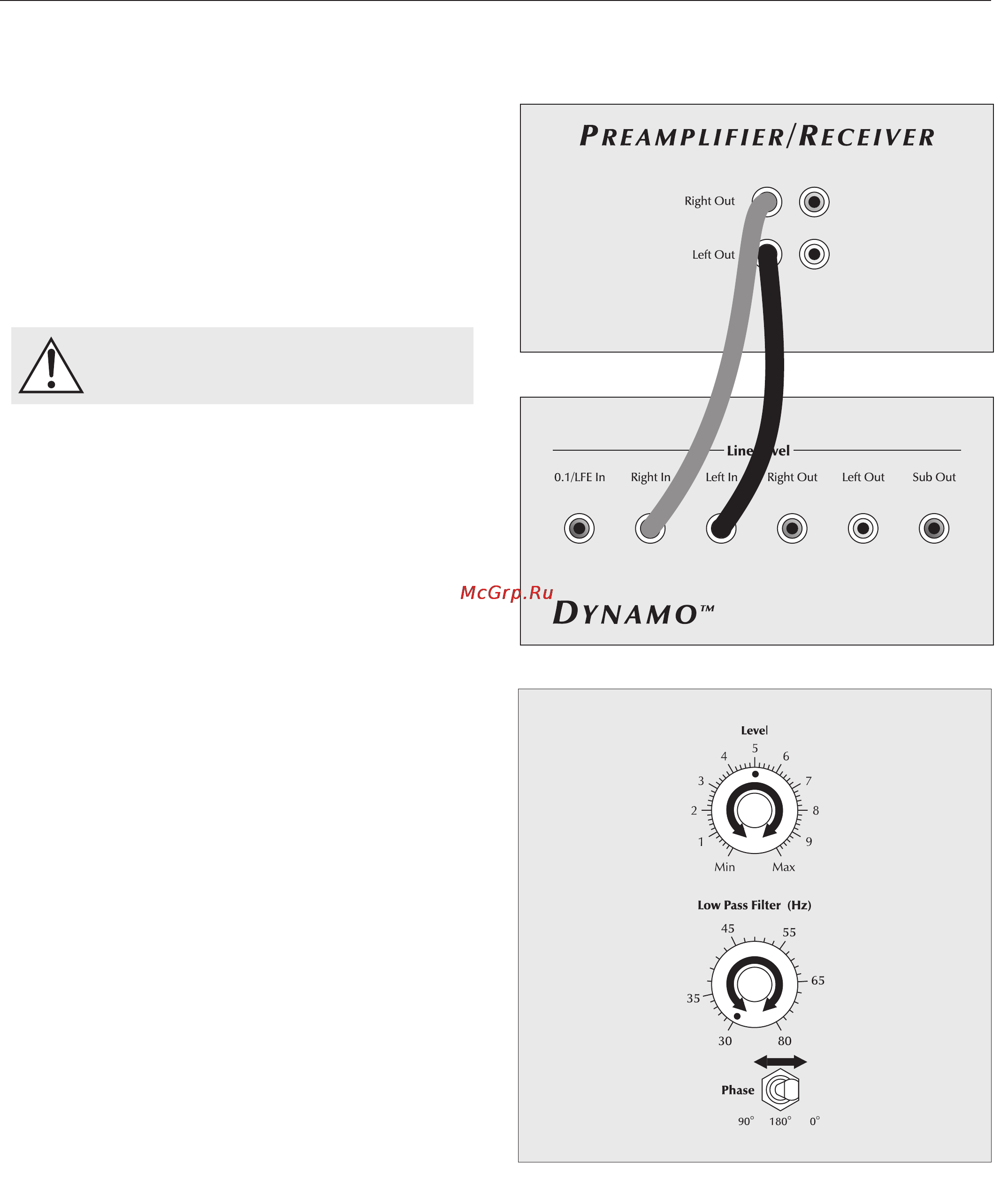

Figure 2. Signal connection for 2-channel mode.

Figure 3. Control settings for 2-channel mode.
