Moxa IMC-21A-S-SC [4/12] Mounting dimensions

- 4 -

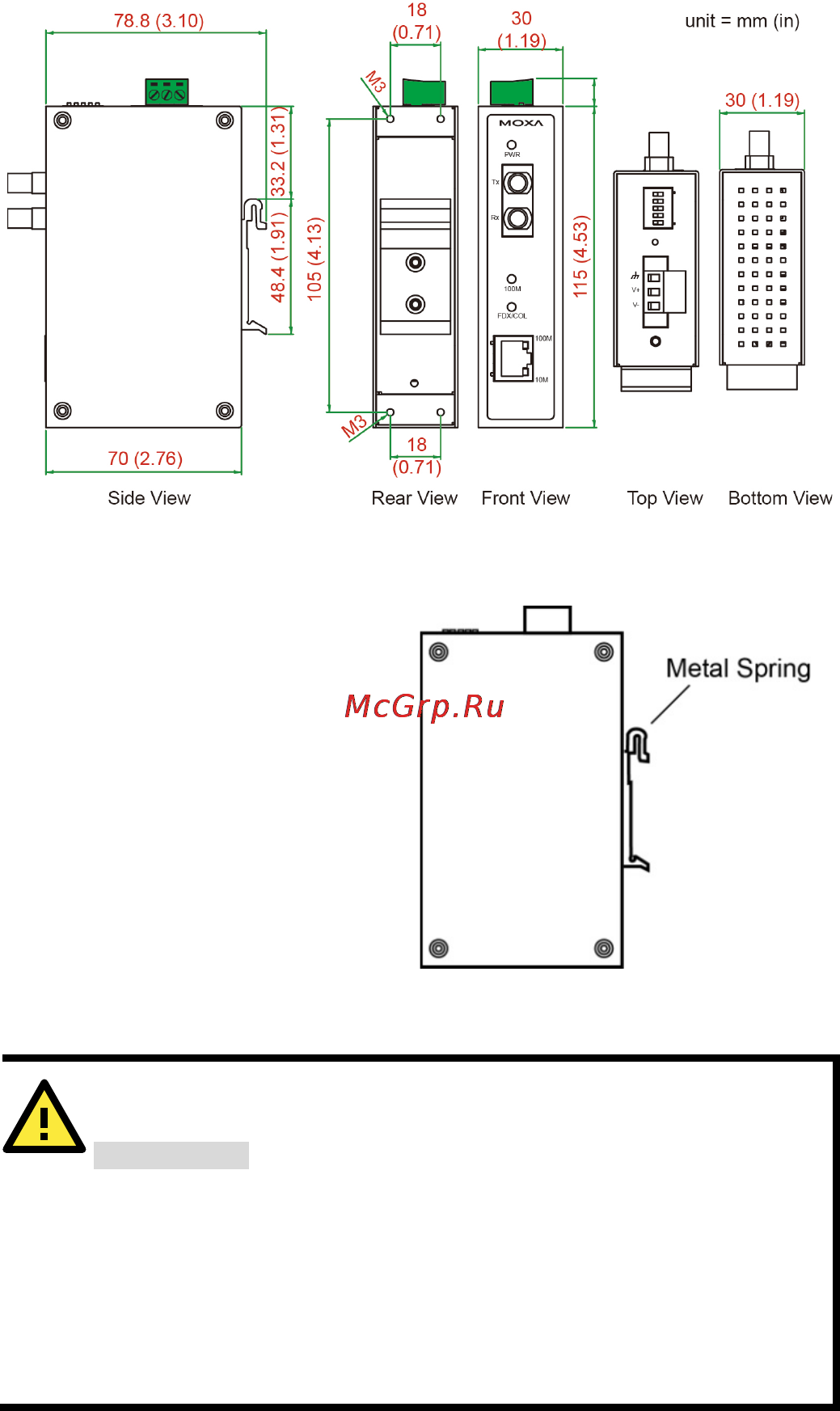

Mounting Dimensions

DIN-Rail Mounting

The aluminum DIN-rail attachment

plate should be fixed to the back

panel of the IMC

-21A when you

take it out of the box. If you need to

reattach the DIN

-rail attachment

plate to the IMC

-21A, make sure

the stiff metal spring is situated

towards the top.

Wiring Requirements

ATTENTION

Safety First!

•

Be sure to disconnect the power cord before installing and/or

wiring your Moxa IMC.

•

Calculate the maximum possible current in each power wire

and common wire. Observe all electrical codes dictating

the

maximum current allowed for each wire size.

•

If the current goes above the allowed maximum

, the wiring

could overheat, causing serious damage to your equipment.
