- 9 -

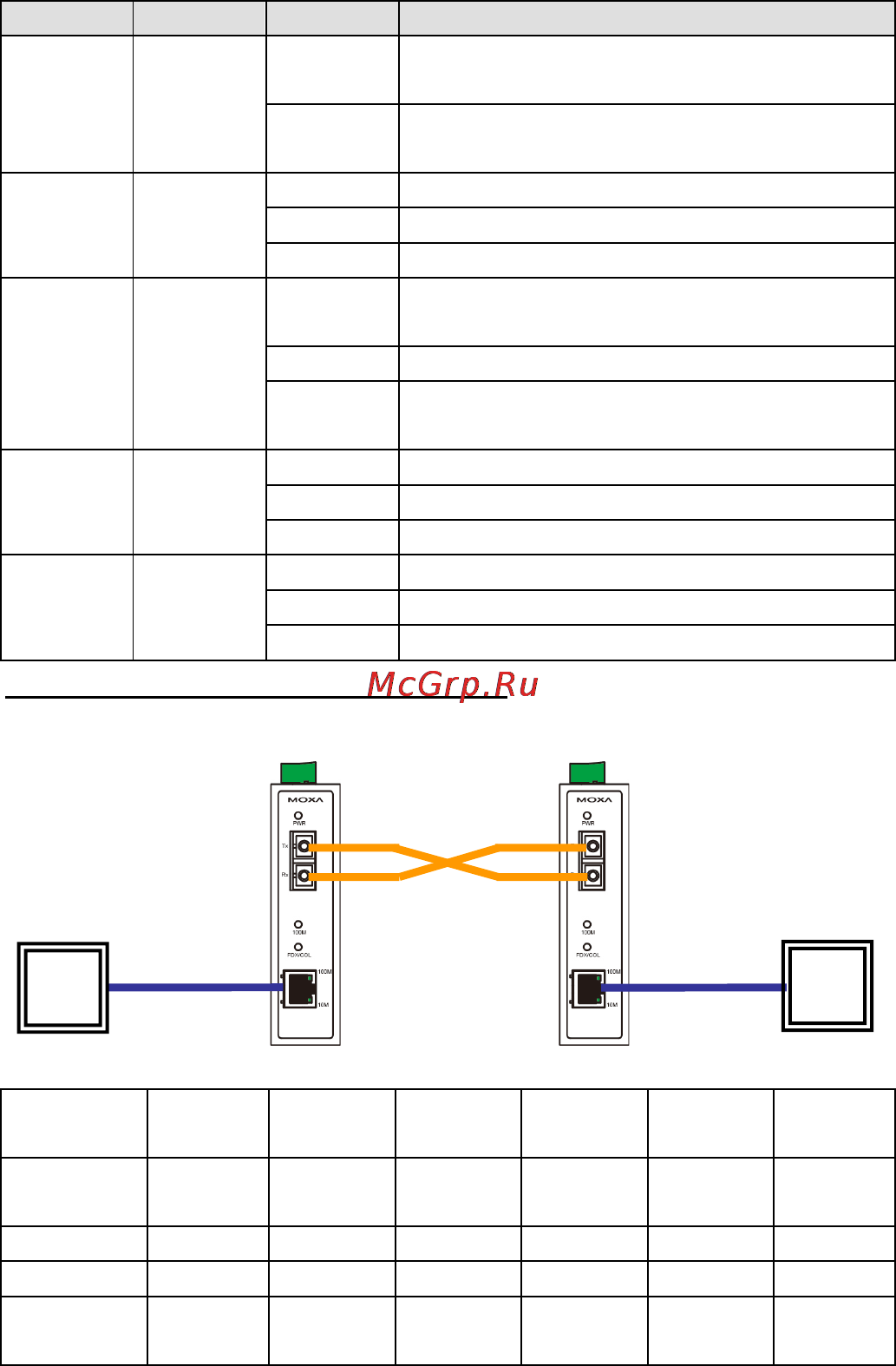

LED Indicators
The front panel of the Moxa IMC contains several LED indicators. The
function of each LED is described in the table below.
LED
Color
State
Description
PWR AMBER
On
Power is being supplied to the power
input.
Off
Power is not being supplied to the power
input.
100M
(FX)
GREEN
On
FX port’s 100 Mbps link is active.
Blinking
Data is being transmitted at 100 Mbps.
Off
FX Port’s 100 Mbps link is inactive.
FDX/COL
(FX)
GREEN
On
100BaseFX port is transmitting in
full-duplex mode.
Blinking
A data collision has occurred.
Off
100BaseFX port is transmitting in
half-duplex mode.
100M
(TP)
GREEN
On
TP port’s 100 Mbps link is active.
Blinking
Data is being transmitted at 100 Mbps.
Off
TP port’s 100 Mbps link is inactive.
10M
(TP)
GREEN
On
TP port’s 10 Mbps link is active.
Blinking
Data is being transmitted at 10 Mbps.
Off
TP port’s 10 Mbps link is inactive.
LFP: DIP switch is set to “LFP” mode
Device 1
TP LED
DUTA TP
LNK LED
DUTA FO
LED
DUTB FO
LED
DUTB TP
LNK LED
Device 2
TP LED
TP1
Faulted
OFF OFF OFF OFF OFF OFF
F1 Faulted
OFF
OFF
OFF
OFF
OFF
OFF
F2 Faulted
OFF
OFF
OFF
OFF
OFF
OFF
TP2
Faulted
OFF OFF OFF OFF OFF OFF
F1
F2
DUTA
DUTB
TP1
TP2
Device1
Device2
