- 6 -

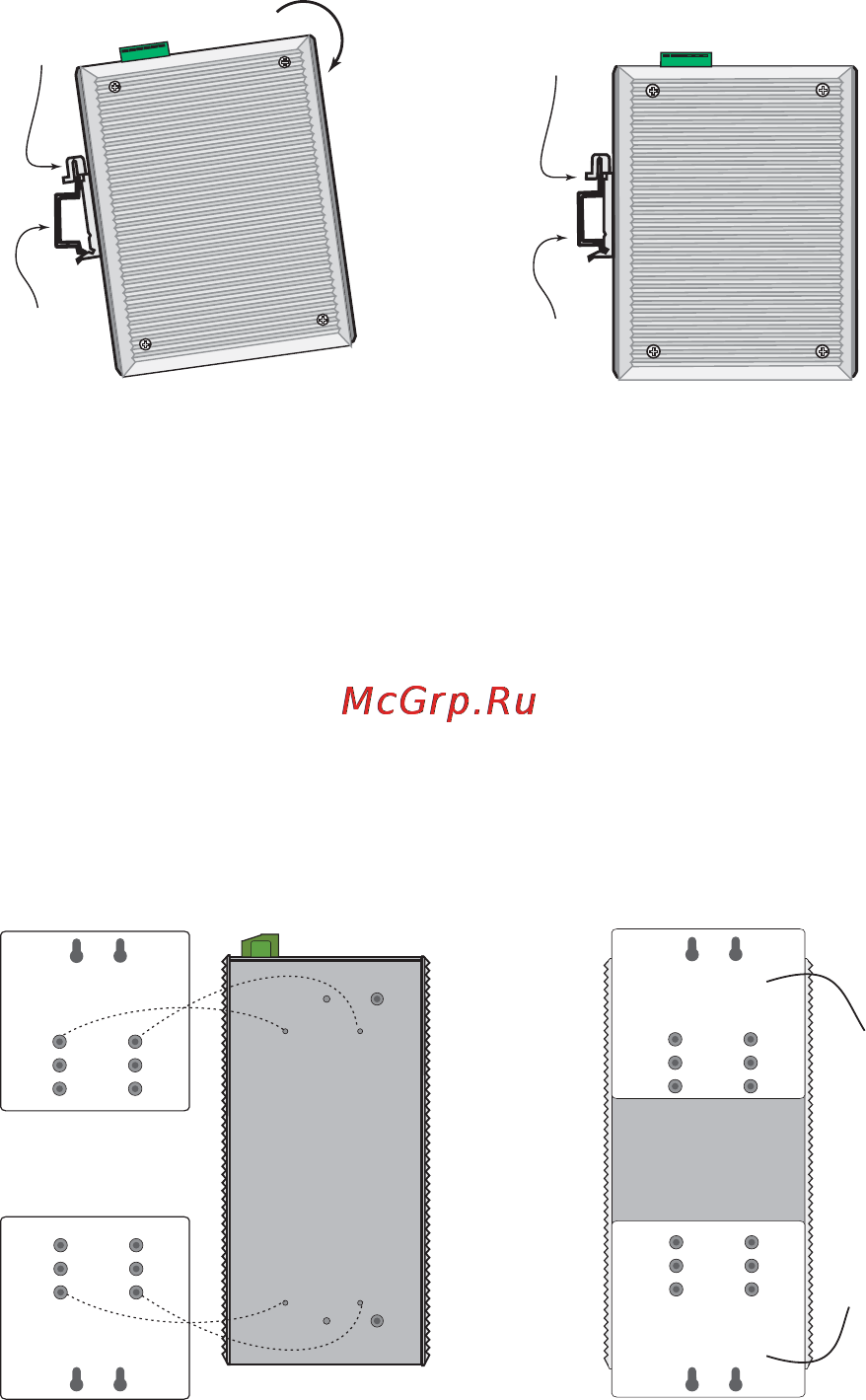

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should be fixed to the back panel of

the IMC when you take it out of the box. If you need to reattach the DIN-Rail

attachment plate to the IMC, make sure the stiff metal spring is situated

towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN-Rail into the

slot just below the stiff metal spring.

STEP 2:

The DIN-Rail attachment unit will

snap into place as shown below.

metal

spring

DIN-Rail

metal

spring

DIN-Rail

To remove the Moxa Industrial Media Converter from the DIN-Rail, simply

reverse Steps 1 and 2 above.

Wall Mounting (Optional)

For some applications, you will find it convenient to mount the Moxa PoE

Media Converter on the wall, as illustrated below.

STEP 1:

Remove the aluminum DIN-Rail attachment plate from the Moxa PoE Media

Converter, and then attach the wall mount plates, as shown in the diagrams

below.

⇒

Top

plate

Bottom

plate
