Wiring the Redundant Power Inputs

The top five contacts of the 8-contact terminal block connector on the IMC’s

top panel are used for the IMC’s two DC inputs. Top and front views of one of

the terminal block connectors are shown here.

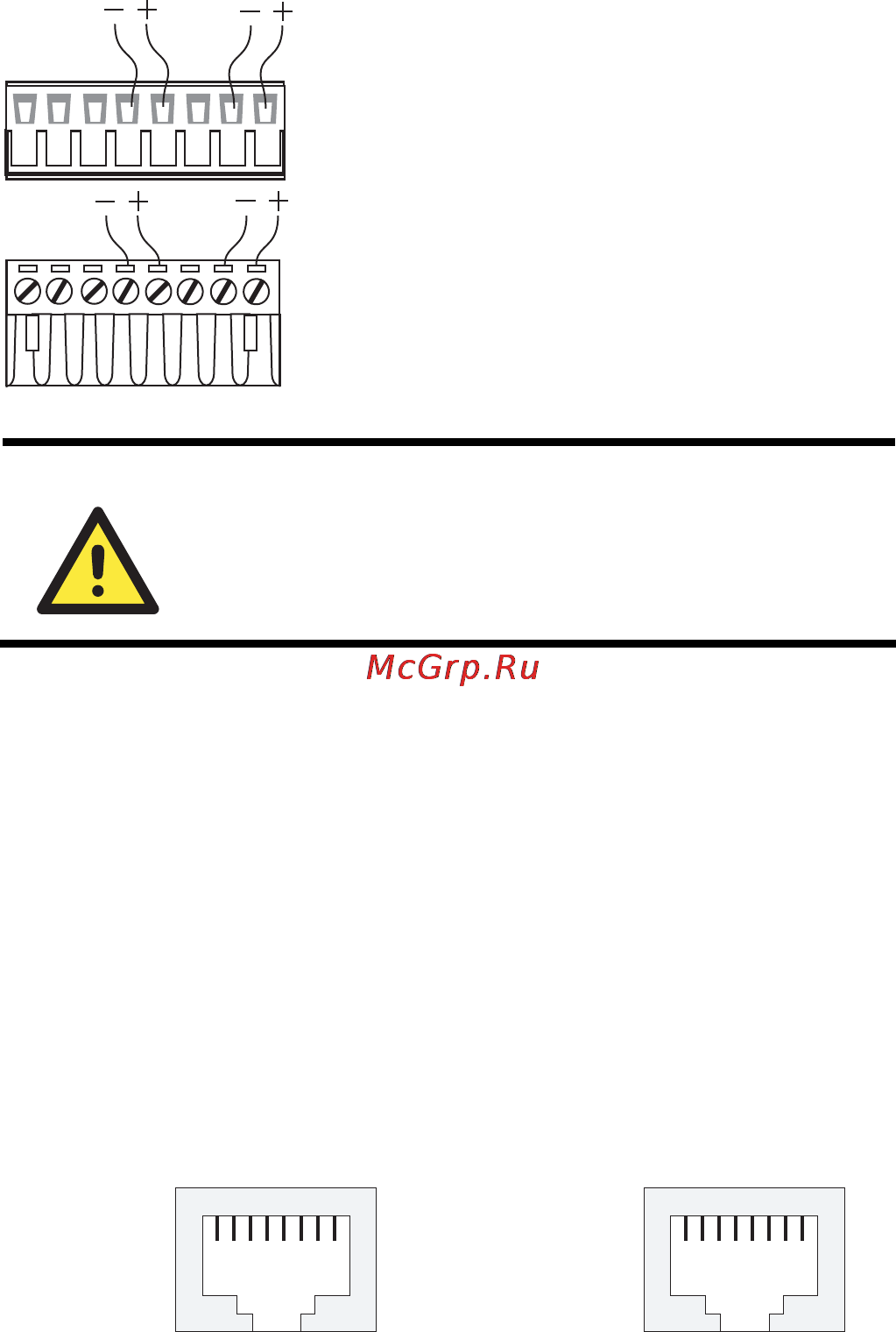

Top View

Front View

STEP 1: Insert the negative/positive DC wires

into the V-/V+ terminals.

STEP 2: To keep the DC wires from pulling

loose, use a small flat-blade screwdriver to

tighten the wire-clamp screws on the front of the

terminal block connector.

STEP 3: Insert the plastic terminal block

connector prongs into the terminal block receptor,

which is located on the IMC’s top panel.

ATTENTION

Before connecting the IMC to DC power inputs, make sure

the DC power source voltage is stable.

Communication Connections

IMC-P101 models have one 10/100BaseT(X) Ethernet port, and one

100BaseFX (SC or ST type connector) fiber port.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) Ethernet port located on the IMC’s front panel is used to

connect to Ethernet-enabled devices.

Illustrated below are pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports, and also cable wiring diagrams for straight-through

and cross-over Ethernet cables.

RJ45 (8-pin, MDI) Port Pinouts RJ45 (8-pin, MDI-X) Port Pinouts

Pin Signal

Tx+

Tx-

Rx+

Rx-

Pin Signal

Rx+

Rx-

Tx+

Tx-
