Communication Connections

The PTC-101-M12 has one 10/100BaseT(X) Ethernet port, and one

100BaseFX (SC or ST type connector) fiber port.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the PTC-101-M12’s front panel are

used to connect to Ethernet-enabled devices.

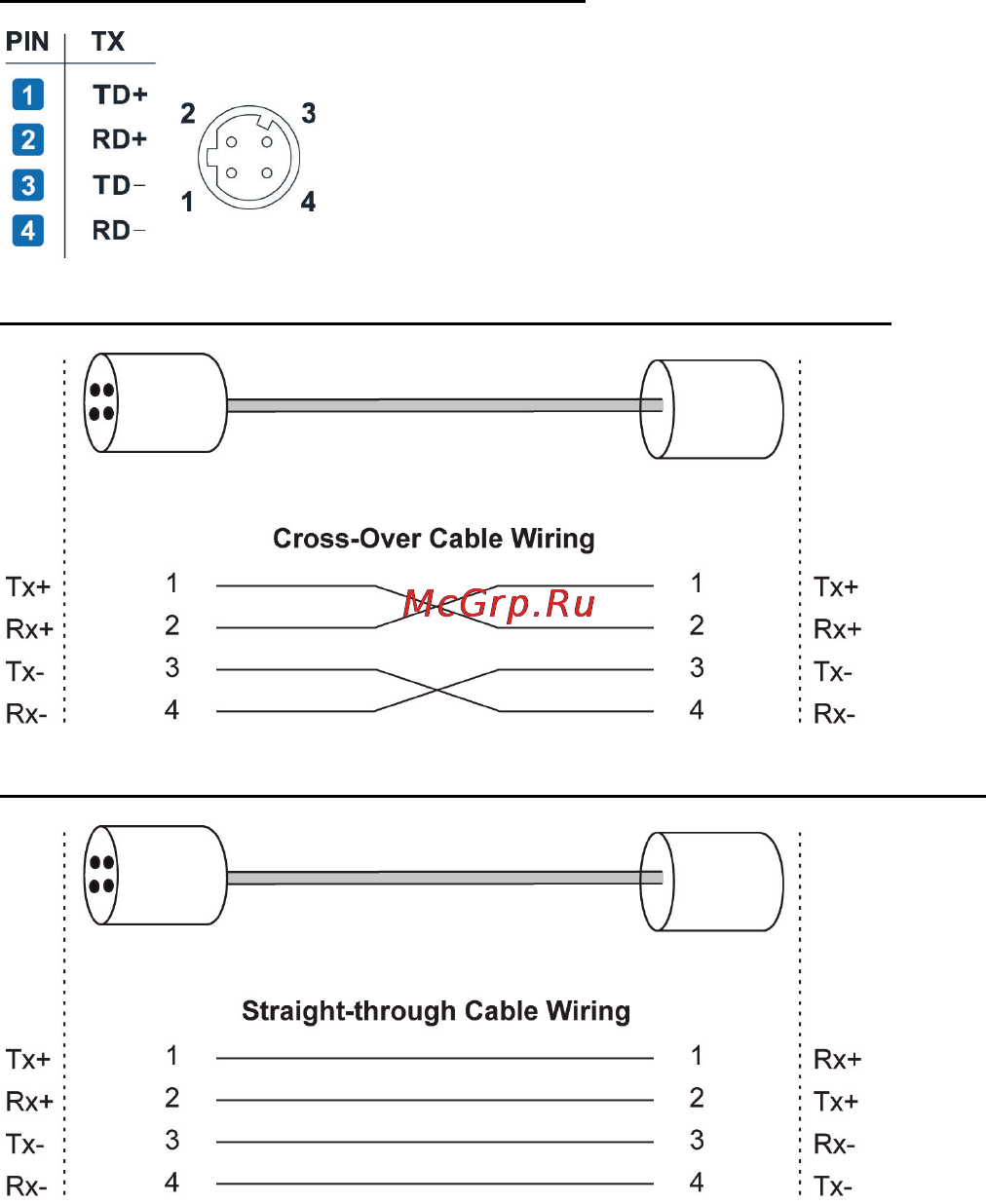

Pinouts for the 10/100BaseT(X) Ports

M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring

M12 (4-pin, M) to M12 (4-pin, M) Straight-Through Cable Wiring

Auto MDI/MDI-X Connection

The Auto MDI/MDI-X function allows users to connect PTC-101-M12’s

10/100BaseTX ports to any kind of Ethernet device, without needing to

pay attention to the type of Ethernet cable being used for the connection.

This means that you can use either a straight-through cable or cross-over

cable to connect the PTC-101-M12 to Ethernet devices.
