- 8 -

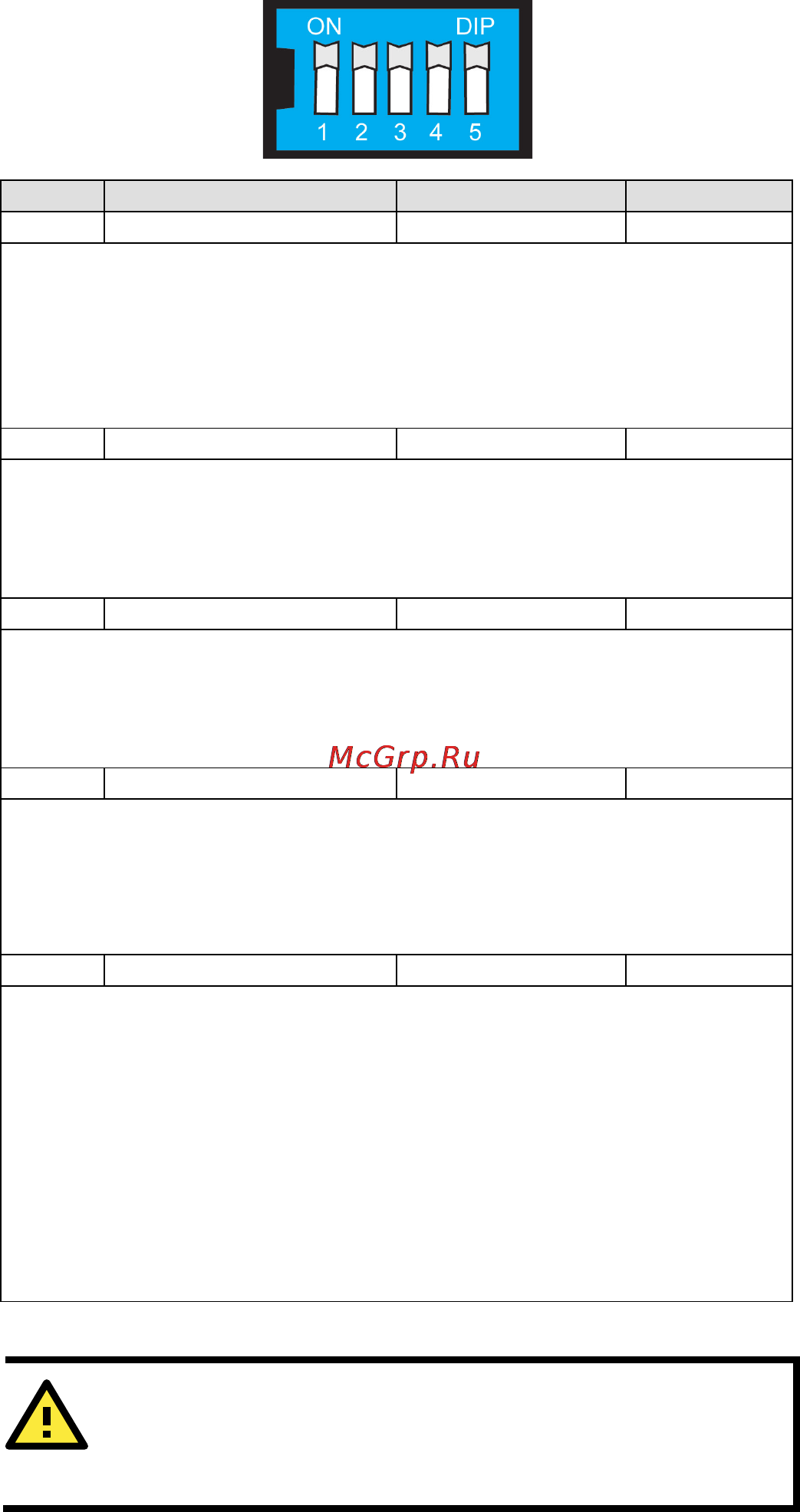

DIP Switch Settings
DIP No.
Function
ON
OFF
1
Auto Negotiation
Enable
Disable
“ON”:
Enables the “Auto Negotiation” function. The speed and duplex
states for each port link segment are automatically configured
using the
highest performance interoperation mode.
“OFF”:
Disables the “Auto Negotiation” function. The speed and duplex
states depend on the manual setting configuration.
2
Force TP Speed
100 Mbps
10 Mbps
(Only when Auto Negotiation is disabled)
“ON”:
Forces
the Ethernet port to use 100 Mbps transmission.
“OFF”:
Forces the Ethernet port to use 10 Mbps transmission.
3
Force TP Duplex
Full Duplex
Half Duplex
(Only when Auto Negotiation is disabled)
“ON”:
Forces the Ethernet port to use Full Duplex.
“OFF”:
Forces the Ethernet port to use Half Duplex.
4
Link Fault Pass Through
Enable
Disable
“ON”:
Enables “Link Fault Pass Through.” The link status on the TX port
will inform the FX port of the same device and vice versa.
“OFF”:
Disables “Link Fault Pass Through.” The link status on the TX port
will not inform the FX port.
5
Operating Mode
Store-and-Forward
Pass Through
“ON”:
Selects “Store
-and-Forward” mode. Begins to forward a packets
to a destination port after an entire packet is received. The latency
depends on the packet length.
“OFF”:
Selects “Pass Through” mode. Operates with the minimum
latency. Both transceivers are interconnected via internal MIIs
and the internal switch
engine and data buffer are not used.
Note:
With “Pass Through” mode enabled, the Ethernet port and fiber
port should transmit at 100 Mbps, which is equivalent to full
duplex mode.
Default DIP settings are all in the ON position.
ATTENTION
After changing the DIP switch setting, you will need to power off
and then power on the PTC-101-M12 to activate the new setting.
