EN 50155 Wireless LAN
2
www.moxa.com
802.11a:
Typ. 26±1.5 dBm @ 6 to 24 Mbps, Typ. 25±1.5 dBm @ 36 Mbps, Typ.
24±1.5 dBm @ 48 Mbps, Typ. 23±1.5 dBm @ 54 Mbps
RX Sensitivity:
802.11b:
-97dBm@1Mbps,-94dBm@2Mbps,-92dBm@5.5Mbps,-90
dBm @ 11 Mbps
802.11g:
-93dBm@6Mbps,-91dBm@9Mbps,-90dBm@12Mbps,-88
dBm @ 18 Mbps, -84 dBm @ 24 Mbps, -80 dBm @ 36 Mbps, -76 dBm
@ 48 Mbps, -74 dBm @ 54 Mbps
802.11a:
-90dBm@6Mbps,-89dBm@9Mbps,-89dBm@12Mbps,-85
dBm@18Mbps,-83dBm@24Mbps,-79dBm@36Mbps,-75dBm
@ 48 Mbps, -74 dBm @ 54 Mbps
Protocol Support
General Protocols: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP,
TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
Interface
Connector for External Antennas:
AWK-3121-SSC-RTG:RP-SMA(female)
AWK-3121-M12-RTGandAWK-3121-M12-HP-RTG:QMA(female)
Fiber Ports: 1, 100BaseFX port (SC connector, AWK-3121-SSC-RTG
only)
M12 Ports: 1, 10/100BaseT(X) auto negotiation speed, D-coded, F/H
duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG
only)
Console Port: RS-232 (RJ45-type)
LED Indicators: PWR1, PWR2, PoE*, FAULT, STATE, signal strength,
CLIENTMODE,WLAN,10/100(M12port),100M(berport)
*PoE is only available for the AWK-3121-M12-RTG and AWK-3121-M12-HP-RTG
Alarm Contact: 1 relay output with current carrying capacity of 1 A @
24 VDC
Digital Inputs: 2 electrically isolated inputs
•+13to+30Vforstate“1”
•+3to-30Vforstate“0”
•Max.inputcurrent:8mA
Default Antennas*:
2 dual-band omni-directional antennas, 2 dBi, RP-SMA (male)
*OnlyavailablewiththeAWK-3121-SSC-RTGmodels.
Optical Fiber*
100BaseFX
Single Mode
Wavelength
1310 nm
Max. TX
0 dBm
Min. TX
-5 dBm
RX Sensitivity
-34 dBm
Link Budget
29dB
Typical Distance
40 km
*
Saturation
-3 dBm
*OnlyavailableforAWK-3121-SSCmodels
Physical Characteristics
Housing: Metal, IP30 protection
Weight: 850 g (1.87 lb)
Dimensions: 53 x 135 x 105 mm (2.08 x 5.31 x 4.13 in)
Installation: DIN-rail mounting, wall mounting (optional)
Environmental Limits
Operating Temperature:
StandardModels:-25to60°C(-13to140°F)
WideTemp.Models:-40to75°C(-40to167°F)
Storage Temperature:-40to85°C(-40to185°F)
Ambient Relative Humidity:5%to95%(non-condensing)
Power Requirements
Input Voltage: 12 to 48 VDC, redundant dual DC power inputs or 48
VDC Power-over-Ethernet (IEEE 802.3af compliant)
Input Current: 0.5 A @ 12 VDC; 0.2 A @ 48 VDC
Connector: 10-pin removable terminal block
Reverse Polarity Protection: Present
Standards and Certifications
Safety:UL60950-1,IEC60950-1(CB)
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class B
EMS:
IEC61000-4-2ESD:Contact:8kV;Air:15kV
IEC61000-4-3RS:80MHzto1GHz:20V/m
IEC61000-4-4EFT:Power:2kV;Signal:2kV
IEC61000-4-5Surge:Power:2kV;Signal:2kV
IEC61000-4-6CS:10V
IEC 61000-4-8
Radio:EN301489-1/17,EN300328,EN301893,FCCIDSLE-
WAPA003 (AWK-3121-M12-RTG), FCC ID SLE-WAPA004 (AWK-3121-
M12-HP-RTG)
Rail Traffic: EN 50155*, EN45545-2, EN 50121-4
*Complies with a portion of EN 50155 specifications.
MTBF (mean time between failures)
Time:
AWK-3121-M12-RTG:480,831hrs
AWK-3121-M12-HP-RTG:447,861hrs
AWK-3121-SSC-RTG:445,913hrs
Standard: Telcordia SR332
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty

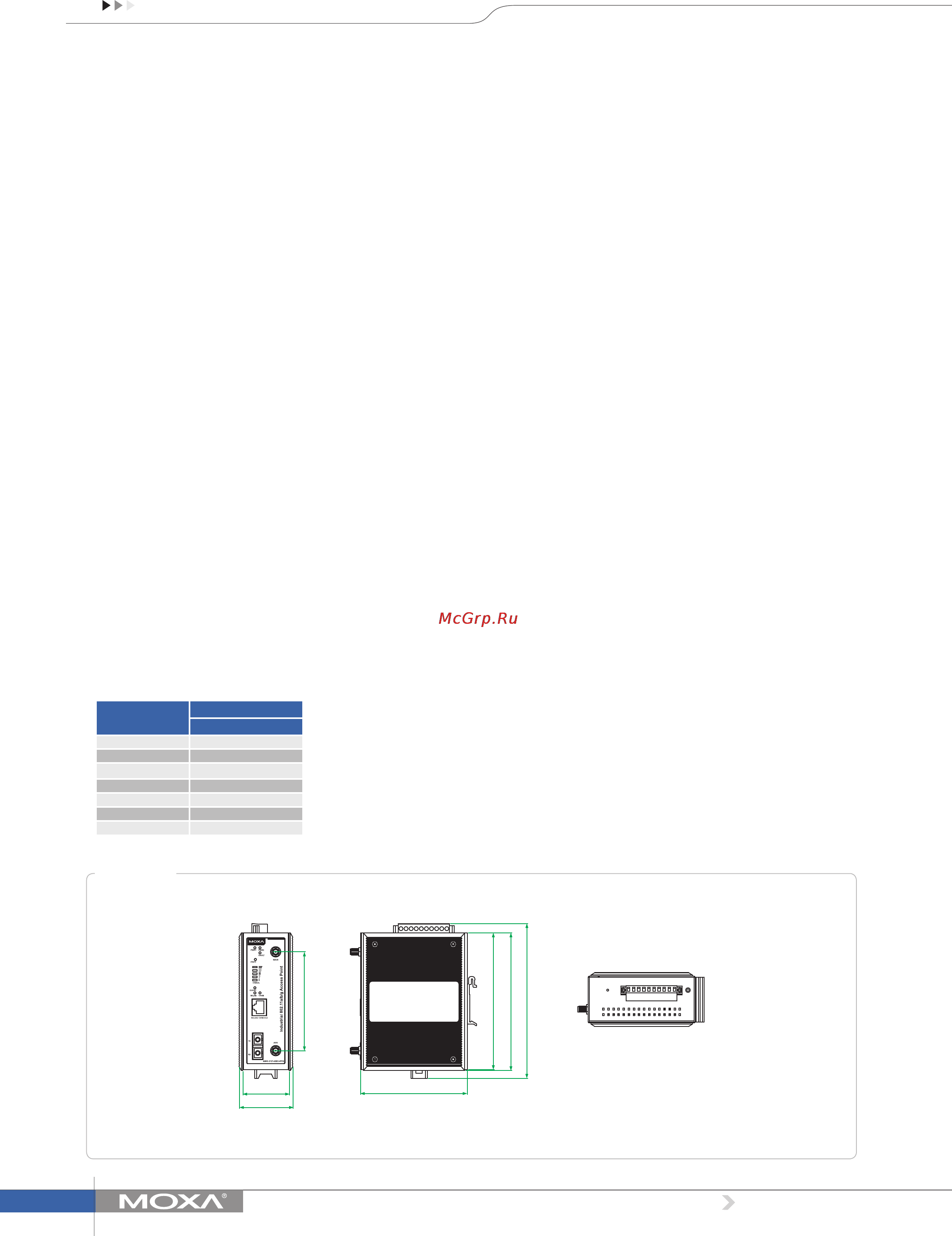

Unit:mm(inch)
Dimensions
Front View
AWK-3121-SSC-RTG
Side View Top View
105 (4.13)
134 (5.28)
135 (5.31)
46 (1.80)
53 (2.08)
152 (5.98)
97 (3.82)
