Moxa TAP-6226-TC-EU-T [5/12] Dimensions unit mm

- 5 -

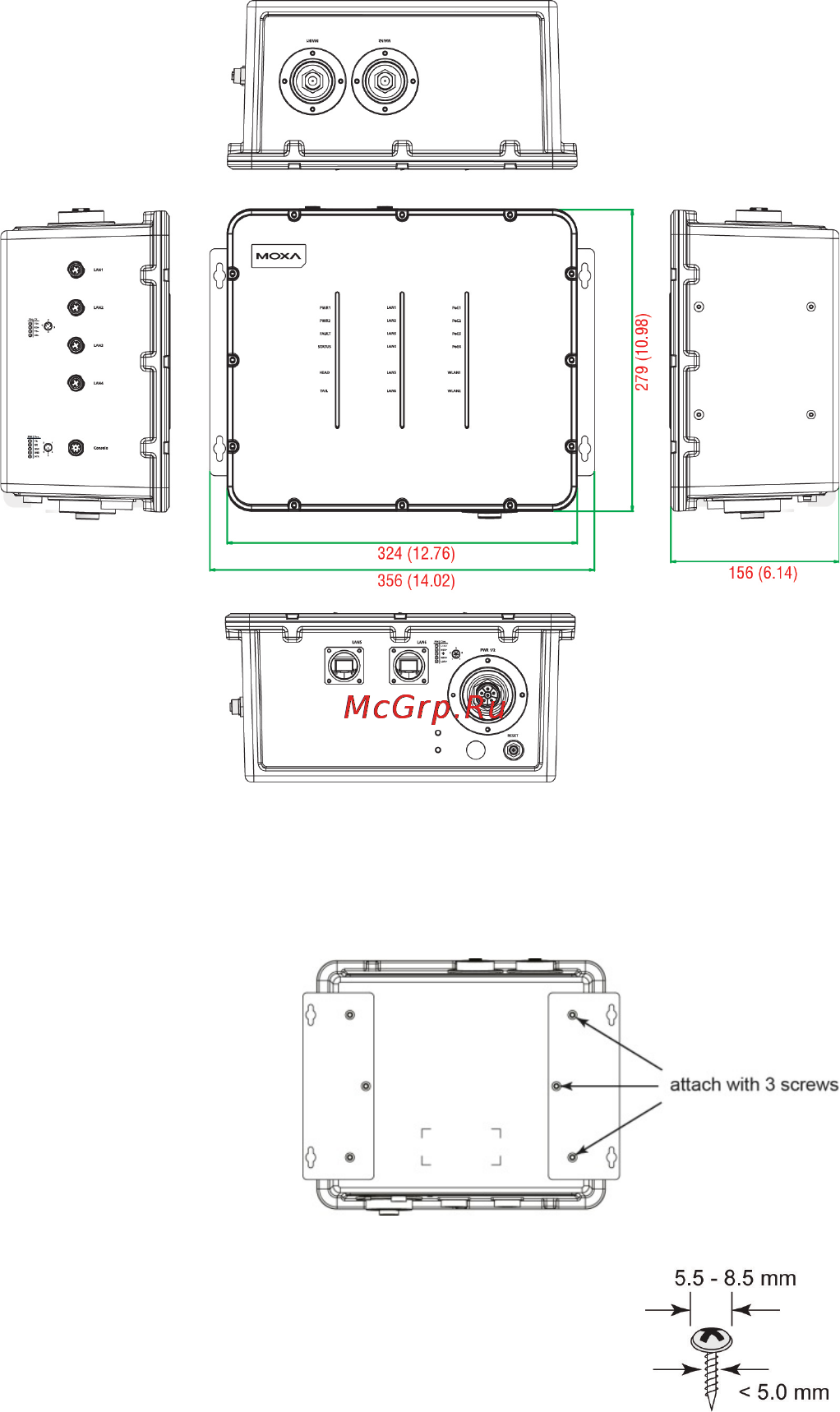

Dimensions (unit = mm)

Wall Mounting

In most applications, wall mount provides an easier installation. You will

find it quite easy to mount the TAP-6226 on the wall, as illustrated below.

STEP 1: Attach the

wall

-mounting kit with

M4 screws, as shown in

the diagram

below.

STEP 2: Mounting the TAP-6226 on the wall requires 4

screws. Use the

TAP-6226 device, with wall-

mounting

kit attached, as a guide to mark the correct locations

of the 4 screws. The heads of the screws should be

between

5.5 mm and 8.5 mm in diameter, and the

shafts should

not be more than 5.0 mm in diameter,

as shown in the figure.

Do not screw the screws all the way in to the wall—leave a space of about

2 mm to allow room to slide the wall-mounting kit between the wall and

the screws.
