DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of the IEX-402-SHDSL when you take it out of the box. If you

need to reattach the DIN-Rail attachment plate, make sure the stiff metal

spring is situated towards the top, as shown in the following figures.

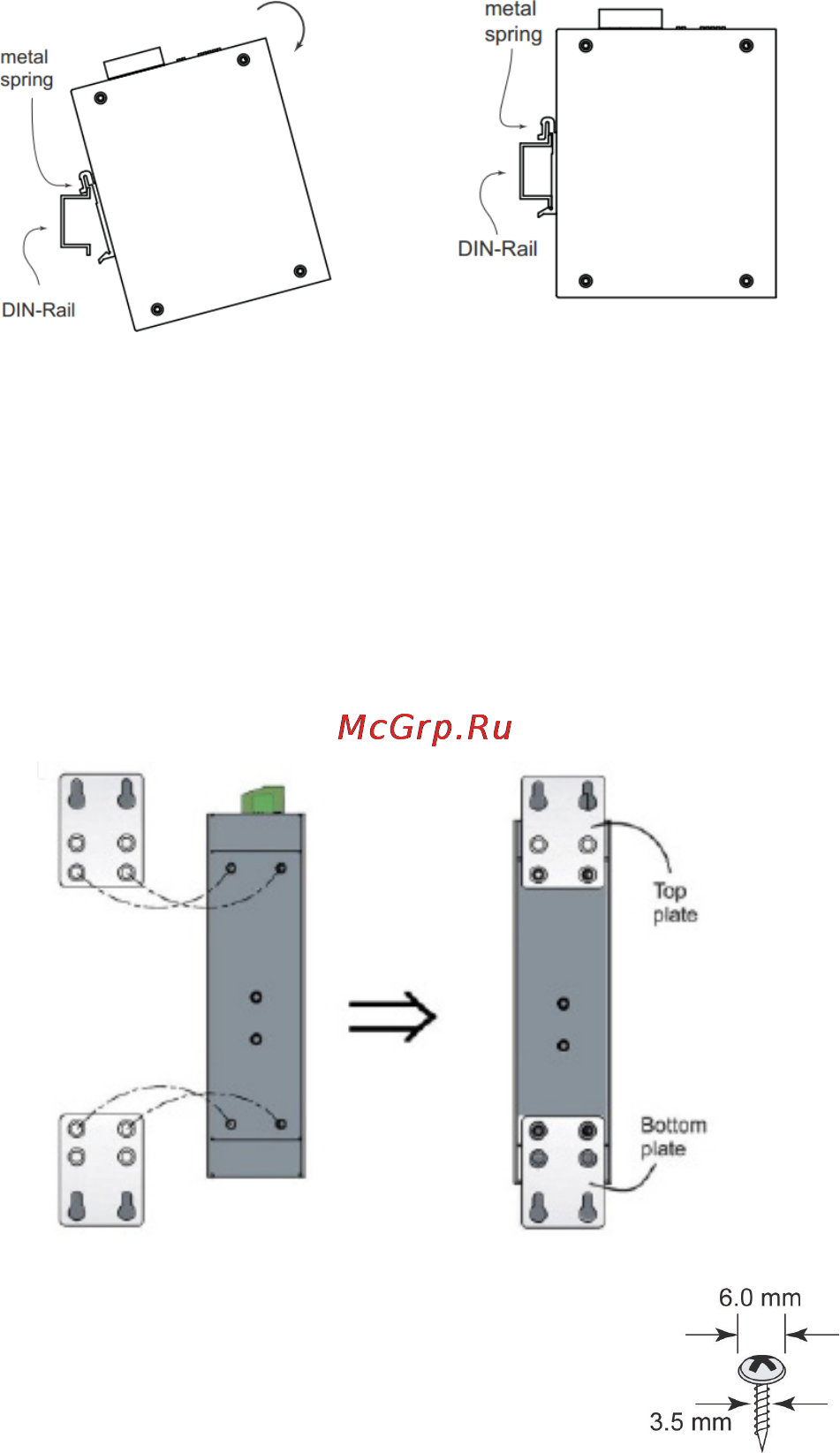

STEP 1: Insert the top of the

DIN

-Rail into the slot just below

the stiff metal spring.

STEP 2: The DIN-Rail attachment

unit will snap into place as shown

below.

To remove the Moxa Ethernet Extender from the DIN-Rail, simply reverse

Steps 1 and 2.

Wall Mounting (optional)

For some applications, you will find it convenient to mount the

IEX-402-SHDSL on the wall, as shown in the following figures.

STEP 1:

Remove the aluminum DIN

-Rail attachment plate from the

IEX

-402-SHDSL rear panel, and then attach the wall mount plates as

shown in the diagram at the right.

STEP 2:

Mounting the IEX

-402-SHDSL on the wall requires 4

screws. Use the switch, with wall mount plates attached,

as a guide to mark the correct locations of the 4 screws.

The heads of the

screws should be less than 6.0 mm in

diameter, and the shafts should be less than 3.5mm in

diameter, as shown in the figure at the right.
