PCI Express Boards Software Installation
3-18

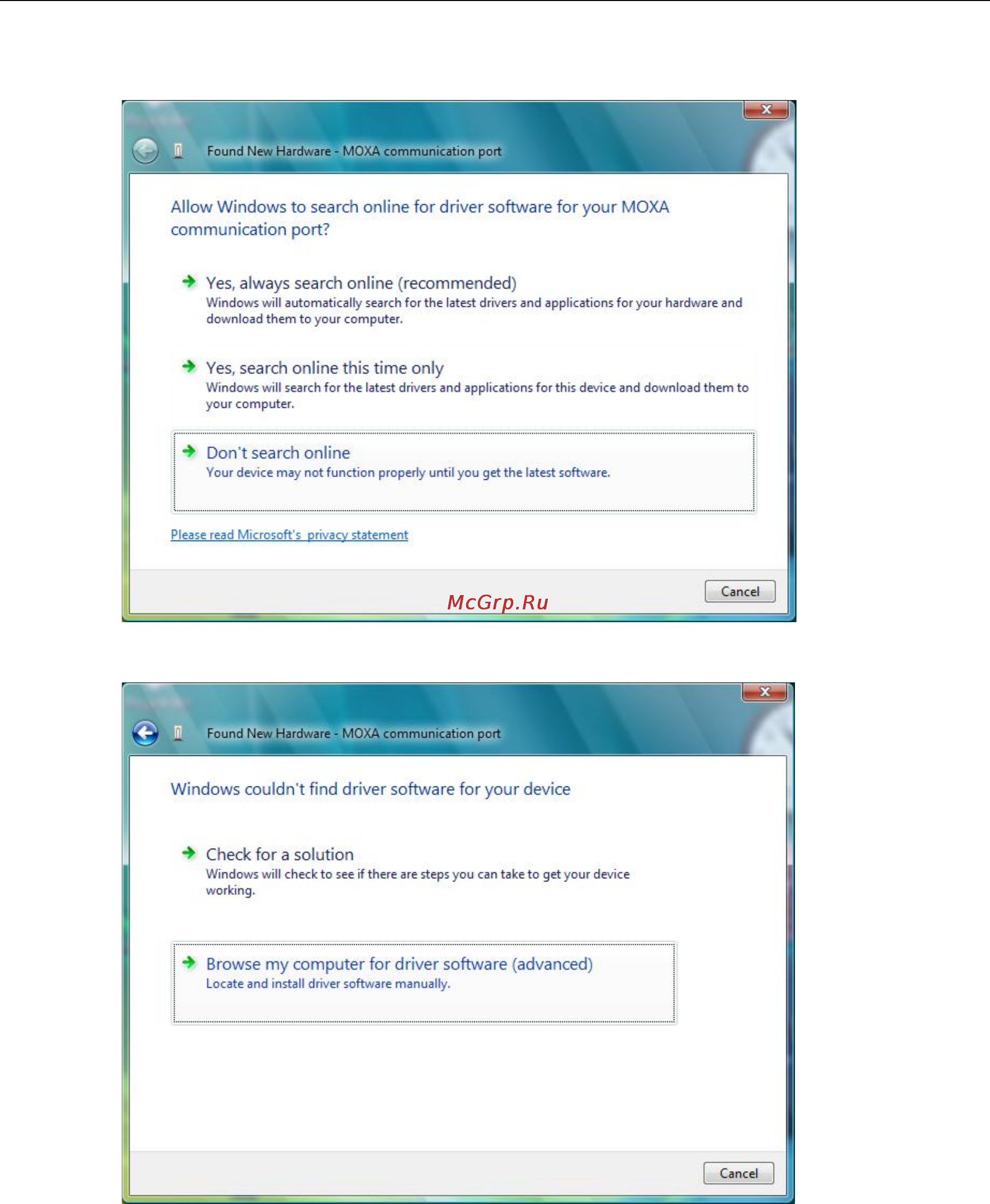

7. The Found New Hardware window will open to help you install the driver for MOXA Port 0. Select Don’t
search online.
8. Select Browse my computer for driver software (advanced).
