PCI Express Boards Software Installation
3-28

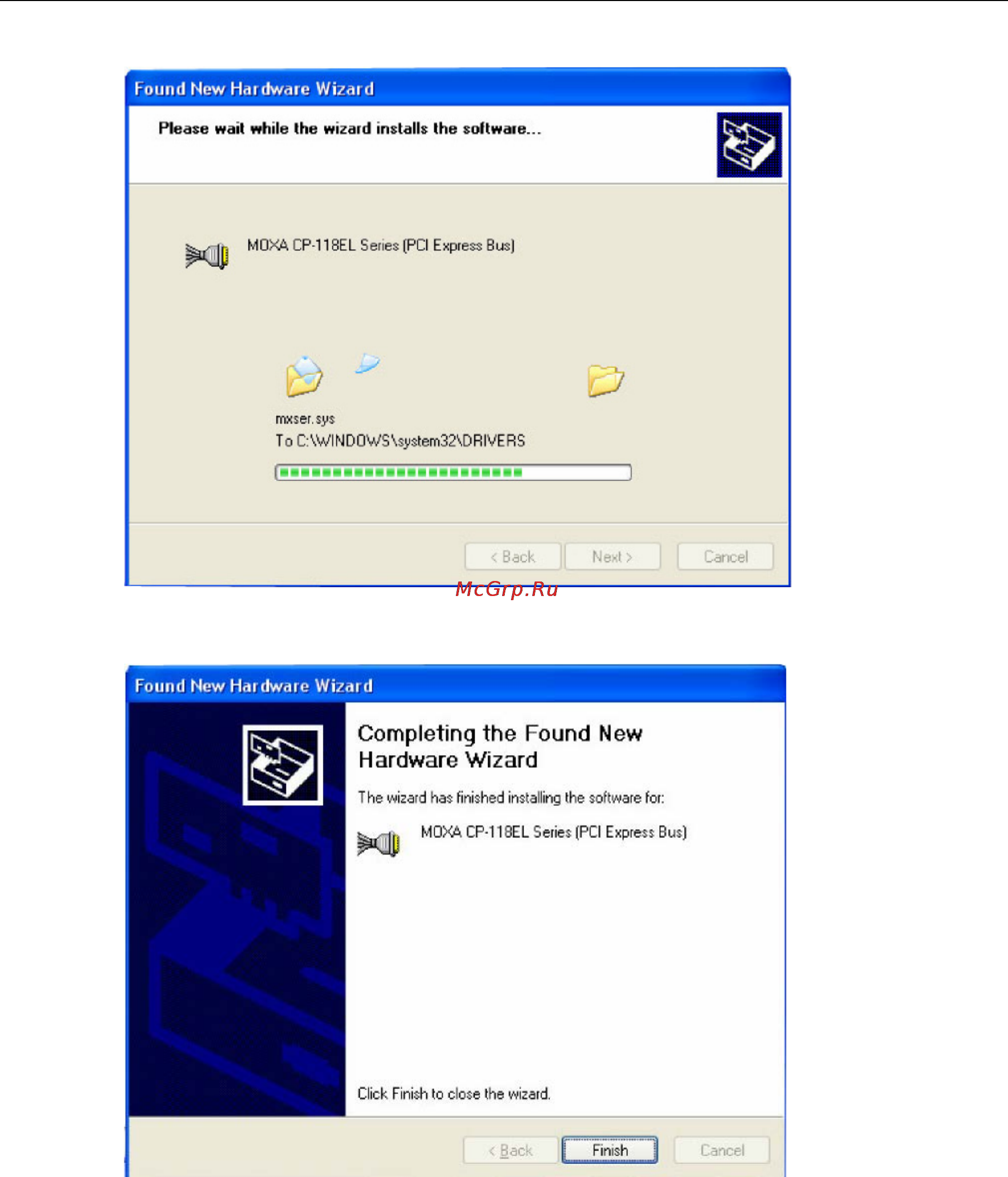

6. Wait while the driver software is installed.
7. The next window shows the model name of the board, and indicates that Windows has completed the driver
installation. Click Finish to proceed with the rest of the installation procedure.
