PCI Express Boards Software Installation
3-40

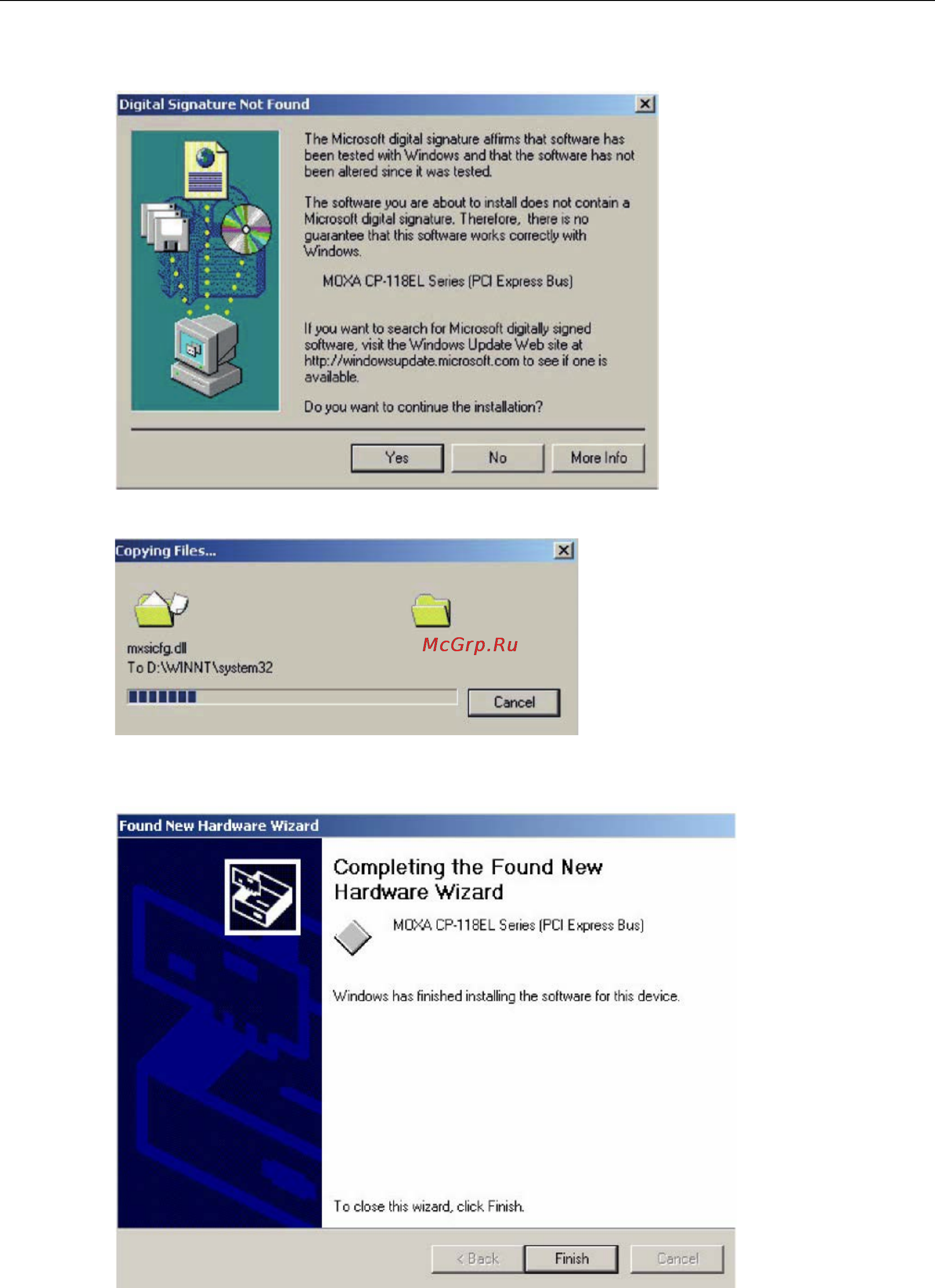

7. The next window that opens cautions you that although this software has not passed Windows Logo testing,
the driver has been tested and shown that it can support the Windows OS. Click Yes to proceed.
8. Wait while the files are copied to your hard drive.
9. The next window shows the model number of the board, and indicates that Windows has completed the
driver installation. Click Finish to continue with the rest of the installation procedure.
