Moxa POS-104UL-T [2/2] Ordering information

Multiport Serial Boards

6 9

PIN RS-232

1 DCD

2 RxD

3 TxD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 5V/12V/RI

CBL-M44M9x4-50 (POS)

DB9 male

Ordering Information

Available Models

POS-104UL-DB9M: 4-port RS-232 low proﬁle Universal PCI board with serial port power, 0 to 55°C

operating temperature (CBL-M44M9x4-50 (POS) cable included)

POS-104UL-T: 4-port RS-232 low proﬁle Universal PCI board with serial port power, -40 to 85°C operating

temperature

Connection Options (can be purchased separately)

CBL-M44M9x4-50 (POS): M44 to 4 x DB9-M cable, 50 cm

Low Proﬁle Bracket: Bracket for DB44 connector (1490000001000)

Package Checklist

• 1 POS-104UL board

• Low proﬁle bracket

• 1 connection cable (optional)

• Documentation and software CD

• Quick installation guide (printed)

• Warranty card

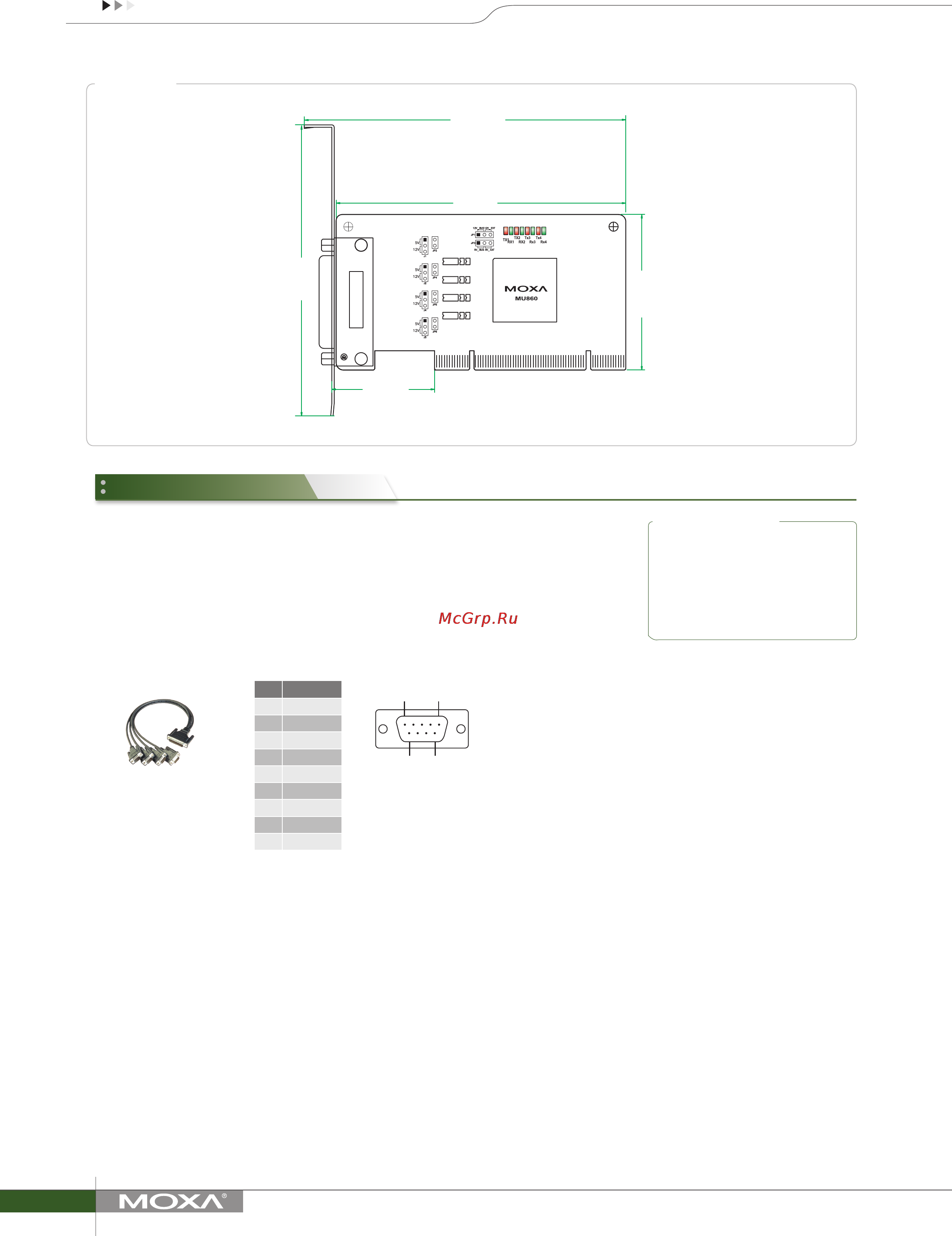

Dimensions

Unit: mm (inch)

Port 1

Port 2

41.7 (1.64)

120 (4.72)

133.25 (5.25)

LU401-SOP

64.4 (2.53)

121 (4.76)

Port 3

Port 4
