— 4 — — 5 — — 6 —
6. Select MOXA Intellio C320Turbo series multiport board in the
Select OEM Option window, and then click on OK to start installing
the driver.
7. When the Moxa Configuration Panel dialog box appears, click on
Add to open the Property window to modify port settings and
advanced FIFO configuration done automatically by the system.
8. Configure the I/O, IRQ, INT vector, etc.
9. Restart the OS.
Linux Driver Installation
1. Execute the following commands from the Linux prompt:
#mount /dev/cdrom /mnt/cdrom
#cd /
#mkdir moxa
#cd moxa
#cp /mnt/cdrom/<driver directory>/mxdrv.tgz .
#tar xvfz mxdrv.tgz
2. #cd mxdrv
#make clean; make install
3. #cd /moxa/mxdrv/driver
#./mxmknod
4. Load the Moxa Driver
#insmod moxa type=x,x,x,x
baseaddr=0x?????,0x?????,0x?????,0x?????
numports=y,y,y,y
| | | |
| | | +- 4th ISA board
| | +------ 3rd ISA board
| +------------ 2nd ISA board
+------------------- 1st ISA board
Where x=0 None y=0,8,16,24,32 ports
x=2 C218Turbo/ISA
x=4 C320Turbo/ISA
5. Download the firmware
#
cd /moxa/mxdrv/driver
#./moxaload –y
6. You can use the Moxa diagnostic utility to verify the driver status:
#cd /moxa/mxdrv/utility/diag
#./mxdiag
7. You can use the Moxa terminal utility to test the tty ports:
#cd /moxa/mxdrv/utility/term
#./mxterm

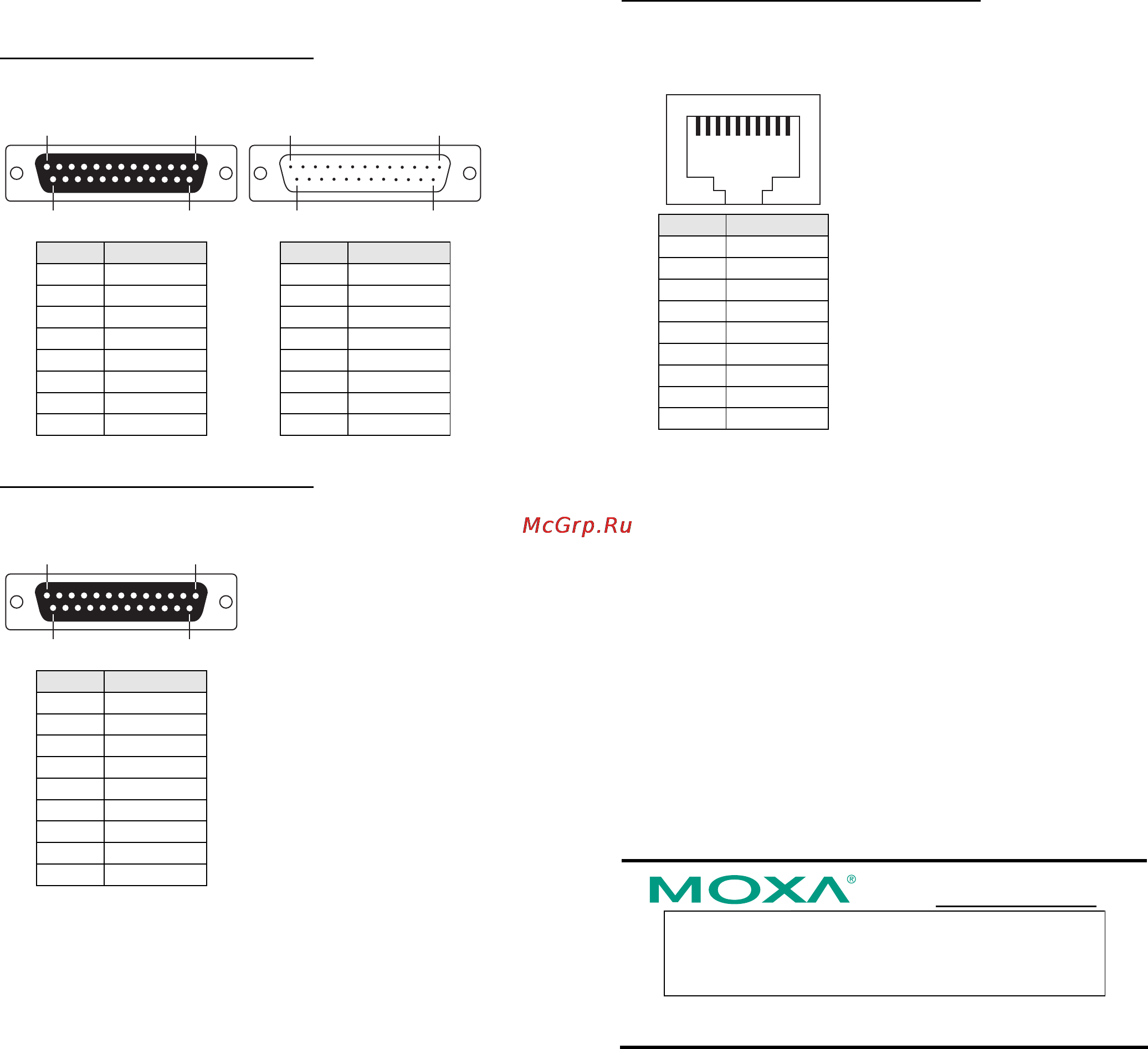

5. Pin Assignments and Cable Wiring
RS-232 Cable Wiring for UART Modules
C32045T, C32071T
Female DB25
13
25
1
14
C32047T
Male DB25
1
14
13
25
Pin RS-232
2 RxD
3 TxD
4 CTS
5 RTS
6 DTR
7 GND
8 DCD
20 DSR
Pin RS-232
2 TxD
3 RxD
4 RTS
5 CTS
6 DSR
7 GND
8 DCD
20 DTR
RS-422 Cable Wiring for UART Modules
C32061T, C32065T
Female DB25
13
25
1
14
Pin RS-232
2 RxD+(B)
3 TxD+(B)
14 RxD-(A)
16 TxD-(A)
7 GND
4 CTS+(B)
5 RTS+(B)
13 RTS-(A)
19 CTS-(A)
RS-232 Cable Wiring for Rackmount Solution
C32080T, C32081T,
C32082T, C32083T
10-pin RJ45
110
Pin RS-232
1 DCD
2 DSR
3 RTS
4 GND
5 TxD
6 RxD
7 GND
8 CTS
9 DTR
Click here for online support:
www.moxa.com/support
The Americas: +1-714-528-6777 (toll-free: 1-888-669-2872)
Europe: +49-89-3 70 03 99-0
Asia-Pacific: +886-2-8919-1230
China: +86-21-5258-9955 (toll-free: 800-820-5036)
2008 Moxa Inc., all rights reserved.
Reproduction without permission is prohibited.
