16
A-30-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4
200ms
On
Temperature
Protection
Off
AMP Overload
Protection
1CYCLE : 1.4S
DC DETECT
(DC Balance)
Power
Protection
1TIME : 800mS
1TIME : 2.4S
1TIME: 4.2S
1TIME : 2S

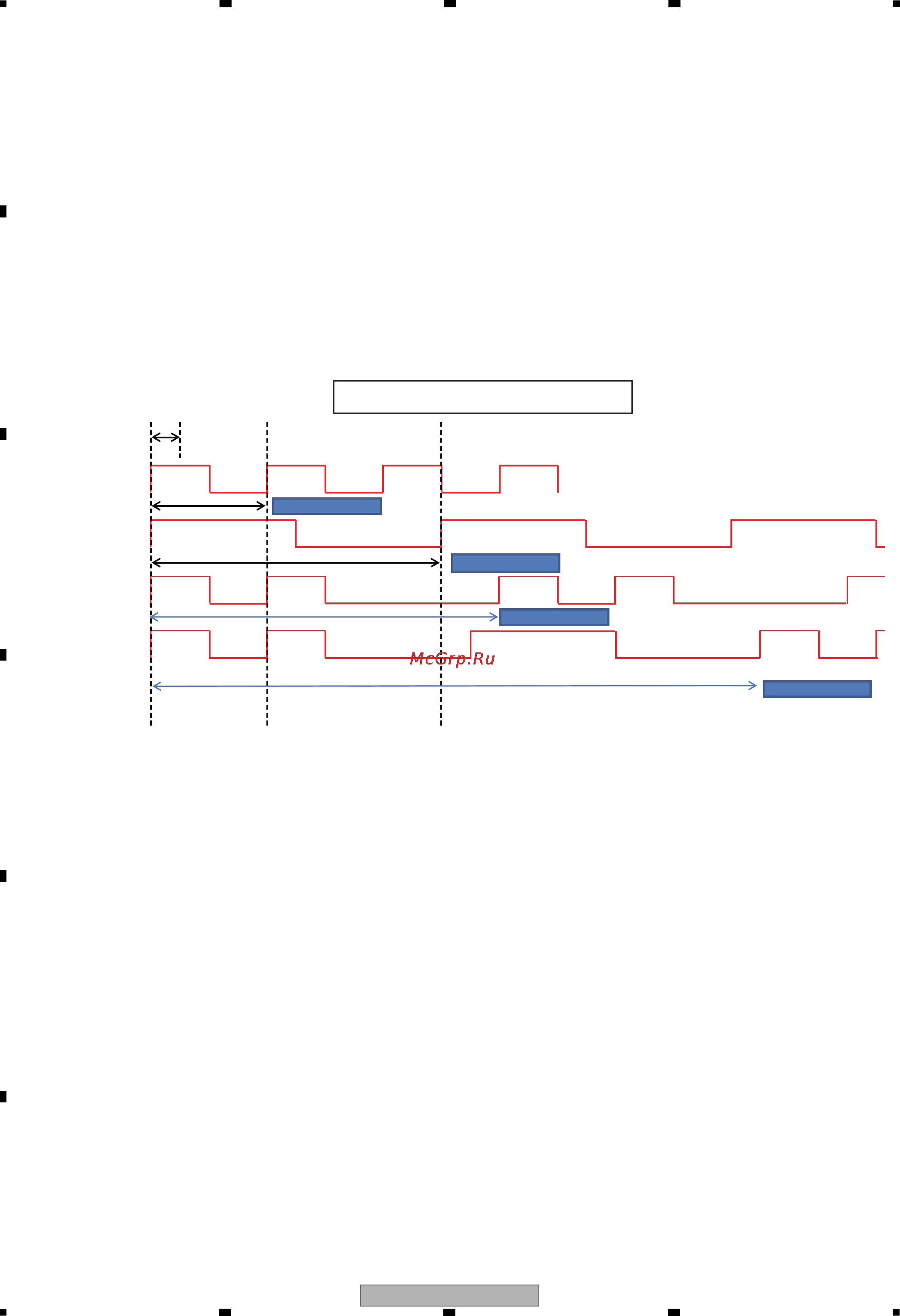

Protect LED display specifications
3. How to reset the prohibition of power ON
Press Front Key [ DIRECT ] + [ SPEAKER B ] at the same time for 2 seconds or more continuously.
The key prohibition mode after 1.1.1 AMP failure is detected and 1.4. power PROTECTION is detected is released and
the power supply is turned ON.
4. STANDBY LED display after PROTECTION is detected
Each PROTECTION operations above are identified by blinking timing of STANDBY LED.
The blinking of LED is continued until the power supply is turned ON again.
For the blinking specification of LED, refer to "Protect LED display specifications" shown below.
