![Pioneer A-30-K [24/57] Bottom view](/img/pdf.png)
Pioneer A-30-K [24/57] Bottom view
![Pioneer A-20-K [24/57] Bottom view](/views2/1199331/page24/bg18.png)
24
A-30-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4
5
4
MAIN ASSY
Wire Clamper
4
4
CN51
CN41
CY93
Front Section
Ground Cable
from the FRONT ASSY
6
6
6
6
6
6
7
7

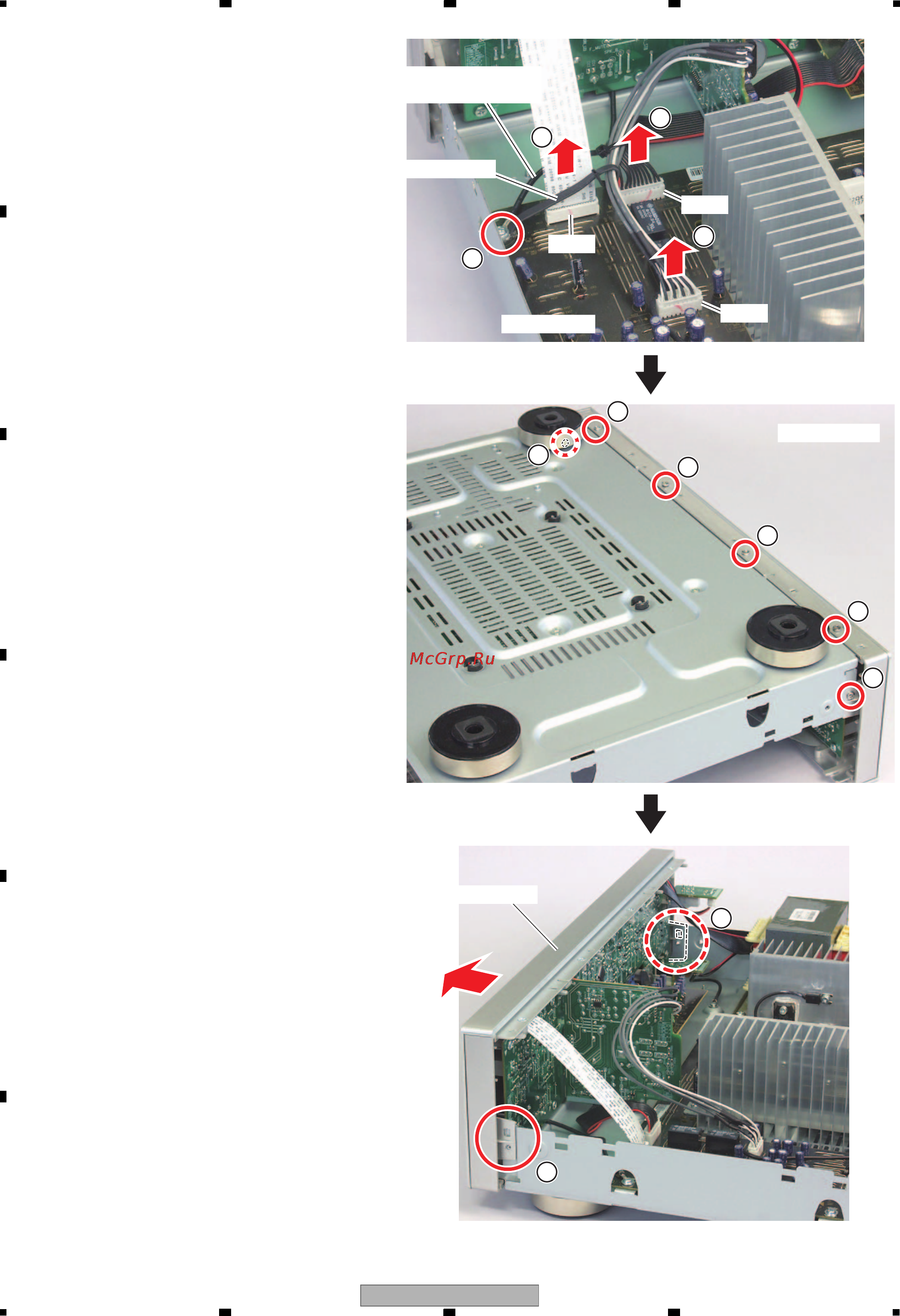

(4) Disconnect the three connectors.
(5) Remove the screw. (CTW3+6JR)
(6) Remove the six screws.
(
A-30-K, A-20-K, A-20, A-10-K:
)
BBZ30P080FTB
(
A-30-S, A-20-S, A-10-S:
)
CTB3+8JFC
(7) Unhook the two hooks and remove the Front
Section.
• Bottom view
