Moxa V2403-C2-W-T [58/90] Recovery environment
![Moxa V2403-C2-W-T [58/90] Recovery environment](/views2/1199383/page58/bg3a.png)
V2403 Series Linux Software System Recovery
5-2
Recovery Environment
The recovery environment includes the V2403 embedded computer and a bootable USB disk with the recovery
programs and system image file.
Hardware
The hardware used includes a PC, a V2403 computer and a USB disk with the recovery programs. (Note: The
USB disk should be at least 2 GB.).
Recovery Procedure

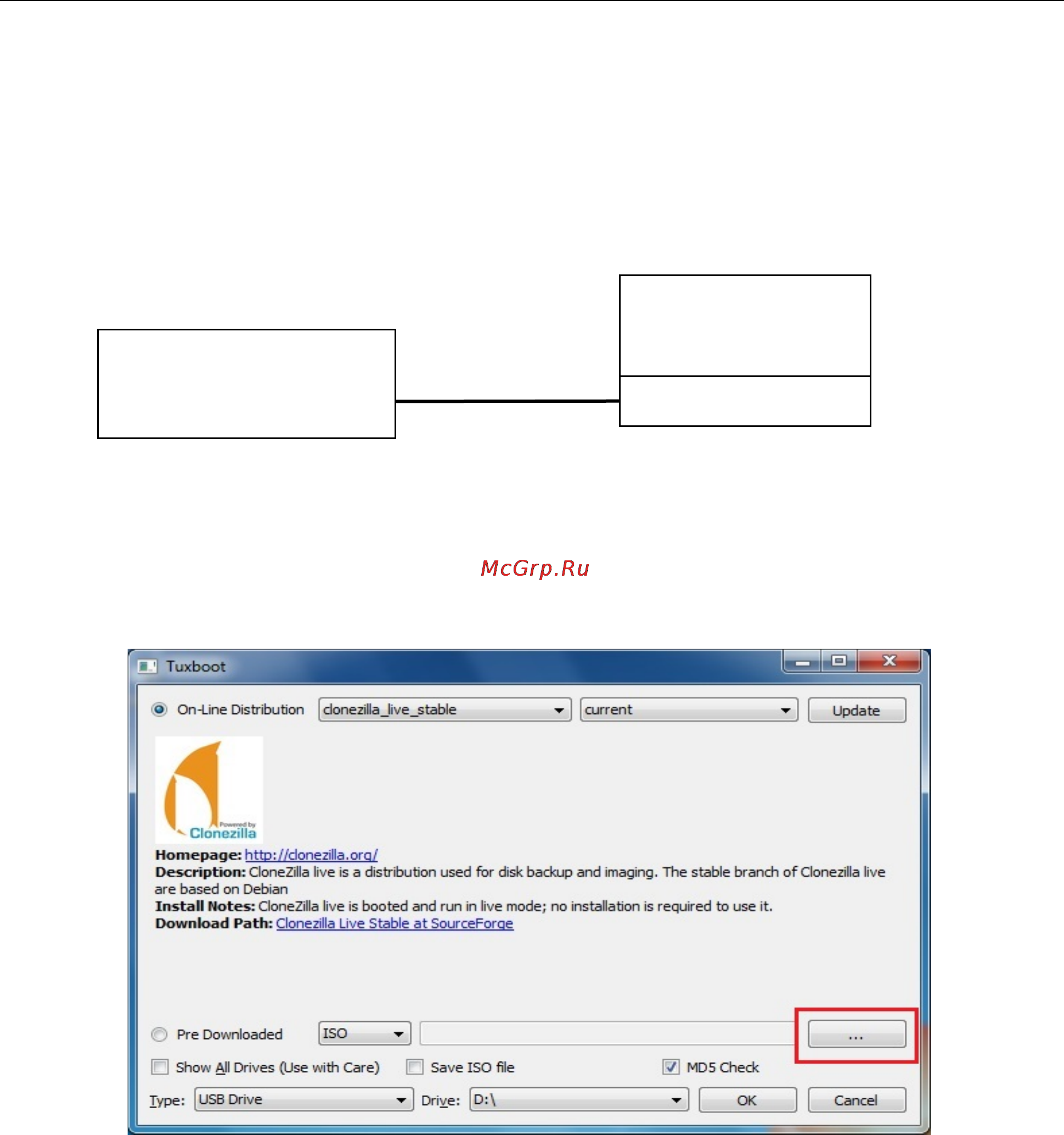

Step 1: Prepare your USB drive
1. Execute tuxboot-windows-23.exe from the Recovery\ folder on the Software CD, select Pre
Download, and then click “…”
Bootable USB DISK
(recovery programs and
system image file included)
V2403-LX
USB Port
