V2403 Series Linux Software System Recovery
5-13

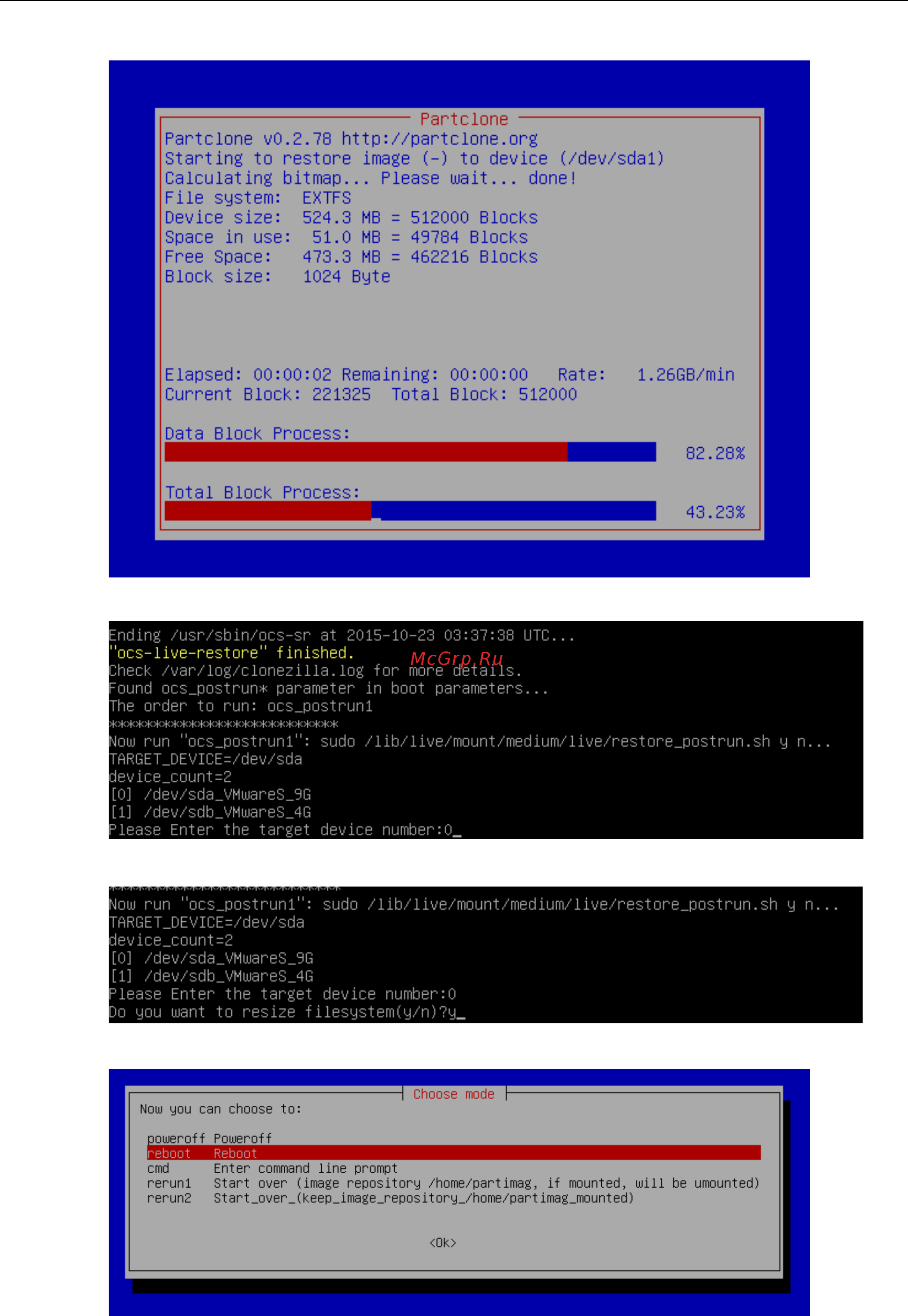

9. Wait for the process to finish.
10. Choose which storage in the file system you want to resize.
11. If you want to resize the file system, press y to continue the restore process.
12. Select reboot to reboot the computer.
13. Remove the USB drive after the computer has been rebooted.
