V2403 Series Linux Software System Recovery
5-7
Step 3: Restore the system from the USB drive
Connect the USB disk to any of the V2403’s USB ports and then reboot the computer. The system will boot from
the USB disk and the Pre-installation Environment and the recovery utility will appear.
There are 2 kinds of recovery process in Clonezilla: auto mode and expert mode:
• Select auto mode to complete the recovery task if you want Clonezilla to help you recover the MBR
and expand the image automatically.
• Select expert mode to see a list of selectable options for completing the recovery task.

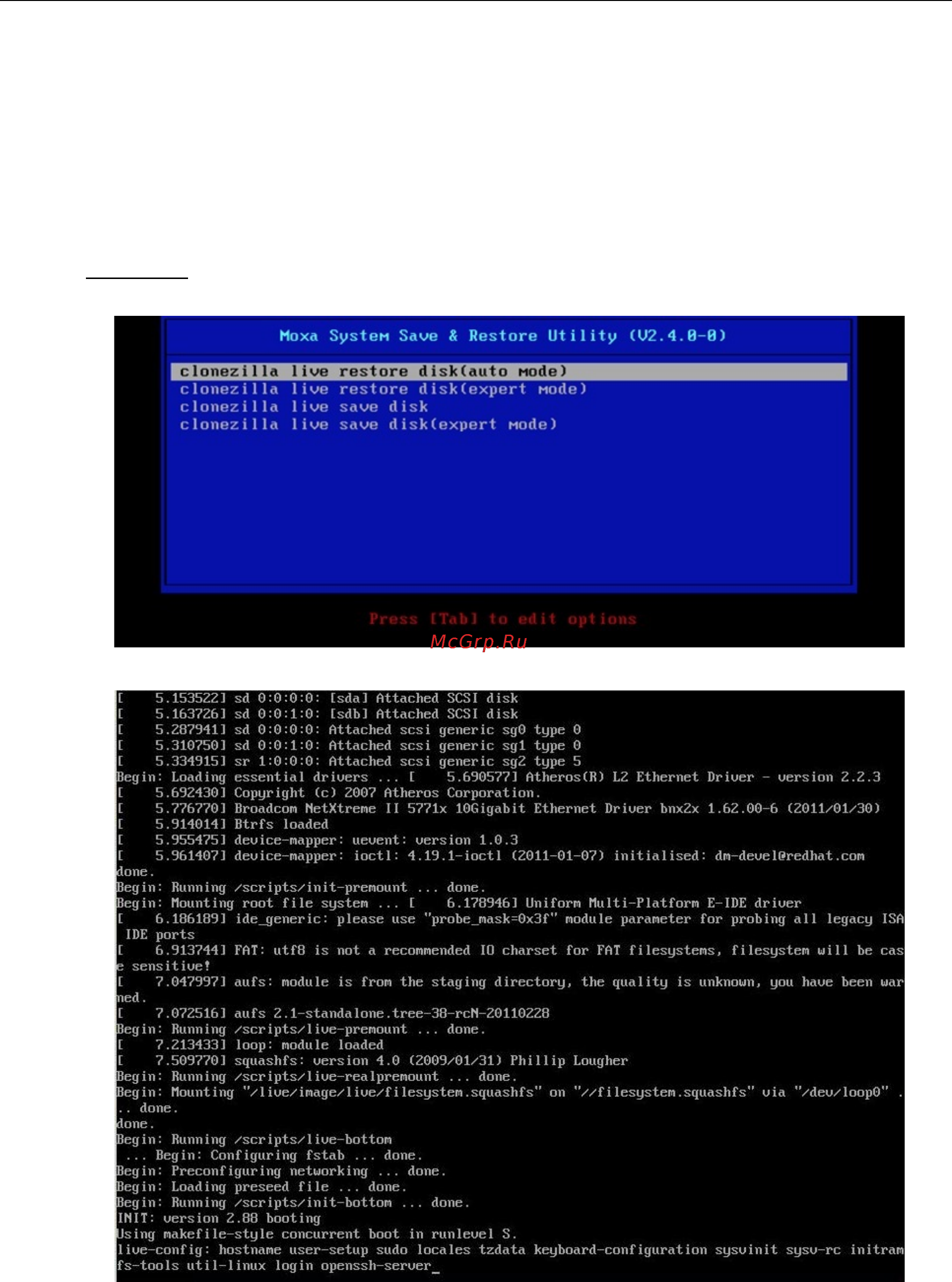

Auto mode:
1. Select clonezilla live restore disk.
2. Wait for the USB drive boot process to finish.
