V2403 Series Hardware Hardware Connection Description
3-2
Installing theV2403
Wall or Cabinet Mounting

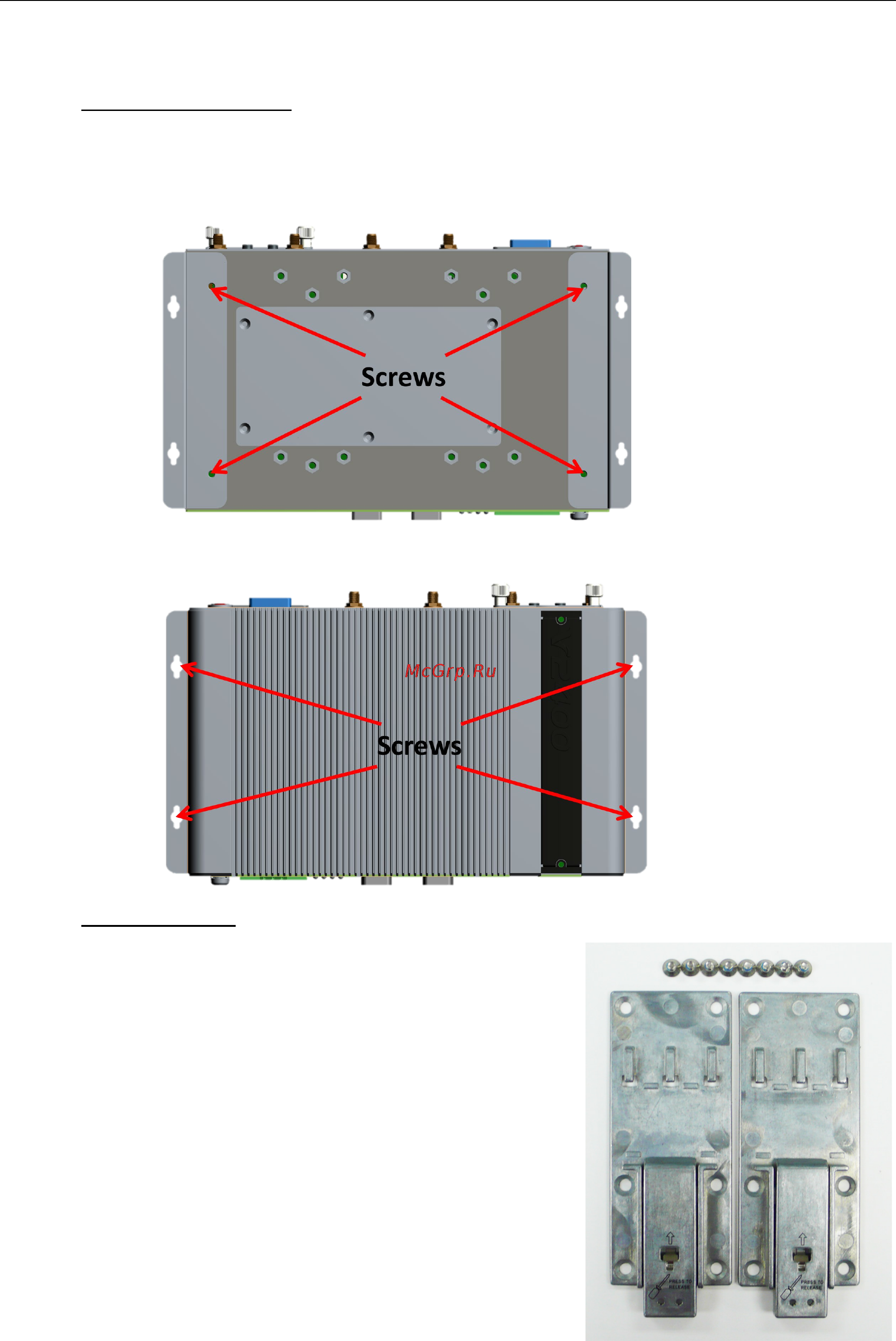

The V2403 comes with two metal brackets for attaching the device on a wall or to the inside of a cabinet.
Complete the following steps to attach the mounting brackets to the V2403.
Step 1: Use two screws for each bracket to attach the brackets to the rear of the V2403.
Step 2: Use two screws per side to mount the V2403 on a wall or in a cabinet.
DIN-Rail Mounting
The V2403 can be installed on a DIN
-rail with the optional
DIN
-rail kit. This DIN-
rail kit must be purchased separately. The
DIN
-rail kit includes two DIN-rail brackets and eight screws.
