V2403 Series Hardware Hardware Connection Description
3-3

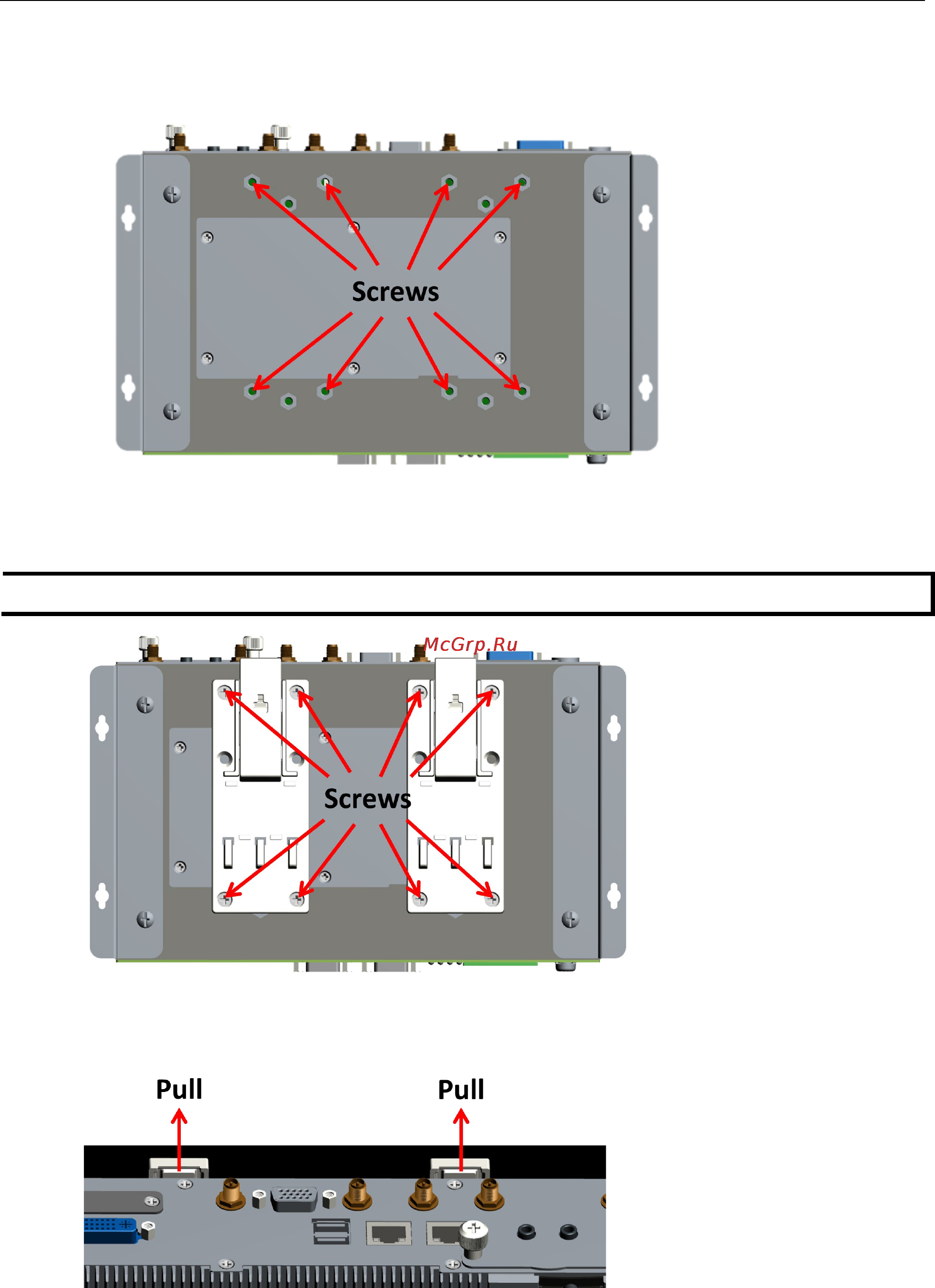

To attach the DIN-rail kit, complete the following steps:
1. Turn the V2403 over so the bottom is facing up.
2. Locate the screw holes on the bottom of the V2403.
3. Place the brackets on the bottom of the V2403 and align the screw holes on the brackets with the screw
holes on the V2403.
4. Insert and tighten the screws into the screw holes.
NOTE
Use all eight screws to ensure that the
V2403 is safely and securely installed on the DIN rail.
5. When the brackets are firmly attached with the screws, you can install the V2403 onto a DIN-rail.
To remove the V2403 from the DIN rail, first use a screwdriver to pull down the DIN-rail connector to unlock it.
