V2403 Series Hardware Hardware Connection Description

3-5

Grounding the Unit

Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the

ground connection from the grounding screw (M5) to the grounding surface prior to connecting the power.

ATTENTION

This product is intended to be mounted o

n a well-grounded mounting surface, such as a metal panel.

Connecting Data Transmission Cables

In this section, we describe how to connect the V2403 embedded computer to a network and serial devices.

Installing the Mini-PCIe Modules and USIM Cards

ATTENTION

Select

“-W” models (e.g., V2403-C2-W-T) when placing V2403 orders for wireless applications.

Moxa will add

3 mini

-PCIe sockets during production. Note that the internal storage kit cannot be used with “-

W” models. To

expand the storage of “

-W” models, use an mSATA card.

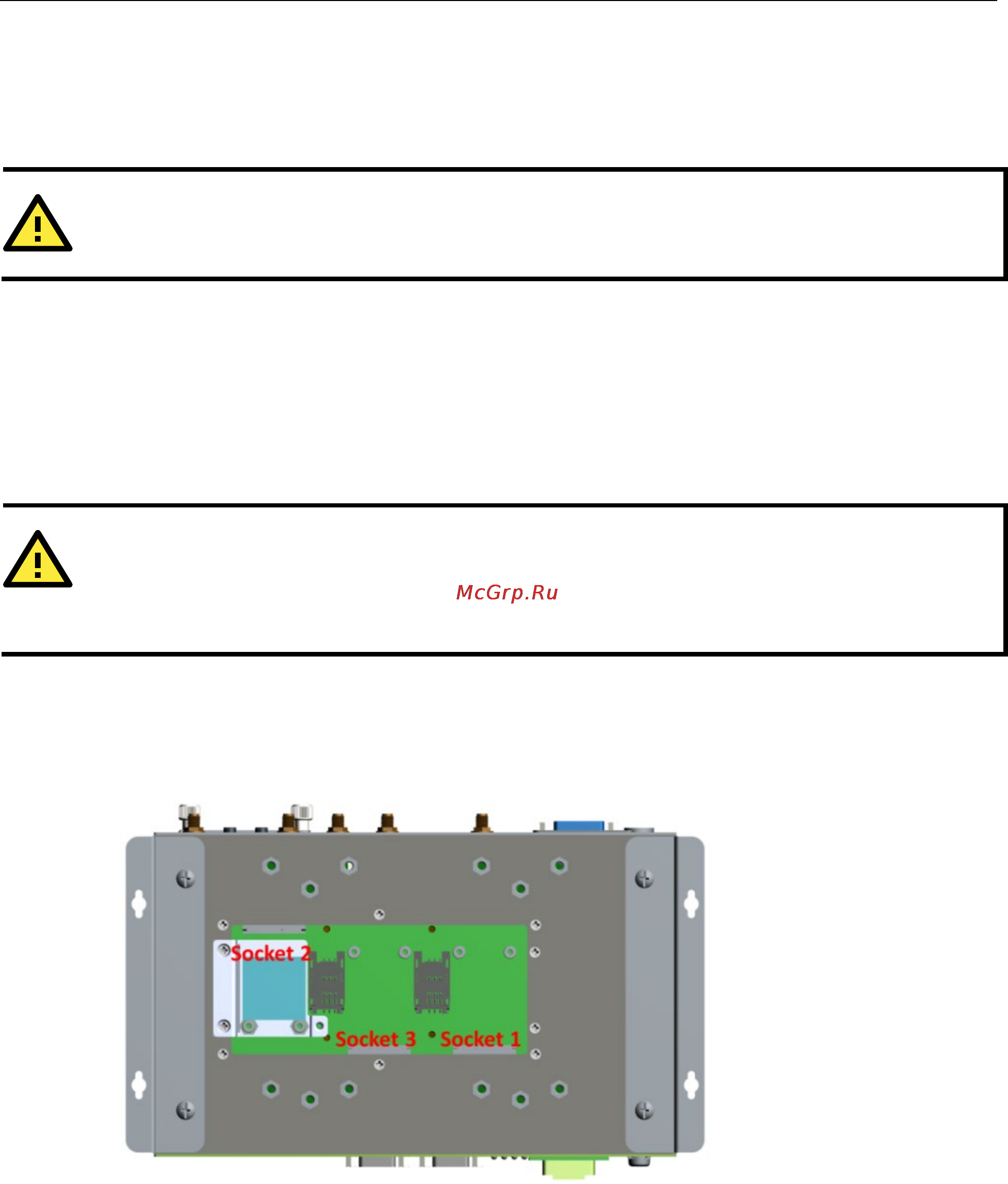

The V2403 features 3 mini-PCIe sockets on the bottom panel.

• Socket 1: USB + PCIe signal, for Wi-Fi mini-PCIe card

• Socket 2: USB signal, for 3G/LTE mini-PCIe card (Sierra Wireless MC7304, MC7354, MC9090)

• Socket 3: SATA signal (for mSATA)
