V2101 Hardware Hardware Connection Description
3-5

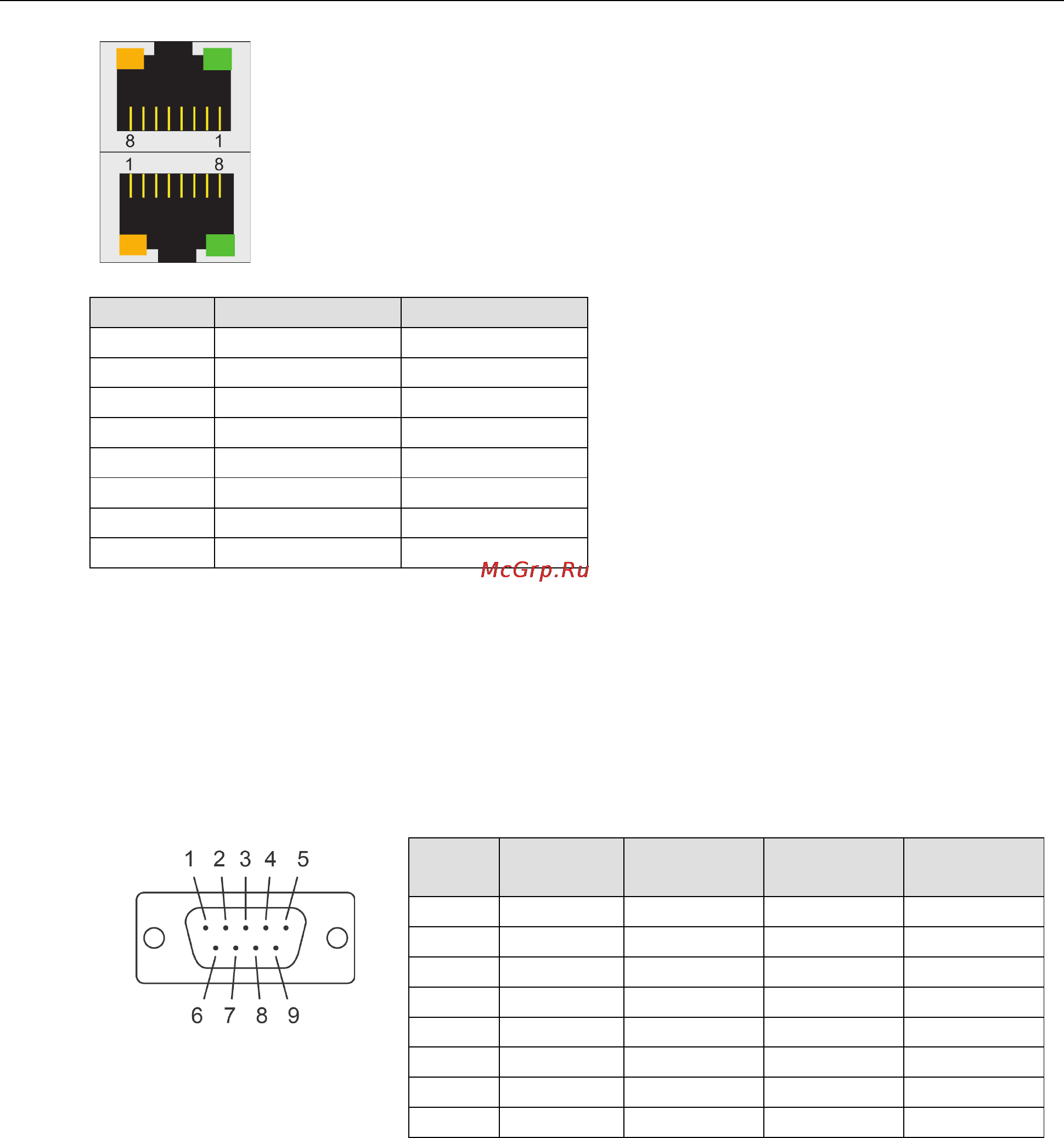

The LED indicators on the right top and right bottom corners glow a solid green color
when the cable is properly connected to a 100 Mbps Ethernet network. The LED will
flash on and off when Ethernet packets are being transmitted or received.
The LED indicators on the left top and left bottom corners glow a solid yellow color when
the cable is properly connected to a 1000 Mbps Ethernet network. The LED will flash on
and off when Ethernet packets are being transmitted or received.
Pin 10/100 Mbps 1000 Mbps
1
ETx+
TRD(0)+
2 ETx- TRD(0)-
3 ERx+ TRD(1)+
4 --- TRD(2)+
5 --- TRD(2)-
6 ERx- TRD(1)-
7 --- TRD(3)+
8 --- TRD(3)-
Connecting to a Serial Device
Use a serial cable to plug your serial device into the embedded computer’s serial port.
Serial ports P1 to P2 have male DB9 connectors and can be configured for RS-232,
RS-422, or RS-485 communication by software. The pin assignments are shown in the
following table:
DB9 Male Port RS-232/422/485 Pinouts
Pin RS-232 RS-422
RS-485
(4-wire)
RS-485
(2-wire)
1 DCD TxDA(-) TxDA(-) ---
2 RxD TxDB(+) TxDB(+) ---
3 TxD RxDB(+) RxDB(+) DataB(+)
4 DTR RxDA(-) RxDA(-) DataA(-)
5 GND GND GND GND
6 DSR --- --- ---
7 RTS --- --- ---
8 CTS --- --- ---
Installing an SD Card
Installing an SD Card for Storage Expansion
The V2101 has an internal SD slot for storage expansion. The SD slot allows users to plug in a Secure Digital
(SD) memory card compliant with the SD 1.0 standard for up to 1 GB space, and a Secure Digital High Capacity
(SDHC) memory card compliant with the SD 2.0 standard for up to 16 GB of additional memory. The following
steps show how to install the SD card.
The SD slot is located in the middle of the V2101’s front panel. To install an SD card, make sure the embedded
computer is powered off, remove the protective cover from the left to access the slot, and then plug the SD card
directly into the slot.
