V2101 Hardware Hardware Connection Description
3-7
DI/DO
The V2101 comes with a 3-ch digital input and a 3-ch digital output through a DB9 female connector. The pin
assignments are shown below.
PIN Signal
1
COM
2 DO 1
3 N/A
4 DI 1
5 GND
6 DO 0
7 DO2
8 DI 0
9 DI 2

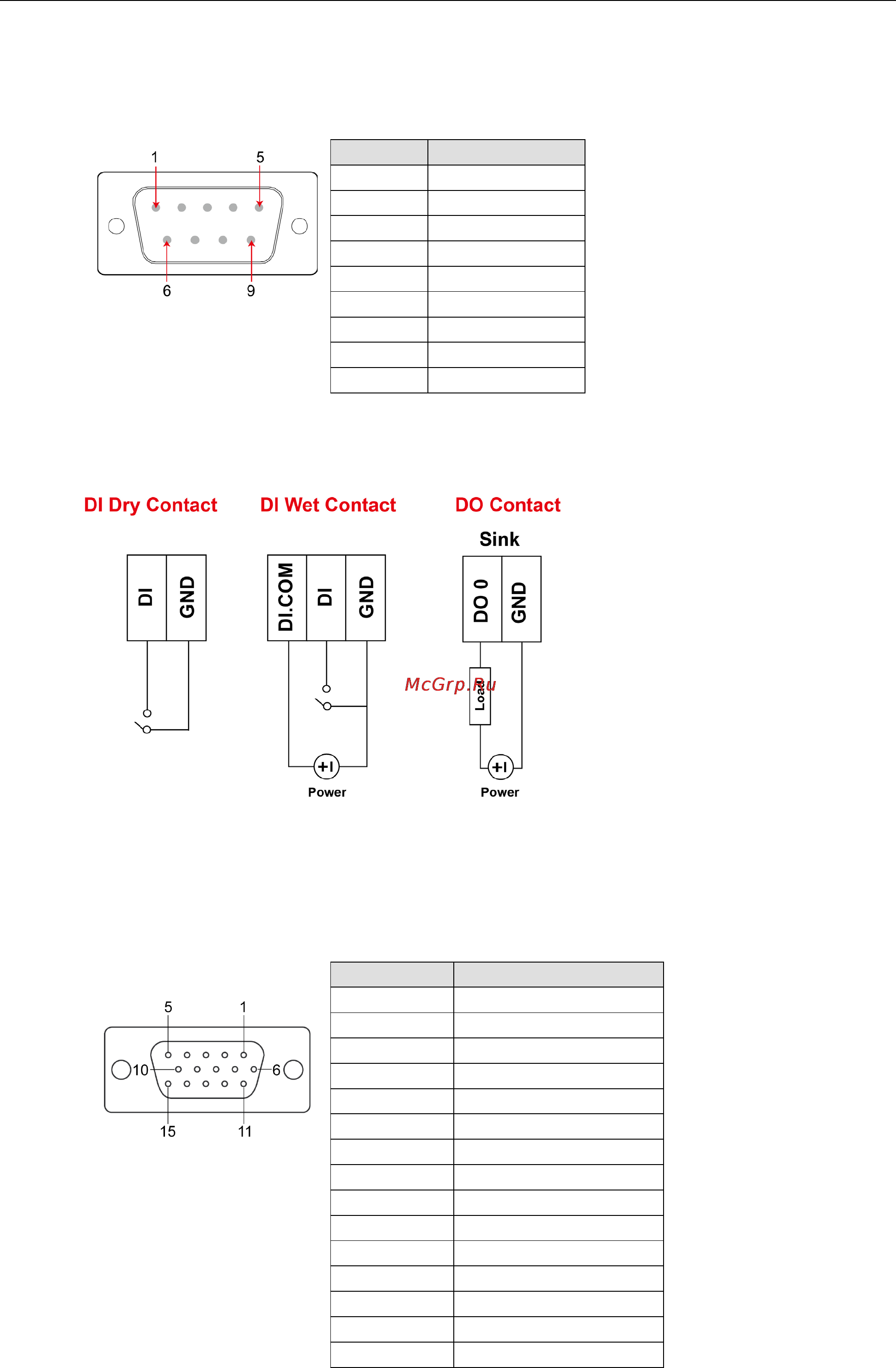

Digital Input / Output Wiring Methods
Please refer to the following figures for digital input / output wiring methods of the V2101.
Connecting to a VGA Monitor
The V2101 comes with a D-Sub 15-pin female connector on the rear panel to connect a VGA CRT monitor. To
ensure that the monitor image remains clear, be sure to tighten the monitor cable after connecting it to the
V2101. The pin assignments of the VGA connector are shown below.
DB15 Female Connector
Pin No. Signal Definition
1 Red
2 Green
3 Blue
4 NC
5 GND
6 GND
7 GND
8 GND
9 VCC
10
GND
11 NC
12 DDC2B Data
13 HSYNC
14 VSYNC
15 DDC2B Clock
