V2101 Hardware Hardware Connection Description
3-6

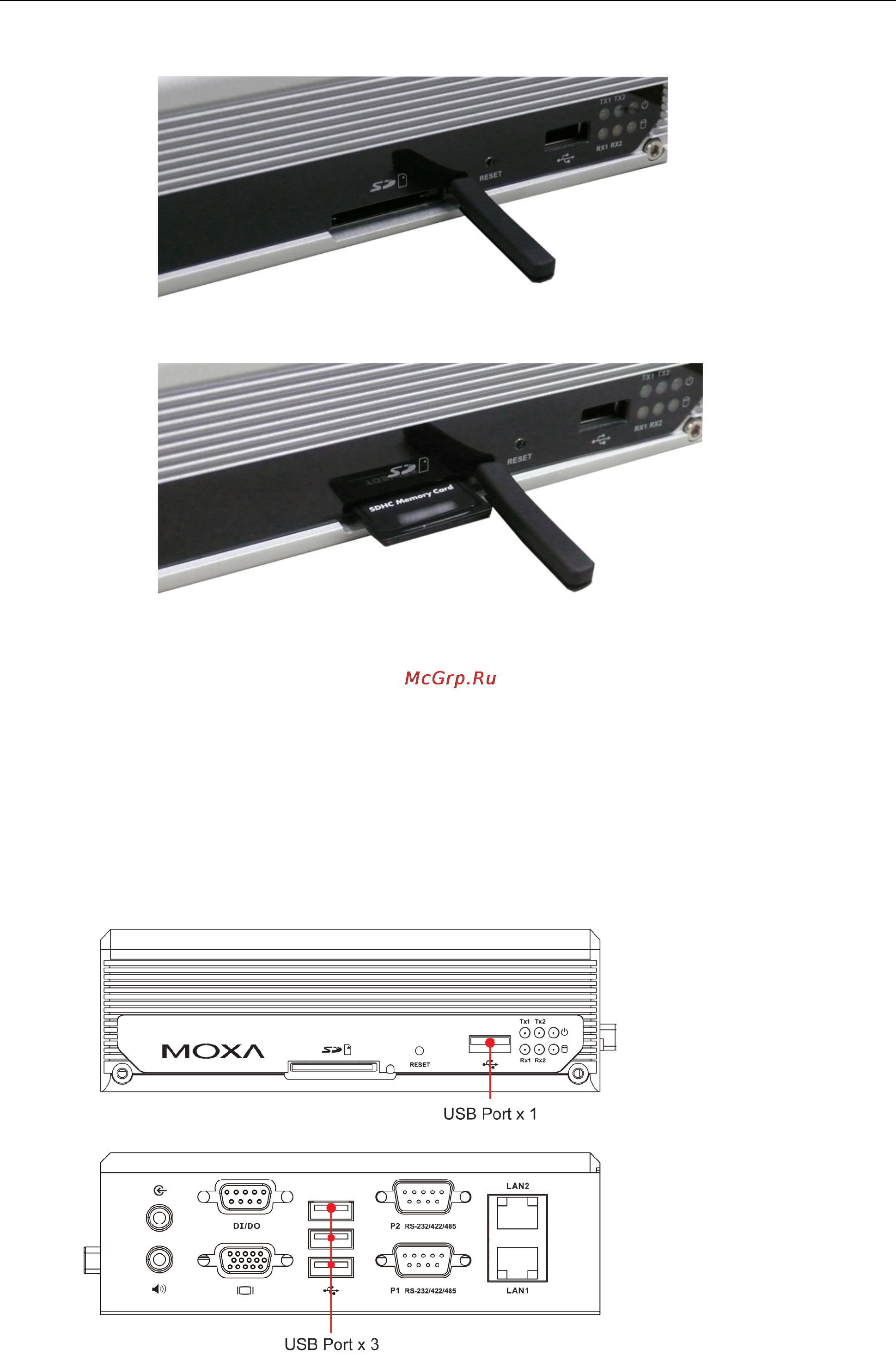

Step 1: Gently remove the outer cover from the left.
Step 2: After removing the cover, insert the SD memory card into the slot.
Step 3: Gently move the protective cover back to the SD slot. Power on the embedded computer and start the
operating system.
NOTE: To remove the SD card from the slot, press the SD card in slightly with your finger, and then remove
your finger to allow the card to spring out partially. You may now grasp the top of the card with two fingers and
pull it out.
Connecting to a USB Device
The V2101 comes with 4 USB 2.0 hosts. One is located on the front panel and the other three are on the rear
panel. The hosts can be used for an external flash disk or hard drive for storing large amounts of data. You can
also use these USB hosts to connect to a keyboard or a mouse.
