Moxa DA-PRP-HSR Expansion Module Driver and Utility Installation

3-6

Configuring the DA-PRP-HSR

You can use the Moxa PRP Settings utility to set the operating mode on the DA-PRP-HSR.

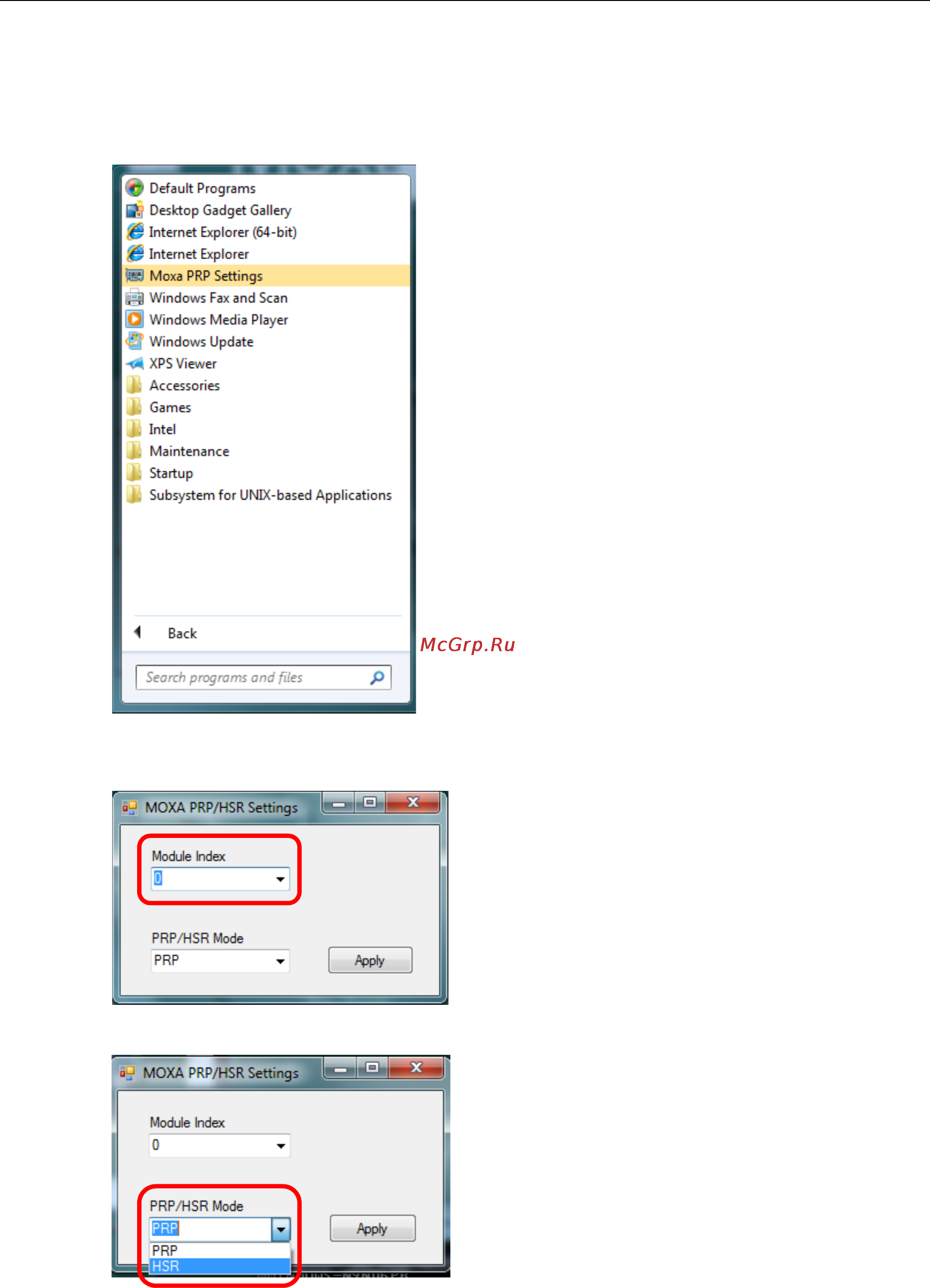

1. Open the Moxa PRP Settings utility from the Start menu.

2. If more than one DA-PRP-HSR is installed in the computer, from the Module Index drop-down list, select

the index (1 to 3) of the DA-PRP-HSR that you want to configure.

3. From the PRP/HSR Mode drop-down list, select an option and click Apply.

4. Restart the Moxa PRP Service or restart the computer to make the changes take effect.
