Moxa DA-PRP-HSR Expansion Module Introduction

1-2

Overview

The DA-PHR-HSR expansion module is compliant with IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5

(HSR) to ensure the highest system availability and data integrity for mission-critical applications that require

zero-time recovery and redundancy.

With dual Gigabit Ethernet port design, the DA-PRP-HSR provides high performance for redundant network

systems. In addition, the DA-PRP-HSR features a built-in native PRP/HSR management middleware with MMS

server that allows SCADA to collect IEC 62439-3 registers from multiple devices for easy network diagnosis,

troubleshooting, device management, and monitoring.

Moxa’s DA-820 series industrial computer with the DA-PRP-HSR expansion module is the ideal solution for

power substation automation and process automation systems.

NOTE Throughout this document, the DA-PRP-HSR expansion module is referred to as the DA-PRP-HSR and the

DA-820 series industrial computer is referred to as the DA-820 computer.

Package Checklist

The expansion module is shipped with the following items:

• DA-PRP-HSR expansion module

• Two Ethernet cable: RJ45 to RJ45 cross-over cable, 100 cm

• Documentation CD or DVD

• Quick Installation Guide (printed)

NOTE If any of the above items are missing or damaged, please contact your sales representative.

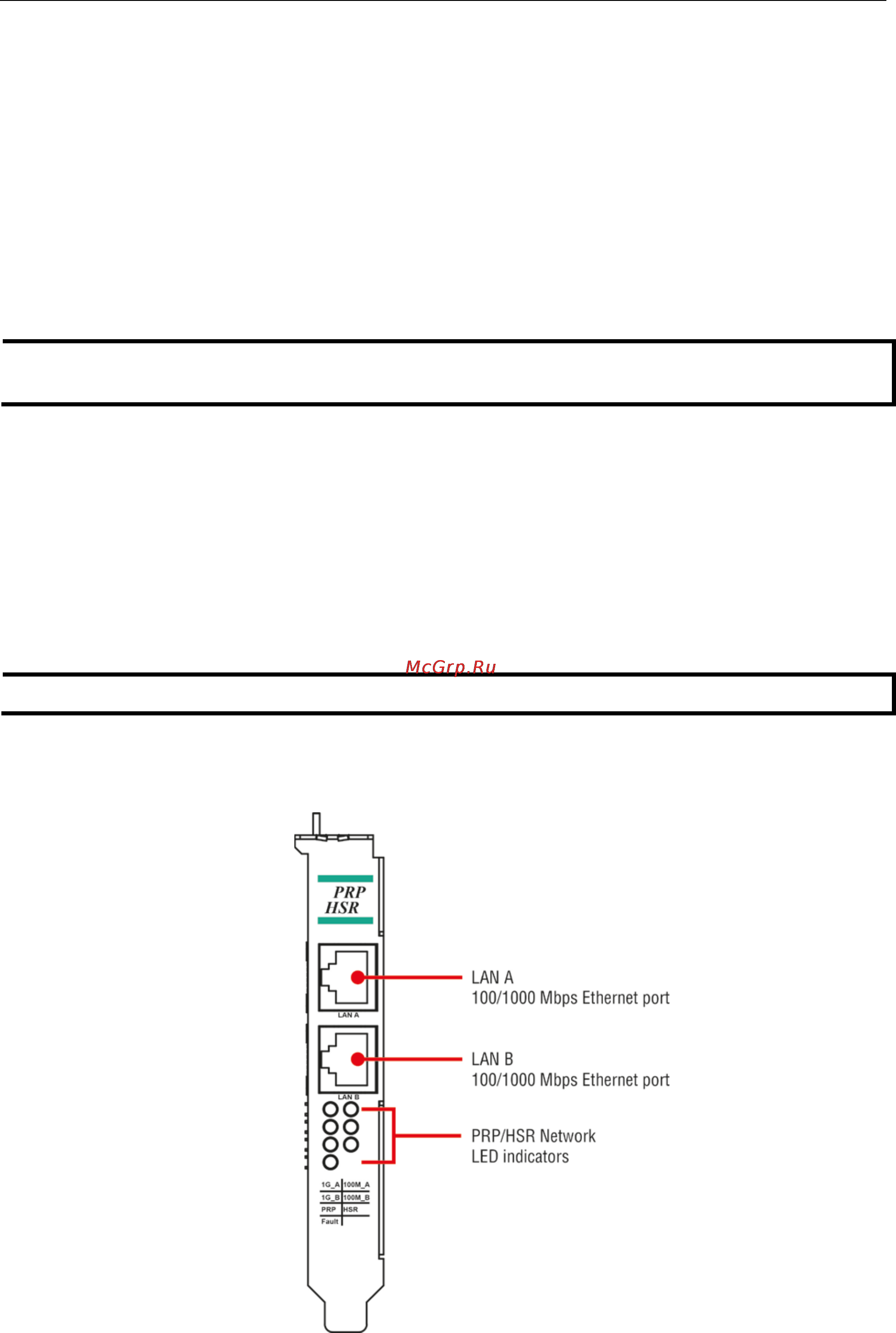

Appearance
