Moxa DA-681-I-DP-LX [11/47] Use windows ce network control panel utility

DA-681 Series WinCE User’s Manual Software Configuration

There are two ways for you to change your network setting.

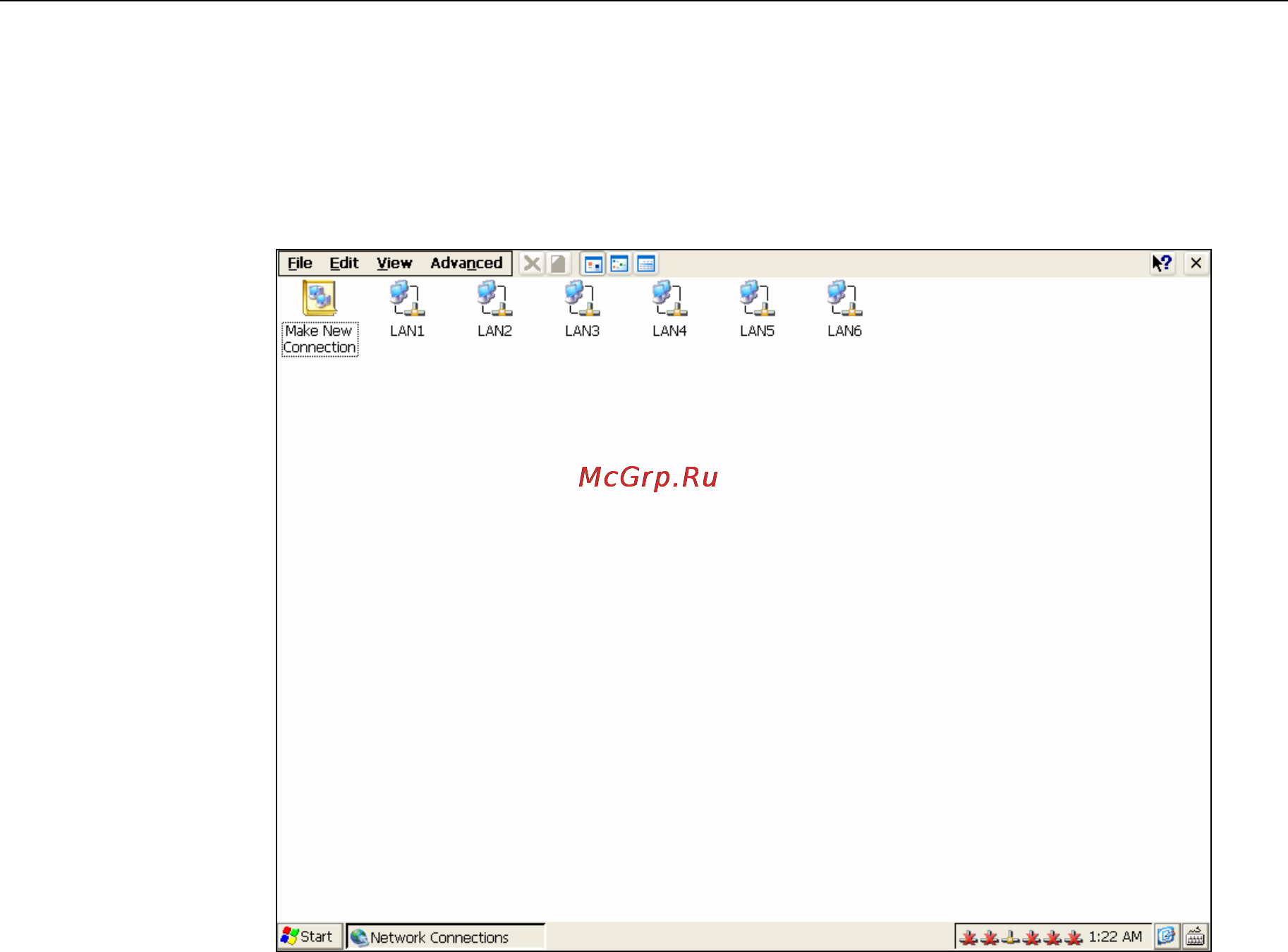

Use Windows CE Network Control Panel utility

Step1: Move you mouse go to the [Start] Æ [Settings] Æ [Network and Dial-Up

Connections].

Step2: Right-Click the LAN icon and click the [property]

Step3: Click “OK” button after configuration is done.

Use telnet client to logon to DA-681-CE

Normally, you are required to change them because they are located on a different local network

from that of your development workstation. Without changes, you cannot connect to them directly.

Use the netconfig utility to complete the task. Type netconfig -h to get help on this utility.

\> netconfig -h

Usage: netconfig -n <AdapterName | Alias> [-EnableDHCP]

[-i <IP address>] [-m <netmask>] [-g <gateway>] [-d <DNS server>]

[-w <WINS Server>] [-noask]

e.g.: netconfig -n LAN1 -i 192.168.10.101 -g 192.168.10.254

: netconfig -n LAN1 -EnableDHCP

Alias:

LAN1=PCI\RTCENIC1

LAN2=PCI\RTCENIC2

For example, your development workstation has a LAN port at 192.168.1.5 and the Domain Name

Server (DNS) is at 192.168.2.6. Execute the following command.

\> netconfig –n LAN1 –i 192.168.1.5 –m 255.255.255.0 –g 192.168.1.254 –d

2-4
