DA-681 Series WinCE User’s Manual Software Configuration
4 RS-232 Serial Ports and 8 RS-485 Serial Ports
The 4 RS-232 serial ports of DA-681-CE computer from bottom to top and left to right are
assigned COM port numbers 1 to 4. The 8 RS-485 serial ports are assigned COM port numbers 5
to 12. Each of these ports supports baudrate settings up to 921600 bps.
Accessing Files through File Sharing

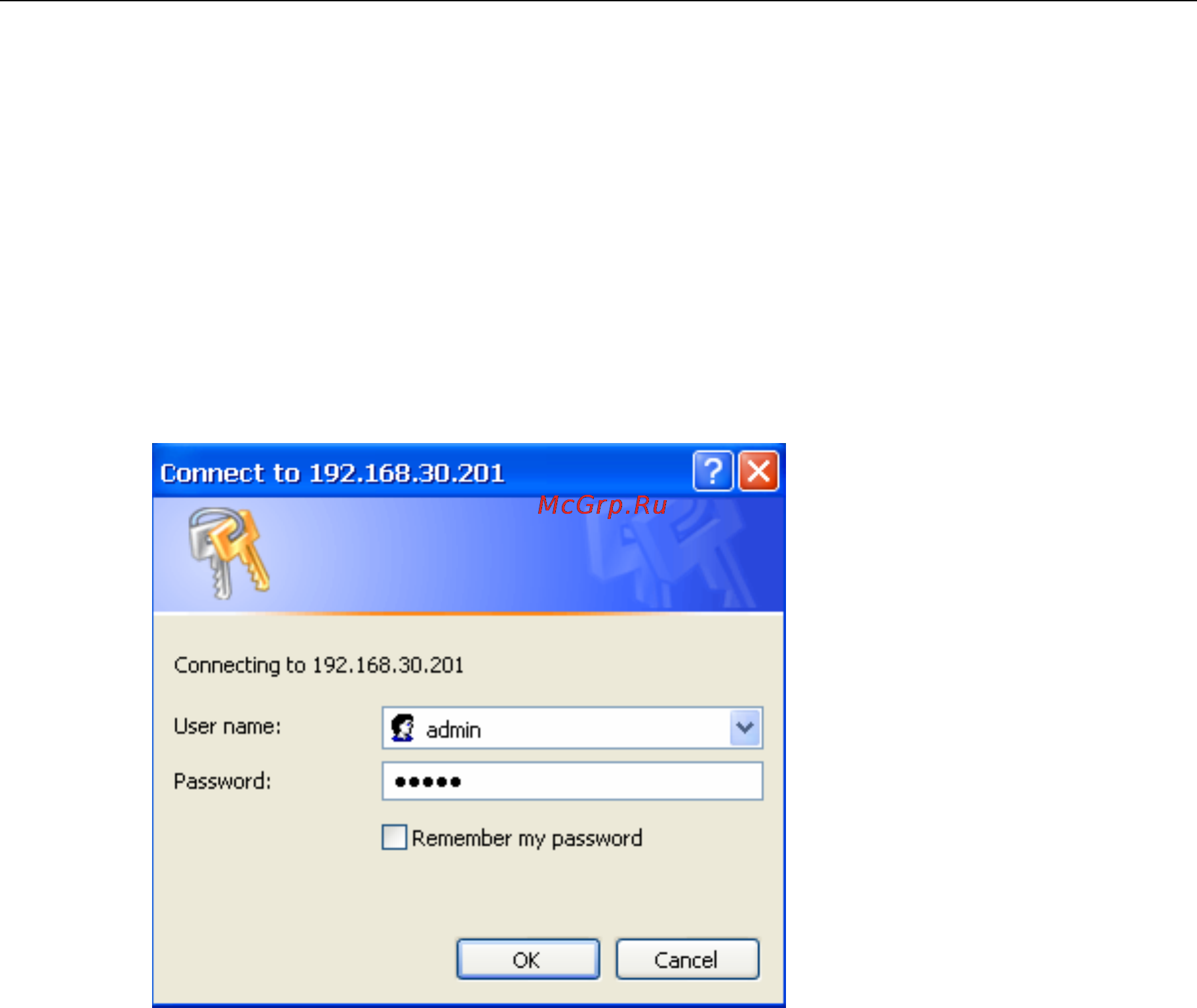

A file server function is provided for transferring files to the DA-681-CE. On PC, Click Start Æ
Run and input \\x.x.x.x to invoke the following login window.
Note: x.x.x.x stands for DA-681-CE’s IP address. After logging in, you will find that a file sharing
folder has been created.
2-17
