UC-8410A Hardware Appearance and Dimensions

2-3

Hardware Block Diagrams

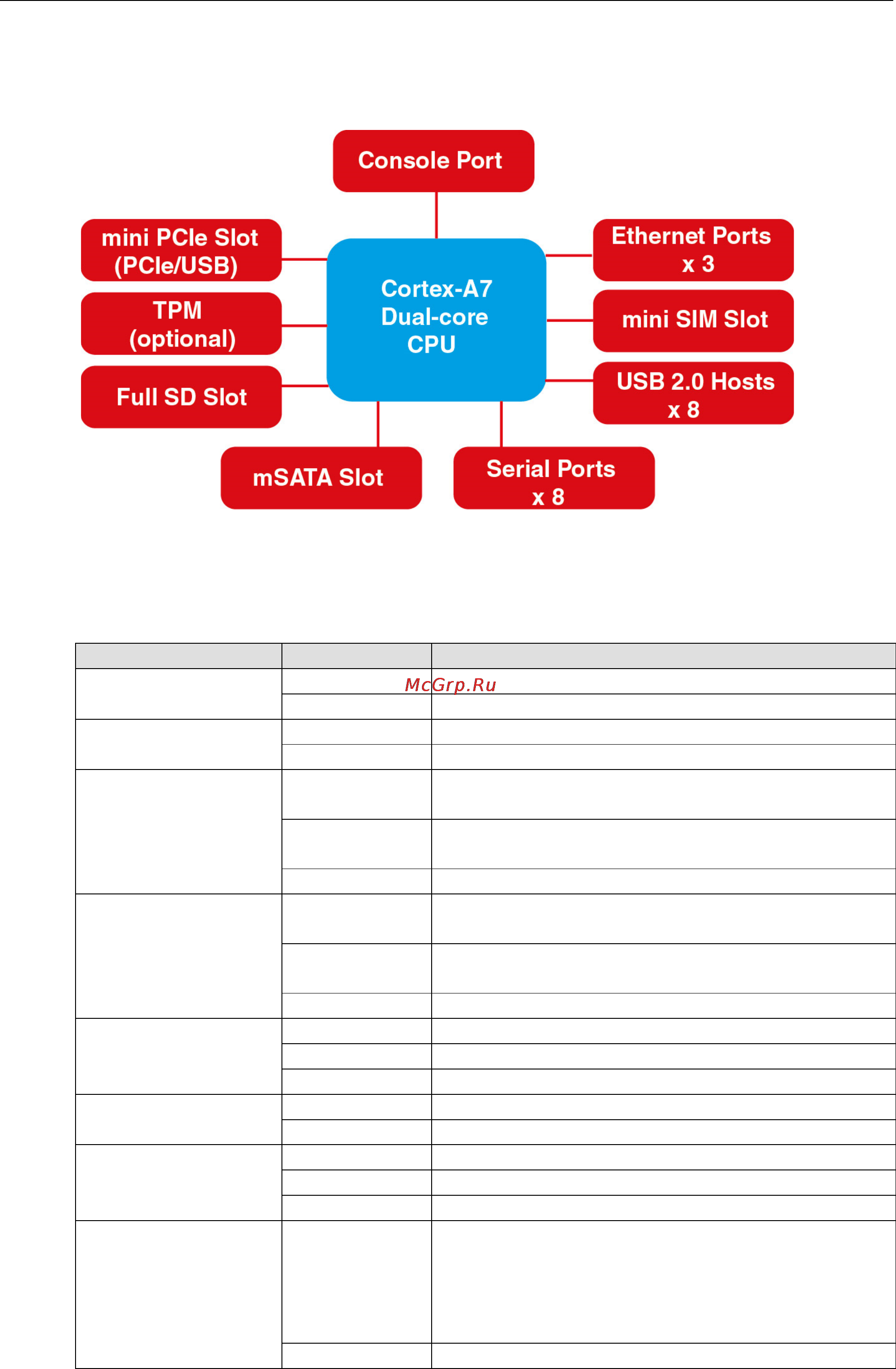

The following block diagram shows the layout of the UC-8410A’s internal components:

LED Indicators

Refer to the following table for information about each LED:

LED Name Status Function

Power Green Power is on

Off No power input or any other power error

Ready Green System is ready

Off OS boot up failure or other system initialization error

WAN Yellow Steady On: 1000 Mbps Ethernet link

Blinking: Data transmission is in progress

Green Steady On: 100 Mbps Ethernet link

Blinking: Data transmission is in progress

Off Speed at 10 Mbps or WAN is not connected

LAN Yellow Steady On: 1000 Mbps Ethernet link

Blinking: Data transmission is in progress

Green Steady On: 100 Mbps Ethernet link

Blinking: Data transmission is in progress

Off Speed at 10 Mbps or LAN is not connected

Serial Green Blinking: Data transmission is in progress

Yellow Blinking: Receiving Data

Off No operation

Storage Yellow Blinking: Access to SD card or mSATA module

Off The SD card or the mSATA module is not accessible.

Programmable Green Programmable

Green Programmable

Wireless Green The number of glowing LEDs indicate the wireless signal

strength as follows:

3 Green: Excellent

2 Green: Good

1 Green: Poor

Off No wireless signal or wireless signal failure
