UC-8410A Hardware Hardware Connection Description
4-8

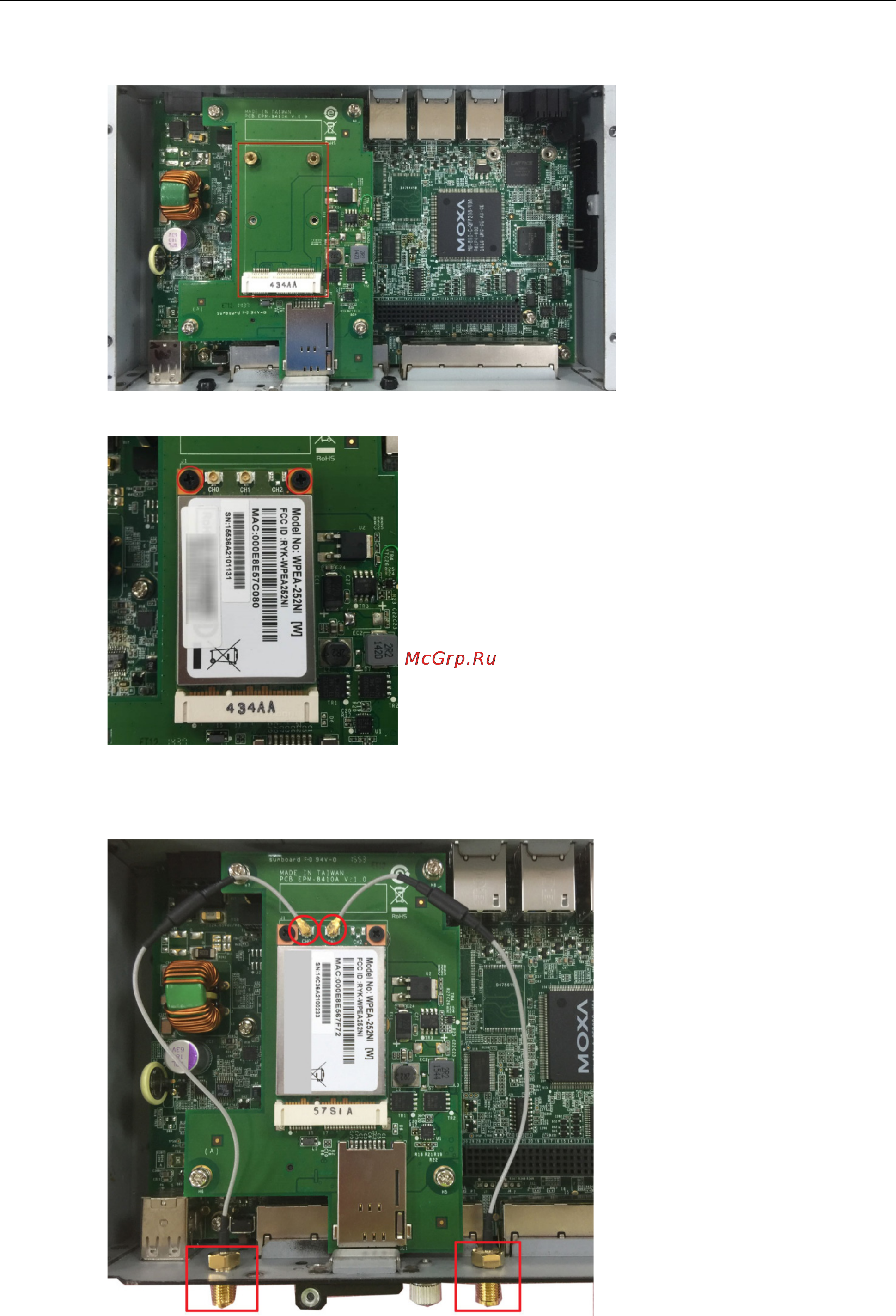

Follow these steps to install the wireless module.
1. Find the location of the module socket.
2. Insert the module in the socket and fasten the two black screws on the module.
3. Attach one end of the Wi-Fi cable on the connector marked CH0, and then connect the other end of the cable
on the W1 hole on the front panel of the computer.Remove the antenna hole protection cover before you do
so.
