Compact/Fanless Computers
Hardware Specifications
UC-8416
UC-8418
Computer
CPU: Intel XScale IXP435, 533 MHz
OS (pre-installed): Linux
DRAM: 256 MB DDR2 SDRAM onboard (512 MB max.)
SRAM: 256 KB, battery backup
Flash:
• 16 MB NOR Flash onboard to store OS (supports up to 32 MB)
• 32 MB NAND Flash onboard to store data
Expansion Bus: PCI/104 onboard
USB: USB 2.0 compliant hosts x 2, type A connector
Storage
Storage Expansion: CompactFlash socket
Ethernet Interface
LAN: 3 auto-sensing 10/100 Mbps ports (RJ45)
Switch Port: 8 10/100 Mbps unmaaged ports (RJ45) (UC-8416)
Magnetic Isolation Protection: 1.5 kV built-in
Serial Interface
Serial Standards: 8 RS-232/422/485 ports, software-selectable (8-pin
RJ45)
Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200,
n, 8, 1)
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction
control) for RS-485
Baudrate: 50 bps to 921.6 Kbps (supports non-standard baudrates;
see user’s manual for details)
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Digital Input
Input Channels: 4 (UC-8410/8416)/12 (UC-8418), source type
Input Voltage: 0 to 30 VDC
Digital Input Levels for Dry Contacts:
• Logic level 0: Close to GND
• Logic level 1: Open
Digital Input Levels for Wet Contacts:
• Logic level 0: +3V max.
• Logic level 1: +10V to +30V (COM to DI)
Connector Type: 10-pin screw terminal block (4 points, COM, GND)
Isolation: 3 kV optical isolation
Digital Output
Output Channels: 4 (UC-8410/8416)/12 (UC-8418), sink type
Output Current: Max. 200 mA per channel
On-state Voltage: 24 VDC nominal, open collector to 30 V
Connector Type: 10-pin screw terminal block (4 points, GND)
Isolation: 3 kV optical isolation
CANbus Communication (UC-8418 only)
Interface: Dual optically isolated CAN2.0A/2.0B compliant ports
CAN Controller: Phillips SJA1000T
Signals: CAN-H, CAN-L
Isolation: 2 kV digital isolation
Speed: 10 Kbps to 1 Mbps
Connector Type: DB9 male
LEDs
System: Power, Ready, Storage, Battery for SRAM
LAN: 10M/Link x 2, 100M/Link x 2 (on connector)
Serial: TxD x 8, RxD x 8
Reset Button: Supports “Reset to Factory Default”
Physical Characteristics
Housing: SECC sheet metal (1 mm)
Weight:
• UC-8410: 850 g
• UC-8416/8418: 1 kg

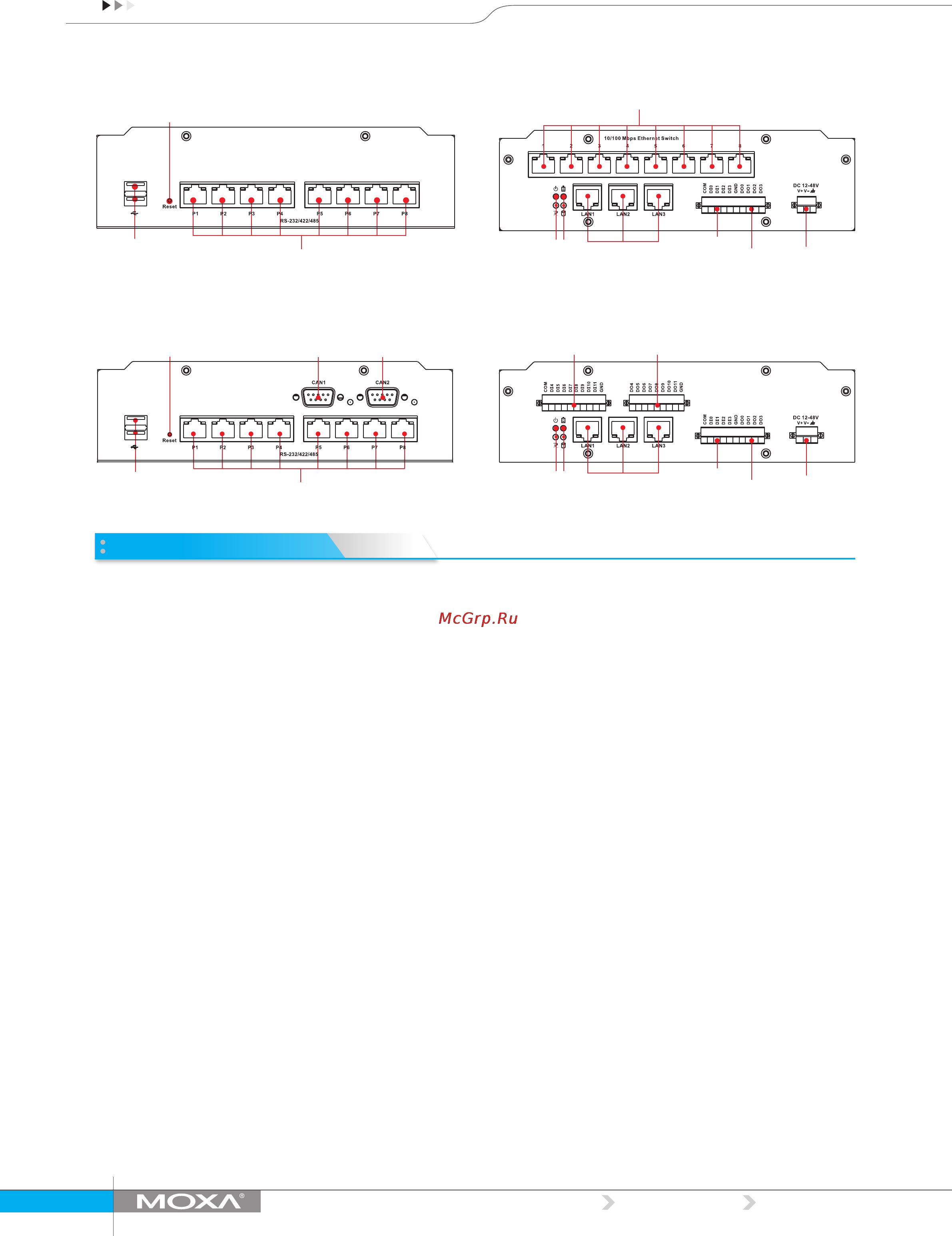

Serial Port x 8, RJ45
(RS-232/422/485)
USB 2.0 Host x 2
Reset Button
10/100 Mbps
Ethernet x 3
DO Channel x 4
Power Input
12 to 48 VDC
LED Indicators
(Power, SRAM Battery,
Ready, Storage)
DI Channel x 4
10/100 Mbps Ethernet Switch Port x 8
Serial Port x 8, RJ45
(RS-232/422/485)
USB 2.0 Host x 2
Reset Button CANbus Port x 2 DB9
10/100 Mbps
Ethernet x 3
DO Channel x 4
Power Input
12 to 48 VDC
LED Indicators
(Power, SRAM Battery,
Ready, Storage)
DI Channel x 4
DI Channel x 8 DO Channels x 8
