UC-8400 WinCE Web-based Management System

4-3

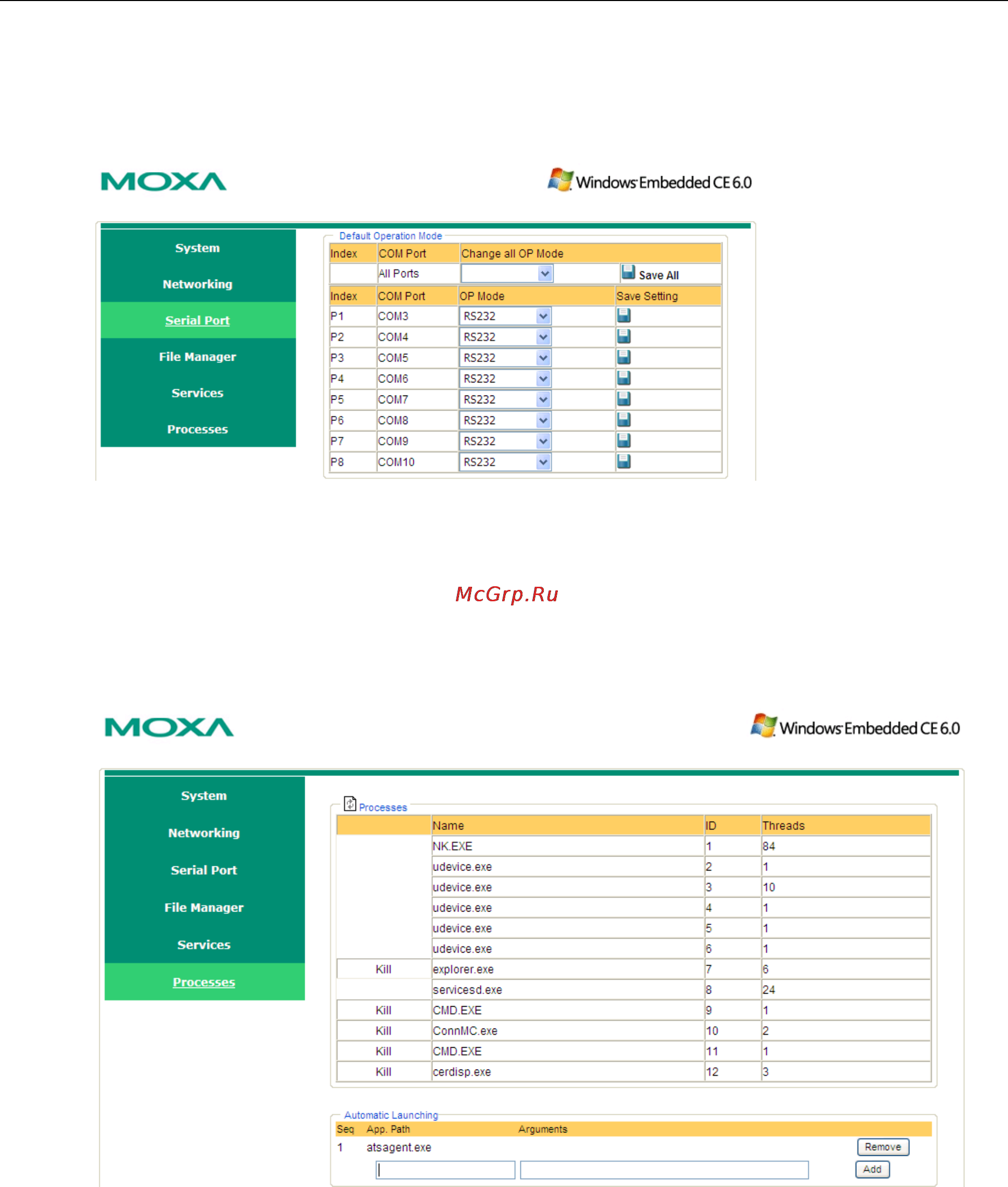

Serial Port Configuration

The UC-8410/8416/8418/8430-CE have 8 x MU860 high-performance serial ports. When the system starts up

you can specify the default operation mode (RS-232, RS-422 or RS-485). The default mode would be RS-232.

Process (Thread) Monitoring/Control

At runtime, the UC-8410/8416/8418/8430-CE computers can manage up to 32 applications. You can use the

management system to monitor and control them. To view current processes, please click the Processes item

on the main menu bar. The running processes are then displayed. You can kill a process by clicking the “kill”

button next to the process name.

Launching Processes Automatically

To have your application start on boot, do the following:

Step 1: Click the “Processes” item on the main menu bar. At the lower part of the page, there is an area

marked as “Automatic Launching”.

Step 2: Fill in the full path of the application in the first text field and its arguments in a separate text field if

there are any.

Step 3: Click “Add”.
