UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-9

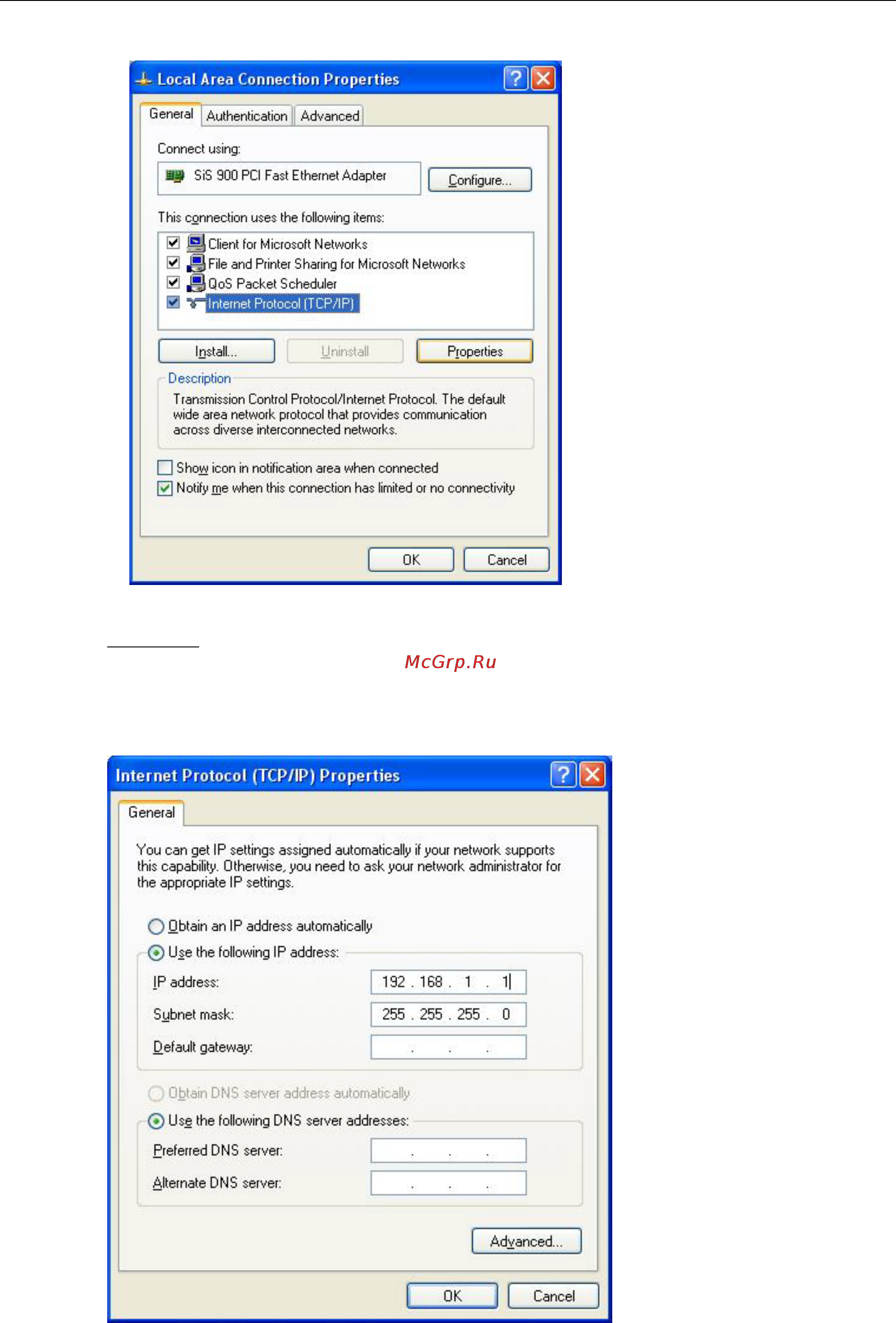

c. Click the General tab and select Internet Protocol (TCP/IP), and then click on Properties.
d. Next, select Use the following IP address and enter the IP address and Subnet mask.
For example:
IP address: 192.168.1.1 (This IP address is only an example; you may assign any IP address of your
choice as long as it’s on the same LAN as your PC.)
Subnet mask: 255.255.255.0
