UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-11

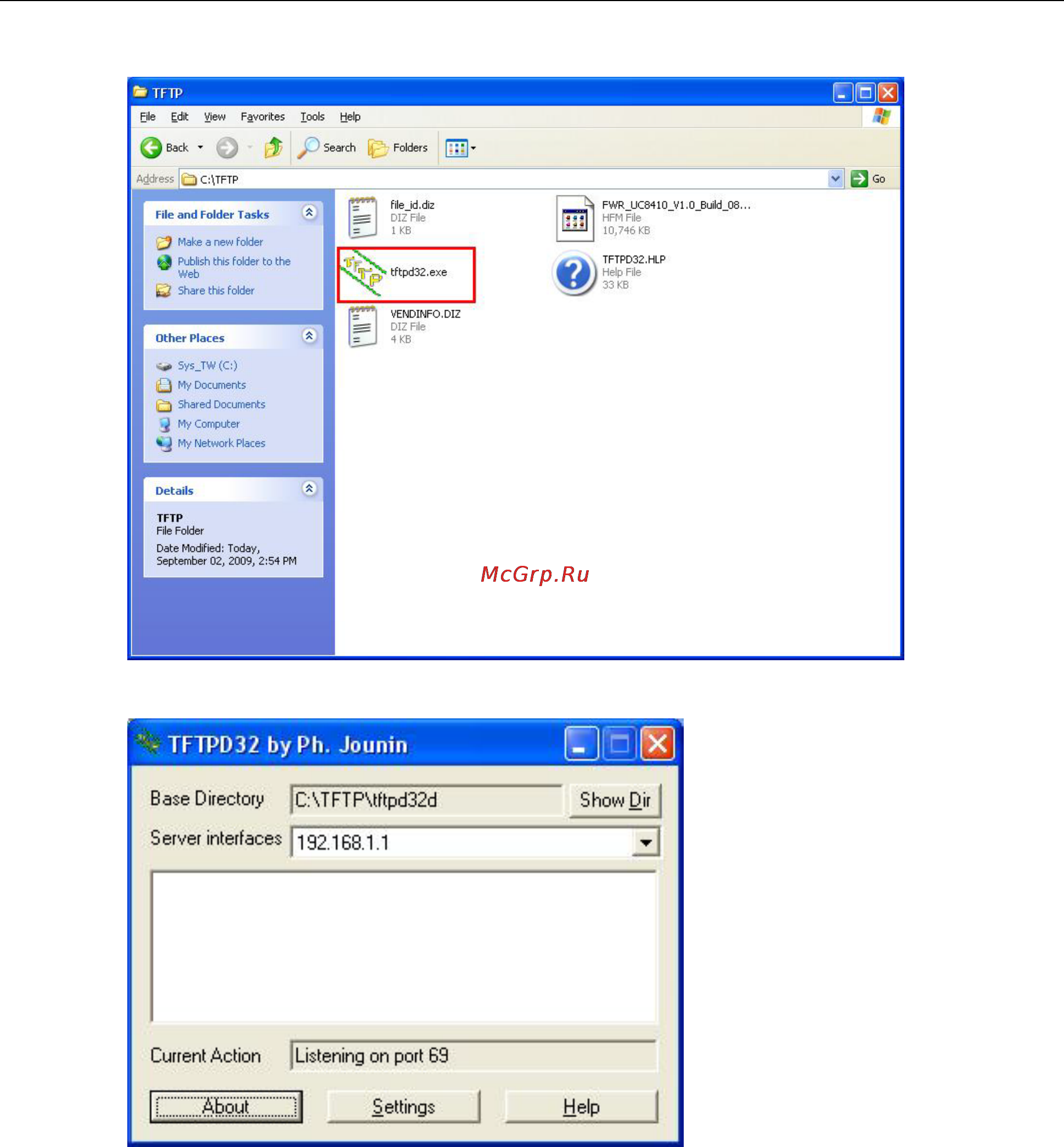

5. To start the TFPF server, double-click on the tftpd32 icon to launch the TFTP server.
6. When the TFTP server has been launched, the following screen will appear.
