IA260 Hardware User’s Manual Hardware Introduction

Wall Mounting (optional)

For some applications, you will find it convenient to mount the IA260 on the wall, as depicted in

the following illustrations.

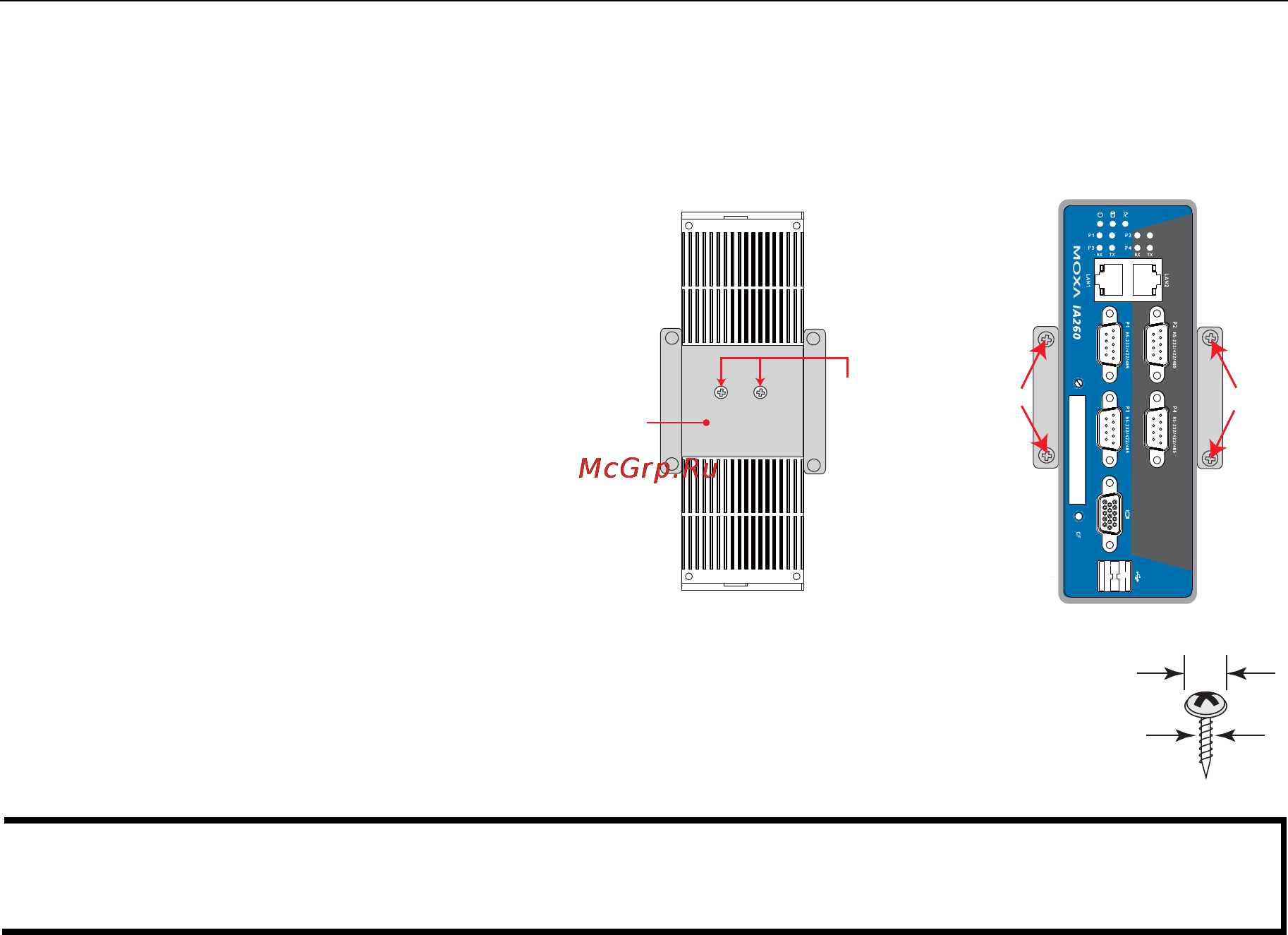

STEP 1:

Attach the wallmount kit to the

IA260’s rear panel with 2

screws.

Wallmount Kit

Screws

⇒

Screws

STEP 2:

Mounting the IA260 on the wall requires 4 screws. Use the switch, with wall

mount plates attached, as a guide to mark the correct locations of the 4 screws.

The heads of the screws should be less than 6.0 mm in diameter, and the shafts

should be less than 3.5 mm in diameter, as shown in the figure at the right.

6.0 mm

3.5 mm

NOTE

Before tightening the screws into the wall, make sure the screw head and shank size are suitable

by inserting the screw into one of the keyhole-shaped apertures of the Wall Mounting Plates.

2-6
