ment MIDI In.

The Merge 2 x 2 has a built-in “Panic Button” which will

send “all notes off” messages and zero all MIDI con-

trollers and pitch wheels. This feature is activated by

powering down the Merge 2 x 2 and then powering it

back up again. This can be done either by turning off

the power of both instruments connected to the 2 x 2’s

MIDI Ins and then turning them on again, or by discon-

necting and then reconnecting both MIDI cables

plugged into the Merge 2 x 2’s MIDI Ins. IMPORTANT:

When powering down the Merge 2x2 in this fashion

make sure power remains off for at least 5 seconds

Merge 2x2

2 IN/2 OUT MIDI MERGE BOX

POWER

9VDC

MIDI OUT

MIDI IN

To Various Instruments’ MIDI Ins

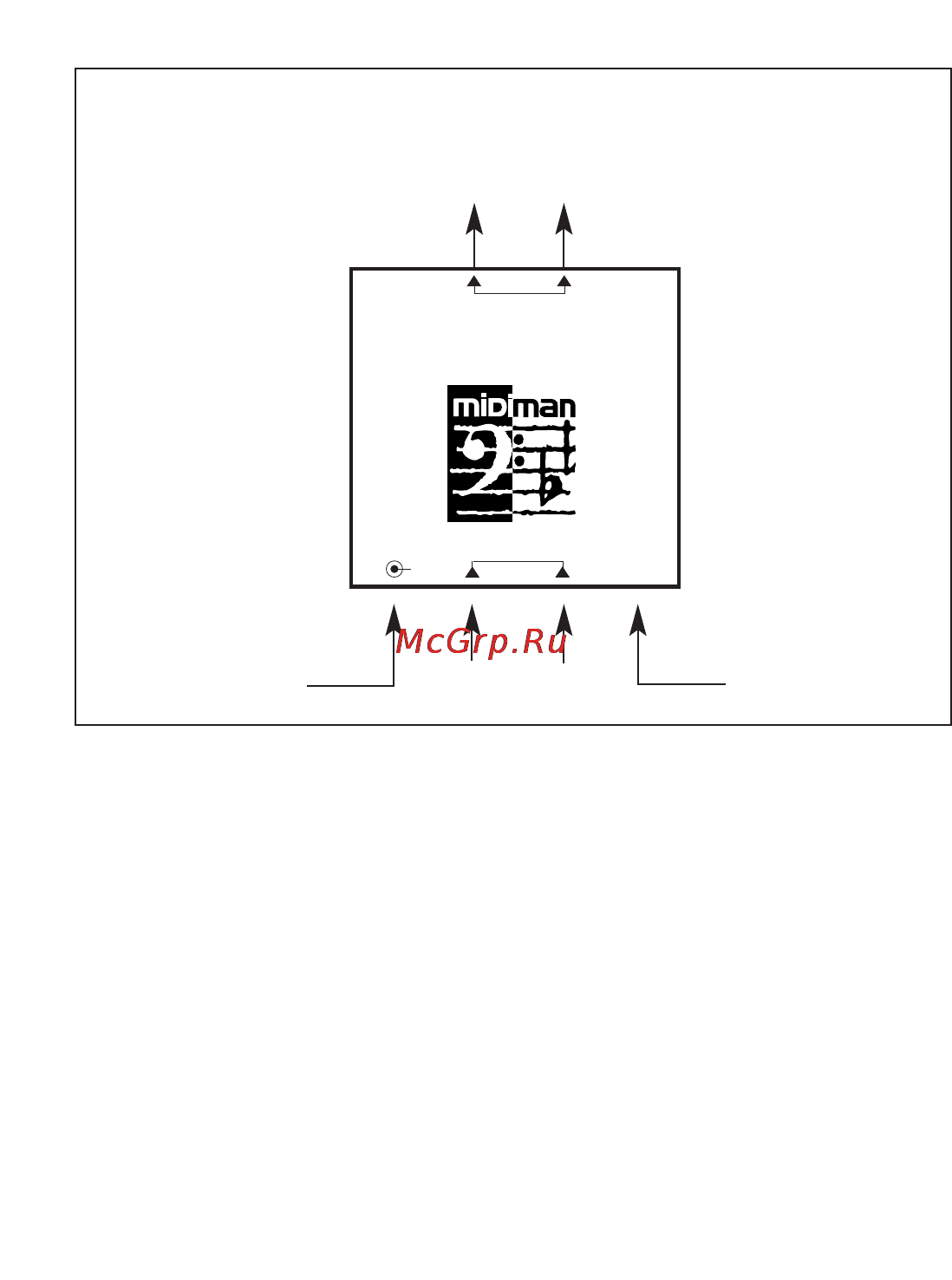

Merge 2x2 Hook-Up Diagram

Optional Power

From MIDI Outs

LED Indicator
