V2406/2422/2426 Hardware Manual Hardware Connection Description
3-2

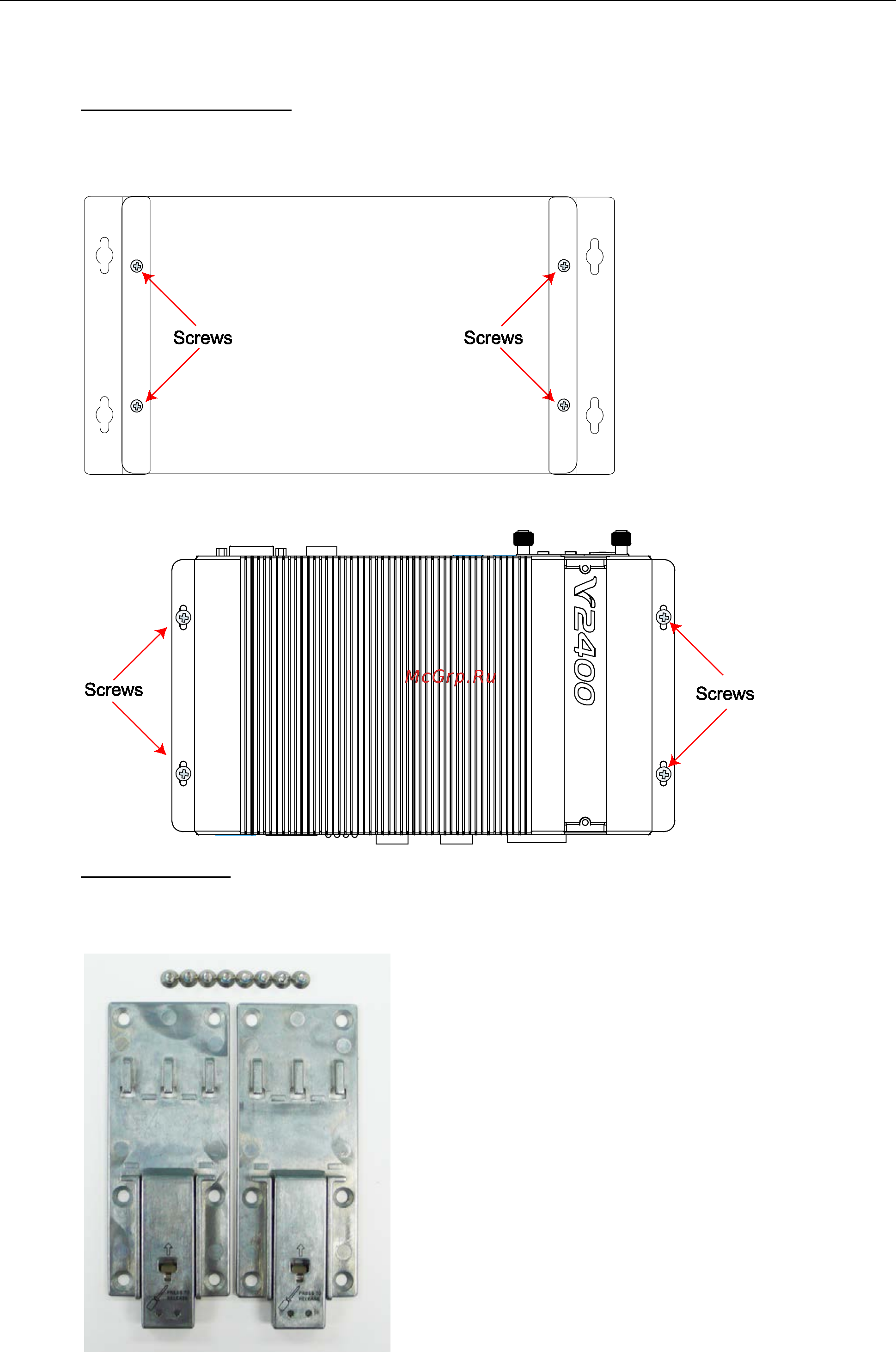

Installing the V2406/2422/2426
Wall or Cabinet Mounting
The V2406/2422/2426 comes with two metal brackets for attaching it to a wall or the inside of a cabinet.
Step 1: Use two screws for each bracket and attach the bracket to the rear of the V2406/2422/2426.
Step 2: Use two screws per side to attach the V2406/2422/2426 to a wall or cabinet.
Din-Rail Mounting
The V2406/2422/2426 can be installed on a DIN-rail with the optional DIN-rail kit. This DIN-rail kit must be
purchased separately. It includes two DIN-rail brackets and eight screws.
