V2406/2422/2426 Hardware Manual Hardware Connection Description
3-16

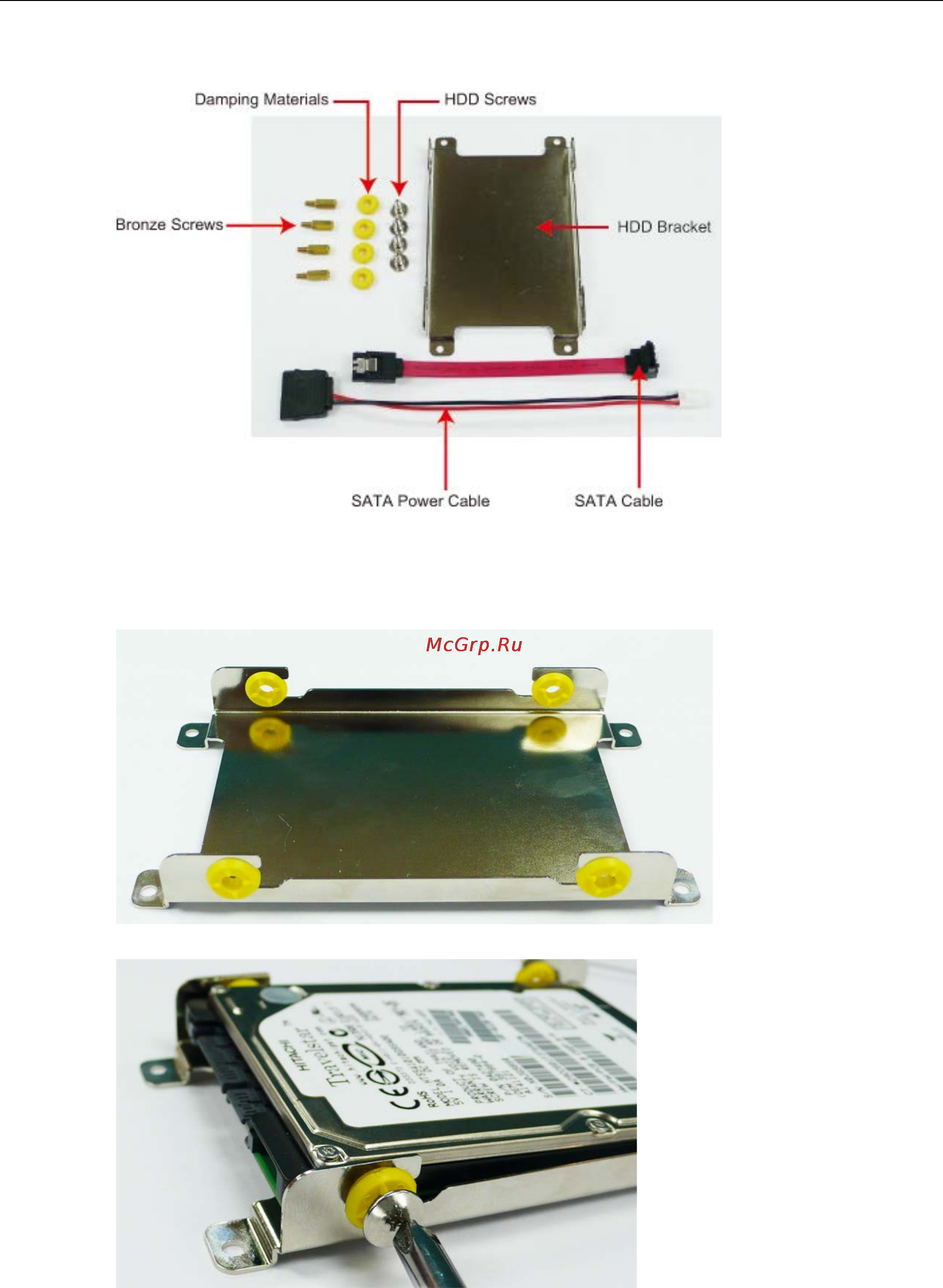

3. Unpack the HDD bracket package. This package is not included in the product, and should be purchased
separately. Check the items in the following figure:
The HDD package includes an HDD bracket, four HDD screws, for damping materials, four bronze screws,
one SATA power cable and one SATA cable.
4. Place the four yellow damping materials into the slide of the bracket. Each side needs two damping
materials.
5. Place the hard drive disk on the bracket, and then use the screws to fasten.
