V2406/2422/2426 Hardware Manual Hardware Connection Description

3-6

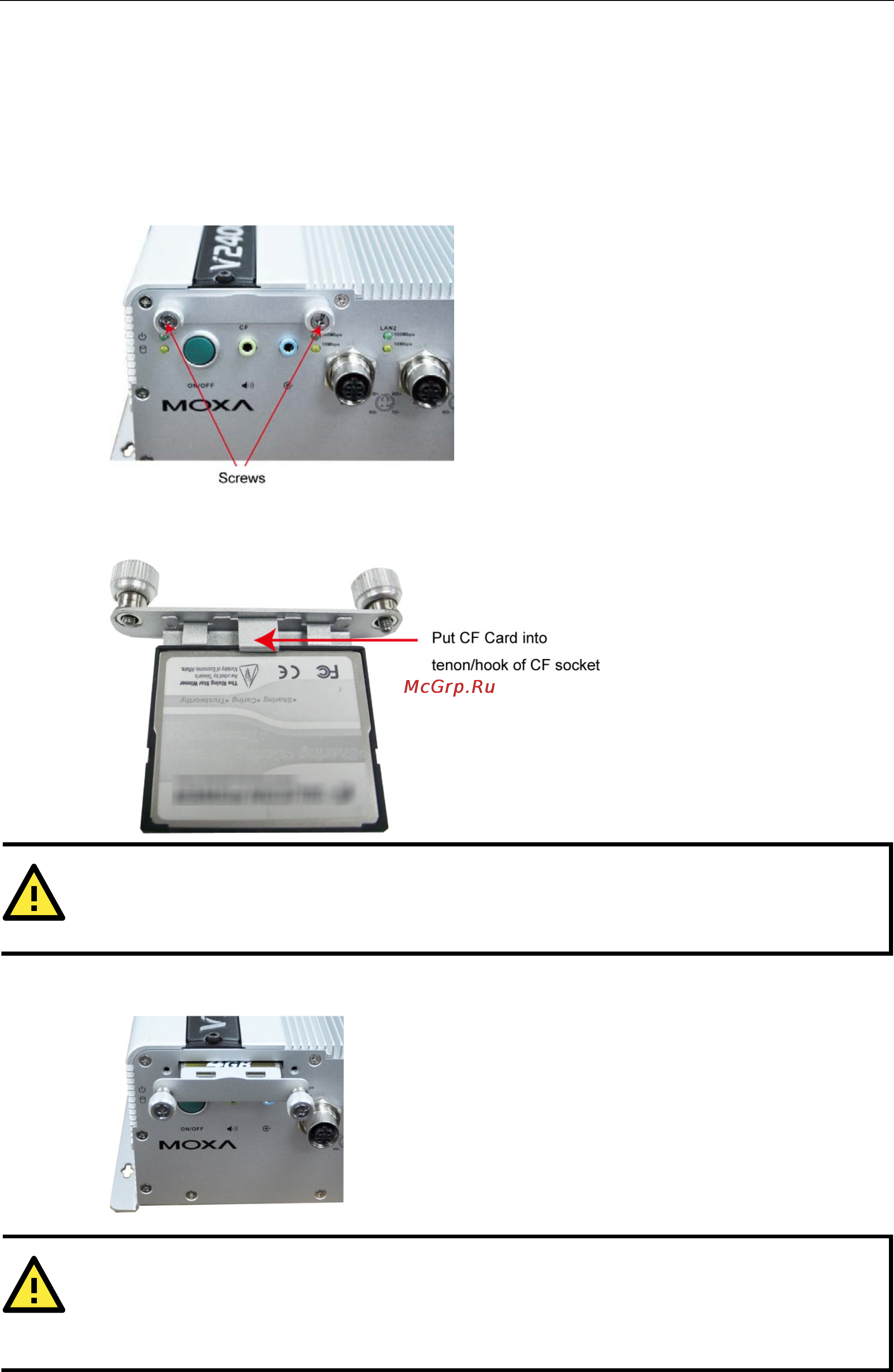

Installing a CompactFlash Card

The V2406/2422/2426 embedded computers come with a CompactFlash socket. To insert a CompactFlash card,

follow these instructions:

1. Disconnect the V2406/2422/2426 from its power source.

2. The CompactFlash socket is located on the left side of the front panel. Unscrew the CompactFlash socket

cover.

3. There is a tenon/hook on the cover of the CF socket. Turn the CompactFlash card over and then insert the

CompactFlash card into the tenon/hook of the CF socket cover.

ATTENTION

Be careful of how you orient the CompactFlash card. You should turn the CF card bottom side up, in order to

hook CF card into the CF socket cover.

4. Gently insert the CompactFlash card into the CF socket, making sure that the card is oriented correctly.

ATTENTION

The

V2406/2422/2426 embedded computer does not support the CompactFlash hot swap and PnP (Plug and

Play) functions. It is necessary to remove power source first before inserting or removing the CompactFlash

card.
