EXPC-1319 Series Hardware Introduction

1-7

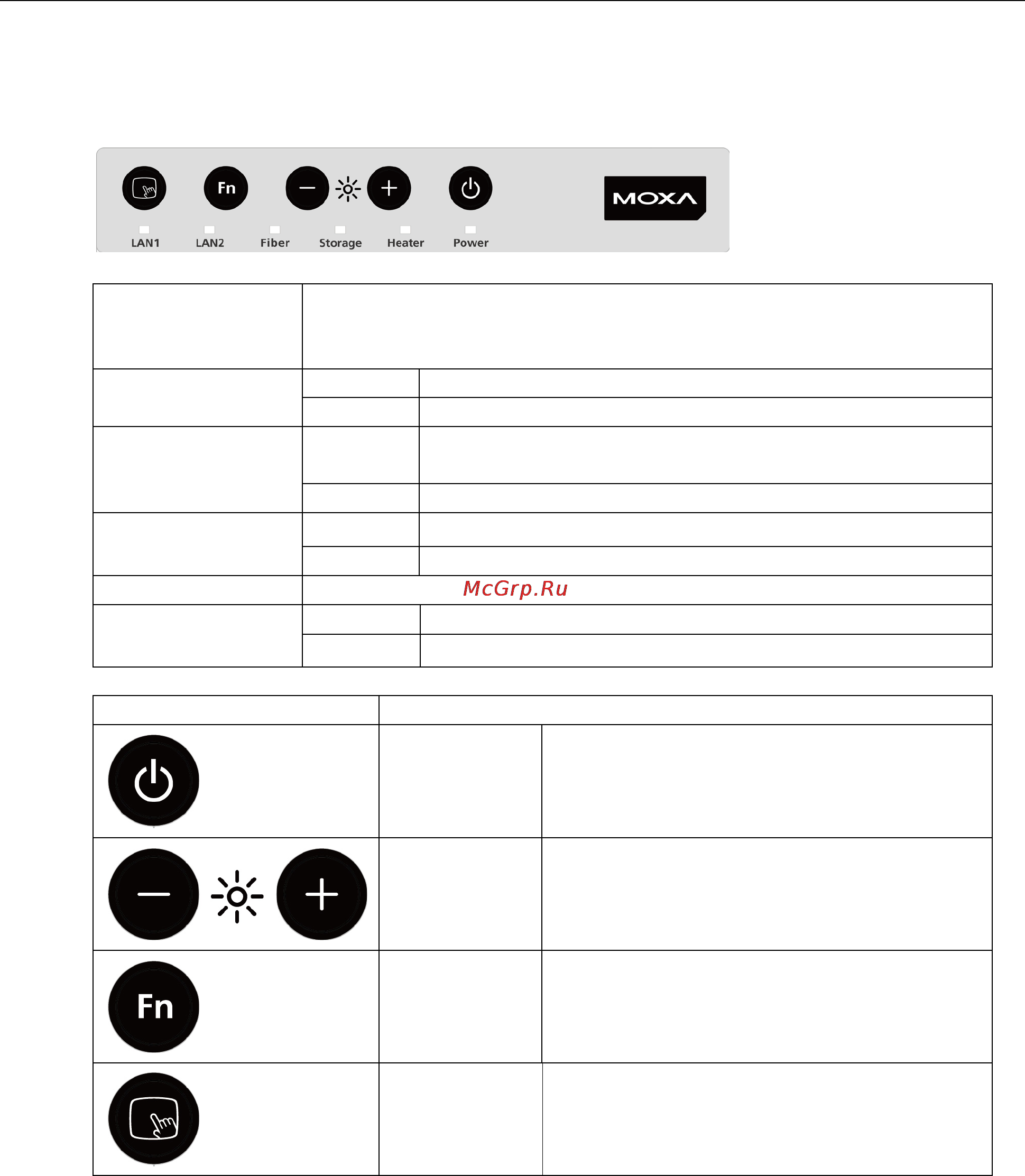

LED Indicators and Buttons

The EXPC-1319 comes with six LED indicators and five control buttons on the bottom of the front panel.

LED Indicators Function

Power On Power is on.

Off Power is off.

Heater On Heater is working. (Note that this function will be enabled when

below -20˚C)

Off Heater is not working.

Storage Blinking Storage (SSD or CF) is accessing.

Off Storage (SSD and CF) is not accessing.

Fiber Reserved for optional function

LAN1 & LAN 2 On Network is transmitting or receiving data.

Off Network is not transmitting or receiving data.

Control Buttons Function

Power Press to turn on the computer. Press again to turn

off the computer.

Brightness Press + button to increase the brightness of the

panel. Press – button to decrease the brightness of

the panel.

Function Customizable function key, can be configured by

the utility. The default value will enable a virtual

keyboard function. Refer to Software User’s

Manual for configuration details.

Touch screen Touch to enable the touch screen function

(default). Touch again to disable.

LCD Panel and Touch screen

The EXPC-1319 comes with 1000 nits TFT LCD panel with touch screen bonding.

The 1000 nits TFT LCD panel means the panel’s brightness at its central point is 1000 cd/m

. Due to the

characteristics of liquid crystal in TFT LCD panels, even though the EXPC-1319 will work properly between -20

and 60˚C (-40 to 60˚C with Intelligent Heating Solution), to extend the panel’s life Moxa recommends

maintaining the working temperature between 0 and 50˚C whenever possible. Some areas on the LCD panel

might distort some colors to black at extremely high temperatures, or respond sluggishly at extremely low

temperatures.

The touch screen used on the EXPC-1319 includes hardened resistive glass-film-glass single point touch screen

(STS) or a capacitive type multipoint touch screen (MTS). Different touch screen technologies allow different
