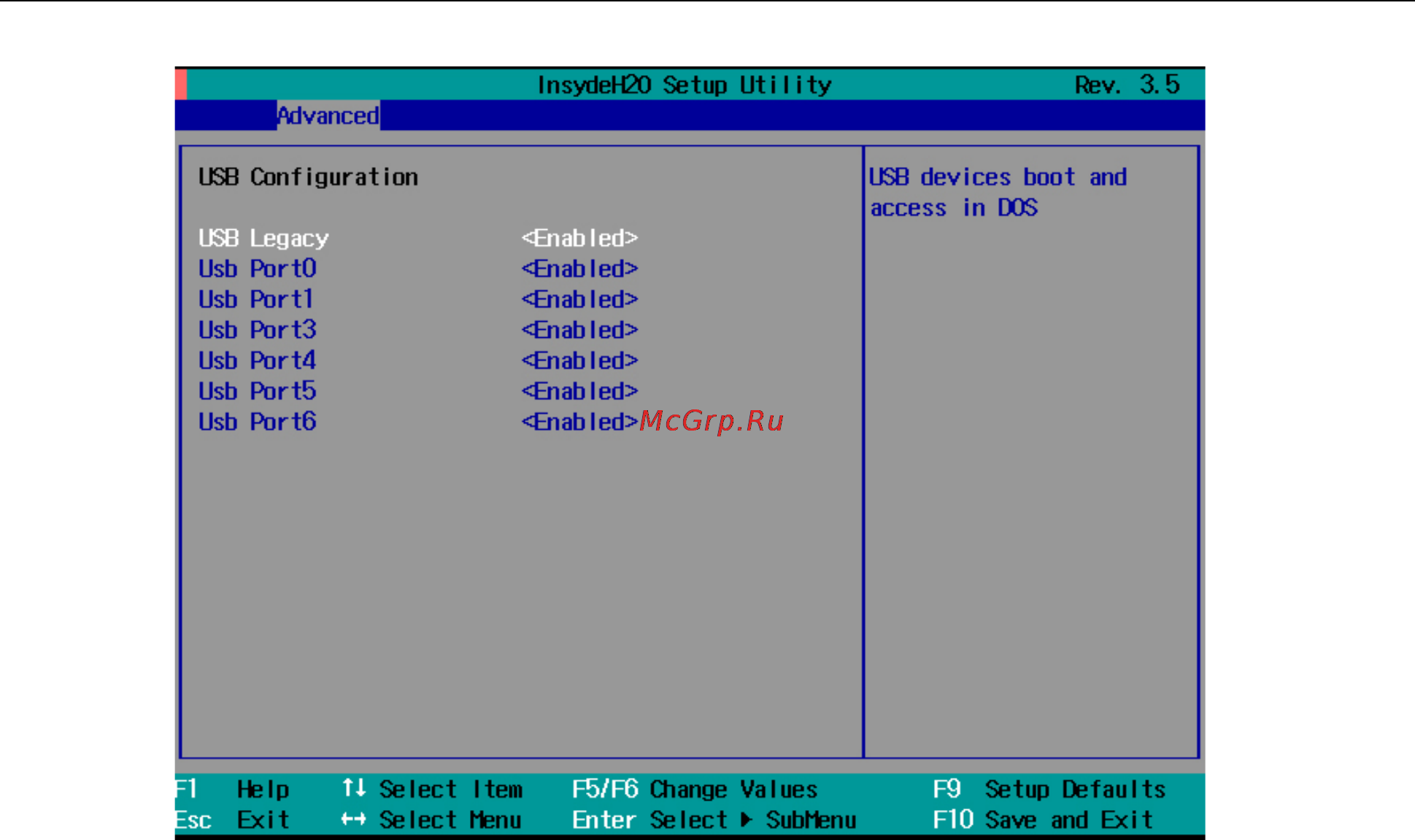

EXPC-1319 Series Hardware BIOS Setup
3-7
USB Port0
This item allows you to configure the USB Port 1.
Options: Enabled (default), Disabled
USB Port1
This item allows you to configure the USB Port 2.
Options: Enabled (default), Disabled
USB Port3-Port6
This item allows you to configure the USB Port 3 to 6. These ports are reserved on the main board.
Options: Enabled (default), Disabled
Note: Please note that USB Port 2 is reserved for touch panel function. Default value is Enabled.
