EXPC-1319 Series Hardware Hardware Installation

2-4

NOTE

To make sure the panel computer will

be securely installed on the yoke, use M4 screws. The screw holes

penetrate 8 mm into the

computer’s case.

When choosing screws for installation, remember to account for the

thickness of the mounting surface.

Refer to Appendix B: Statement of Regulatory Approval for the

technical

details regarding regulation Class 1 Div. 2 devices.

Panel Mounting

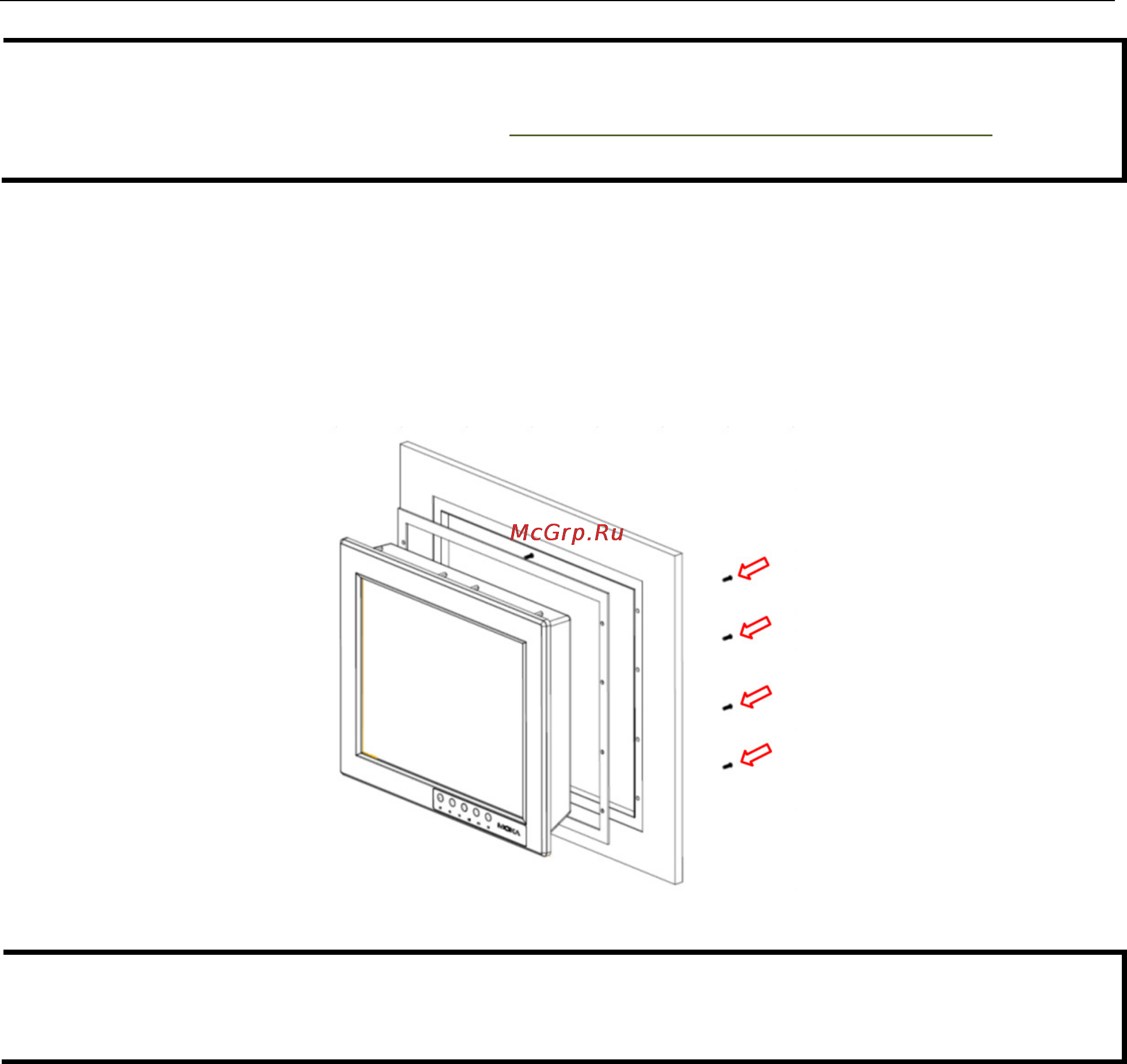

Follow these steps to install the EXPC-1319 on a panel cabinet.

1. Place the gasket between the EXPC-1319 and the enclosure, and use eight M6 screws to penetrate the

enclosure and gasket, so that the gasket can be securely fasten on two sides of the panel mounting holes

on the back of the EXPC-1319.

NOTE

To make sure the panel computer will

remain securely installed in the cabinet, use M6 screws of a suitable

length

. The screw holes penetrate 6 mm into the computer’s case. When choosing screws for installation,

remember to account for the thickness of the mounting surface.

2. Install the mounting brackets from inner part of the computer, and use M4 screws to fasten the brackets.

Four screws are required per side.
