EXPC-1319 Series Hardware BIOS Setup
3-3
Modifying BIOS Settings
Navigate the BIOS menus using the arrow keys; up (↑) and down (↓) arrows navigate the menu, while left (←)
and right (→) arrows will open or close sub-menus from entries marked with a triangle (▲) at the beginning of
the line.
Advanced Settings

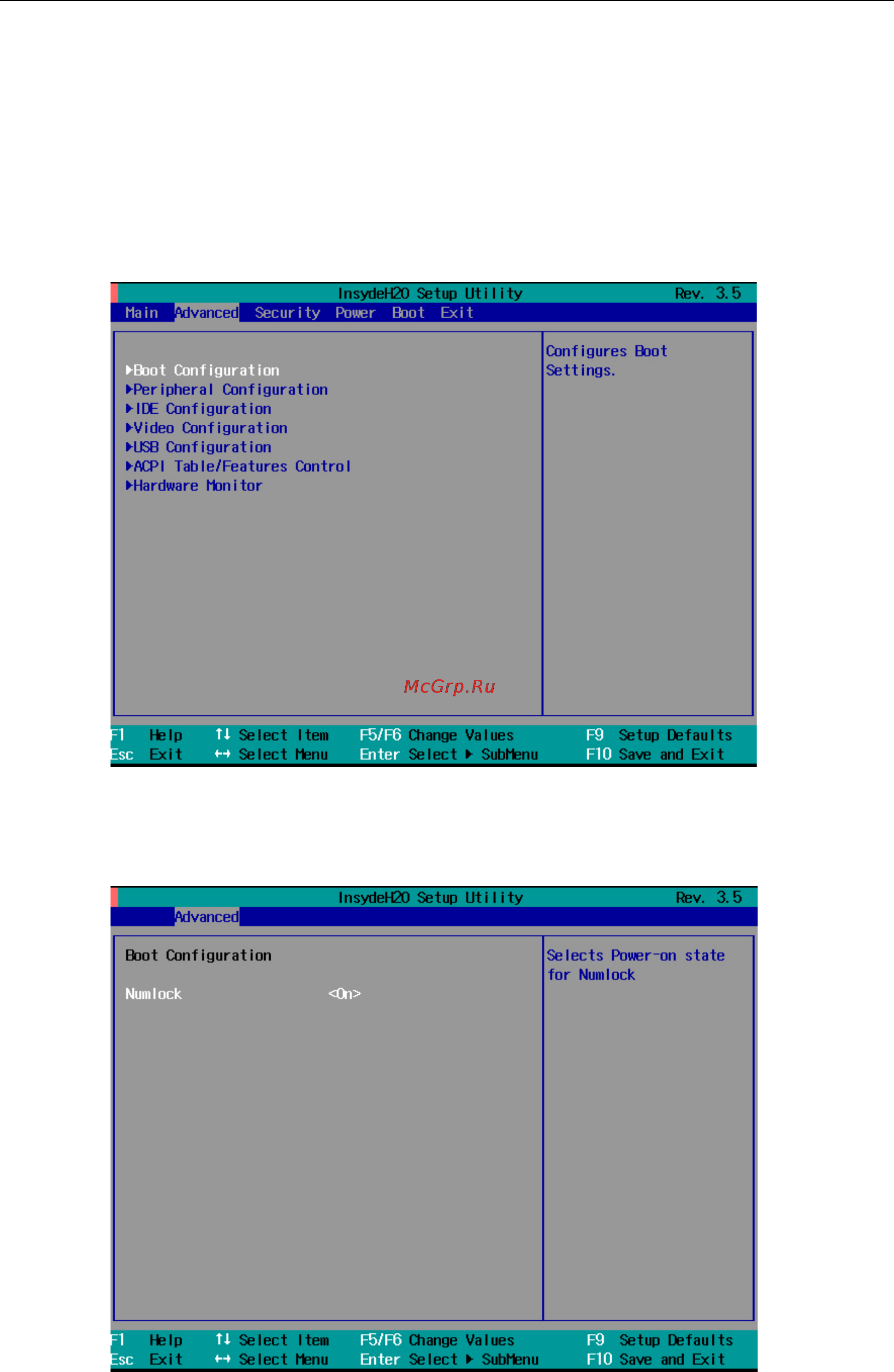

The Advanced Features screen will appear when choosing the Advanced item from the main menu.
Boot Configuration
This item allows users to toggle the number pad into “on” or “off” when first booting up.
