MC-5150-AC/DC Hardware Connection Description
3-9

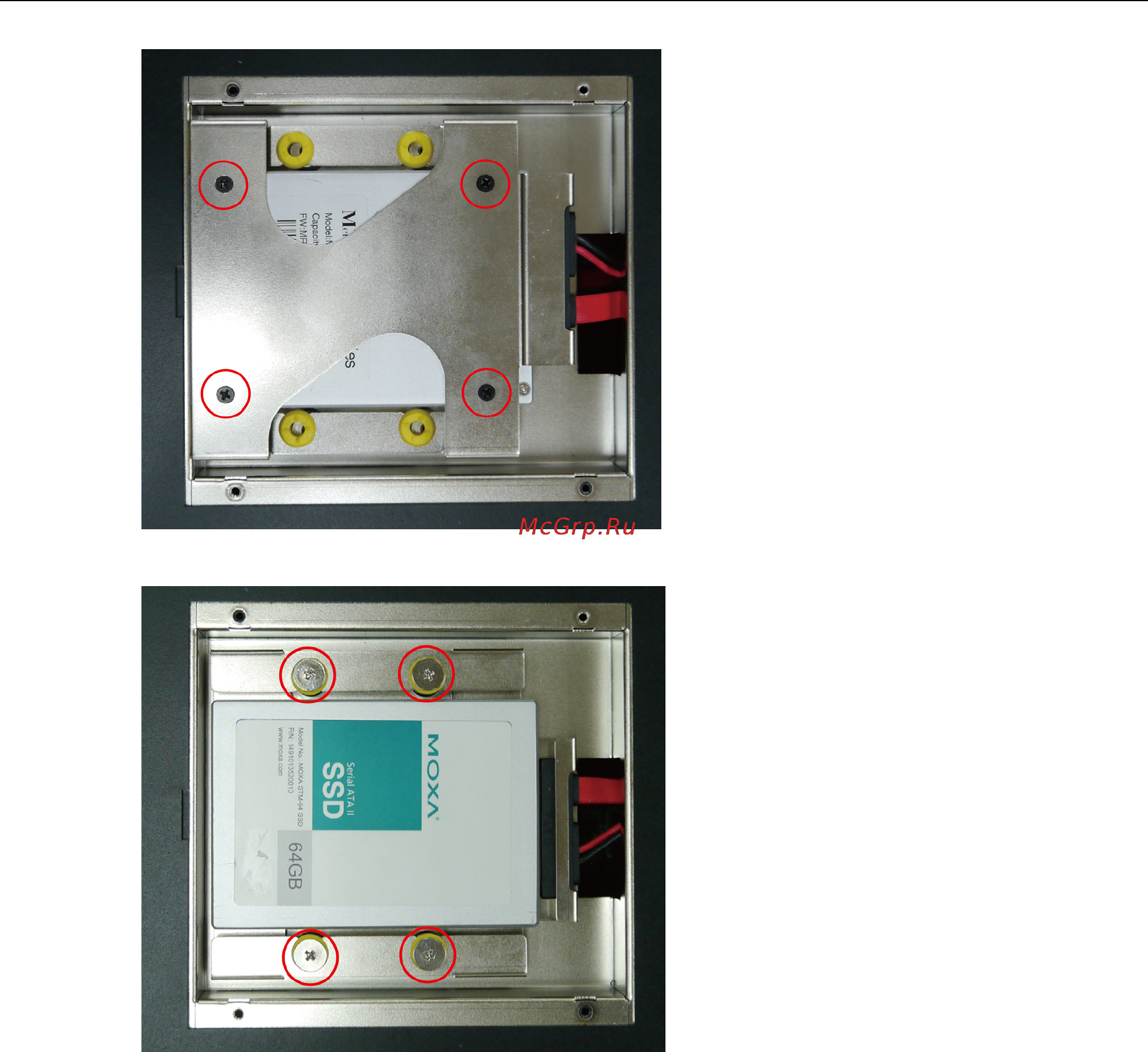

4. Fasten the four screws on the front of the kit.
5. Remember to replace the hard drive cover on the computer to complete the installation.
Installing the PCI Card
The MC-5157-AC/DC has two universal PCI slots for installing various peripheral cards, such as radar card or
Profitbus card. See the following steps to install the PCI card.
1. Remove all screws on the back cover of the computer.
